Rack
Slides
Installing the HP 3235
60
FLANGE
~~~
7 I I
FLATHEAD CUPPED FINISH
SCREW
WASHER WASHER
)HEETMETAL
NUT
RACK
UPRIGHT
3230lN F. 22:

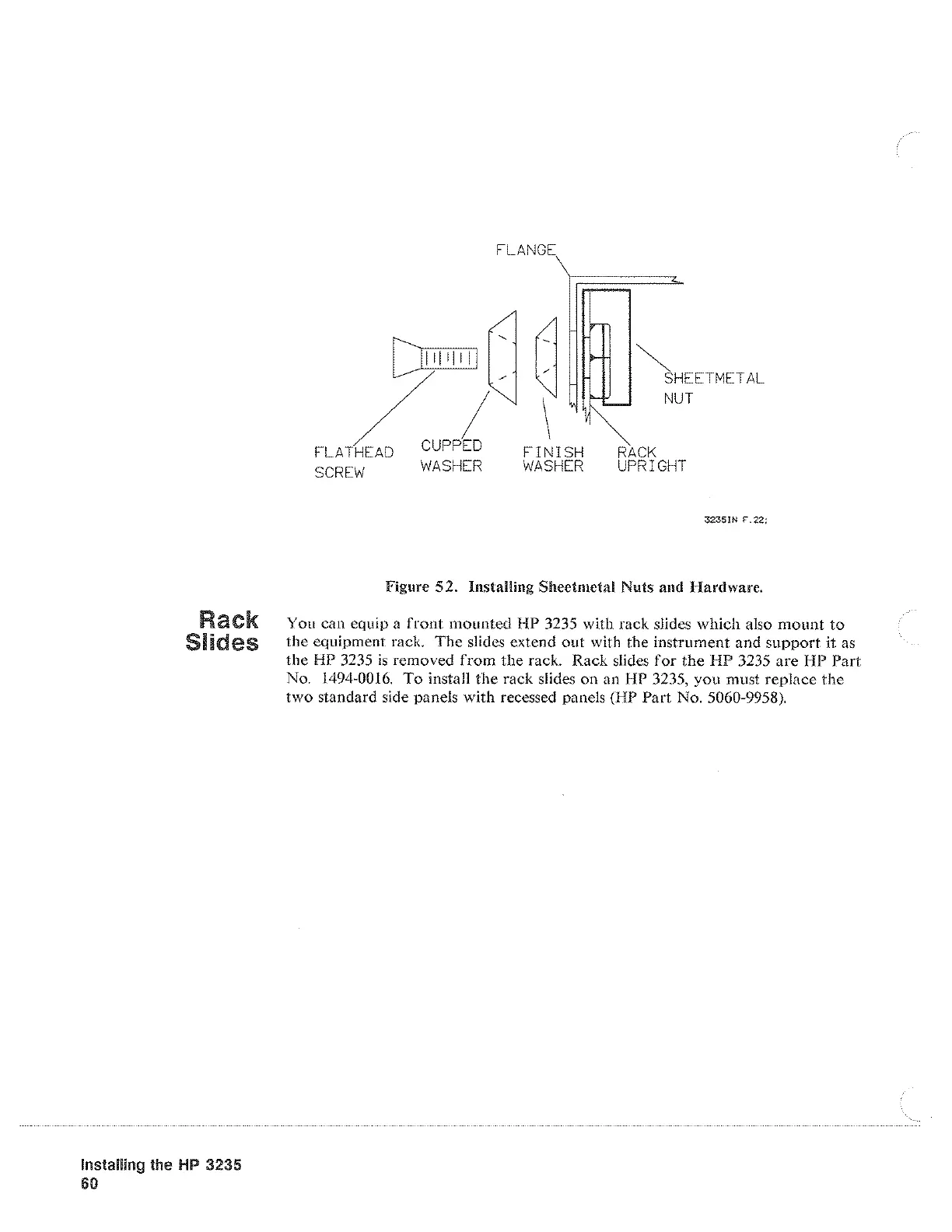

Figure 52. Installing Sheetmetal Nuts and Hanlware.
You can equip a front mounted HP 3235 with rack slides which also mount to
the equipment rack. The slides extend out: with the instrument and support it as
the HP 3235 is removed from the rack. Rack slides for the HP 3235 are HP Part
No. 1494-0016. To install the rack slides on an HP 3235, you must replace the
two standard side panels with recessed panels (HP Part No. 5060-9958).
