Installing the Quick Interconnect Fixture
Installing the HP 3235
48
The Quick Interconnect Fixture (QTF) is accessory HP 34591 and is used with a
quick interconnect mechanism
on the user side of the frame (option 590). The
QIF can also be used with accessory HP 34592, Wire Distribution Frame. Figure
39 shows a
frame with a quick interconnect mechanism, a QIF, and terminal
blocks. Accessory
HP 34592, Wire Distribution Frame is shown in Figure 56.
This section gives you procedures to do the following:
• Install terminal blocks in the QIF
• Mount the QIF on the quick interconnect mechanism
• Operate the mechanism to engage the fixture to the module connectors
• Build OUT fixtures that can be installed on a QIF
TERMINAL
BLOCK
MAINFRAME WITH
...,.------CONTROL PANEL
OPTION 590
/QUICK INTERCONNECT
/ MECHANISM

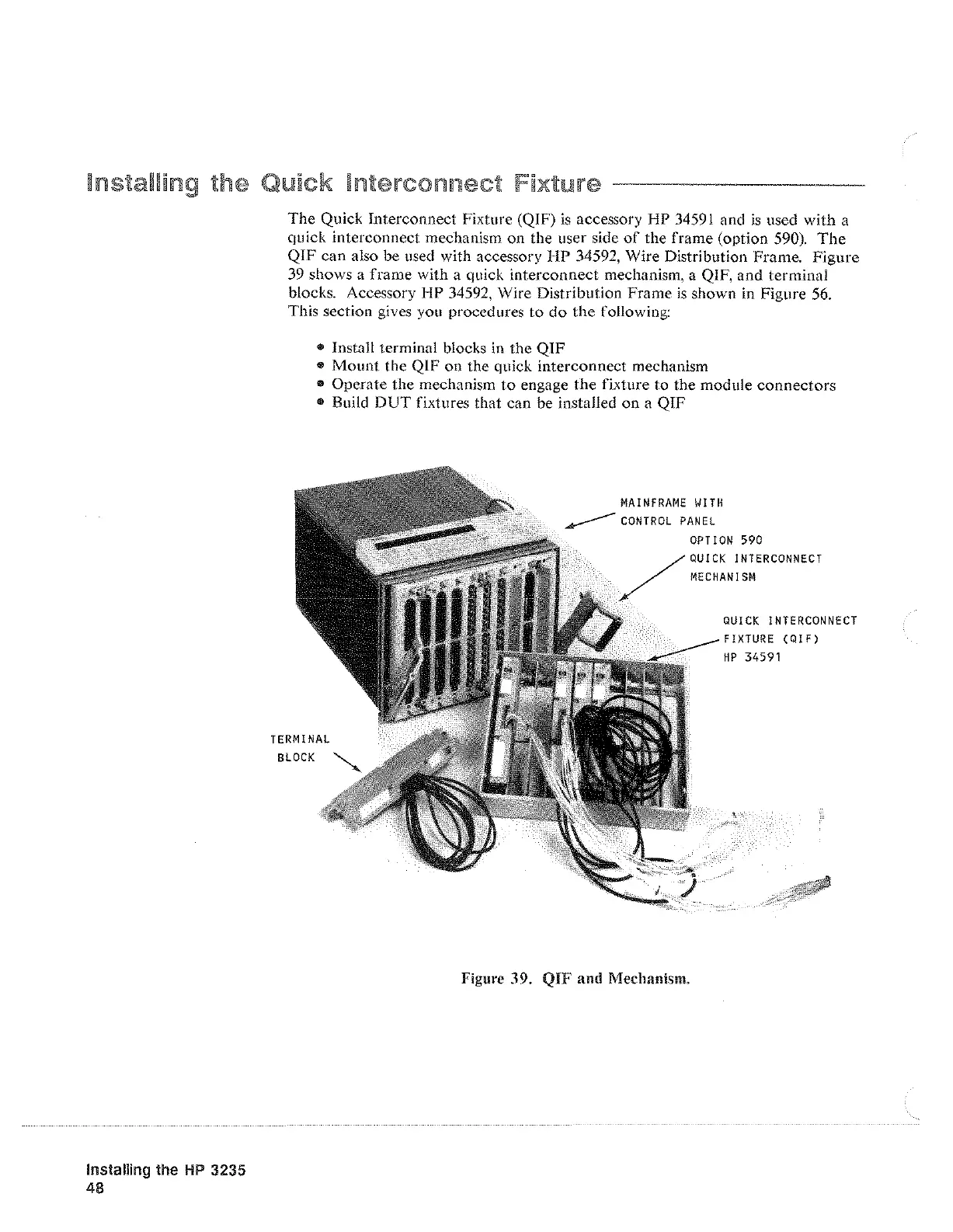

Figure 39. QIF and Mechanism.
QUICK INTERCONNECT
FIXTURE (QIF)
HP 34591
