Terminal
Installing the
HP
3235
40
Styles---
This section shows you
the
different
styles
of
terminal blocks available
for
both
BNC
and
DIN connector plug-in modules. Figure
32
is
a collage
of
the
four
terminal block styles
for
easy comparison.
The
two
BNC terminal blocks
are
the
cable terminal block and
the
bulkhead terminal block.
The
two
DIN
terminal
blocks
are
the
solder-eye/slide-on terminal block and the screw
terminal
block.
Each style
is
identified in Figure 32.
SOLDER-EYE/
SLIDE-ON
TERMINAL
BLOCK
TERM
I
NA.L
BLOCK

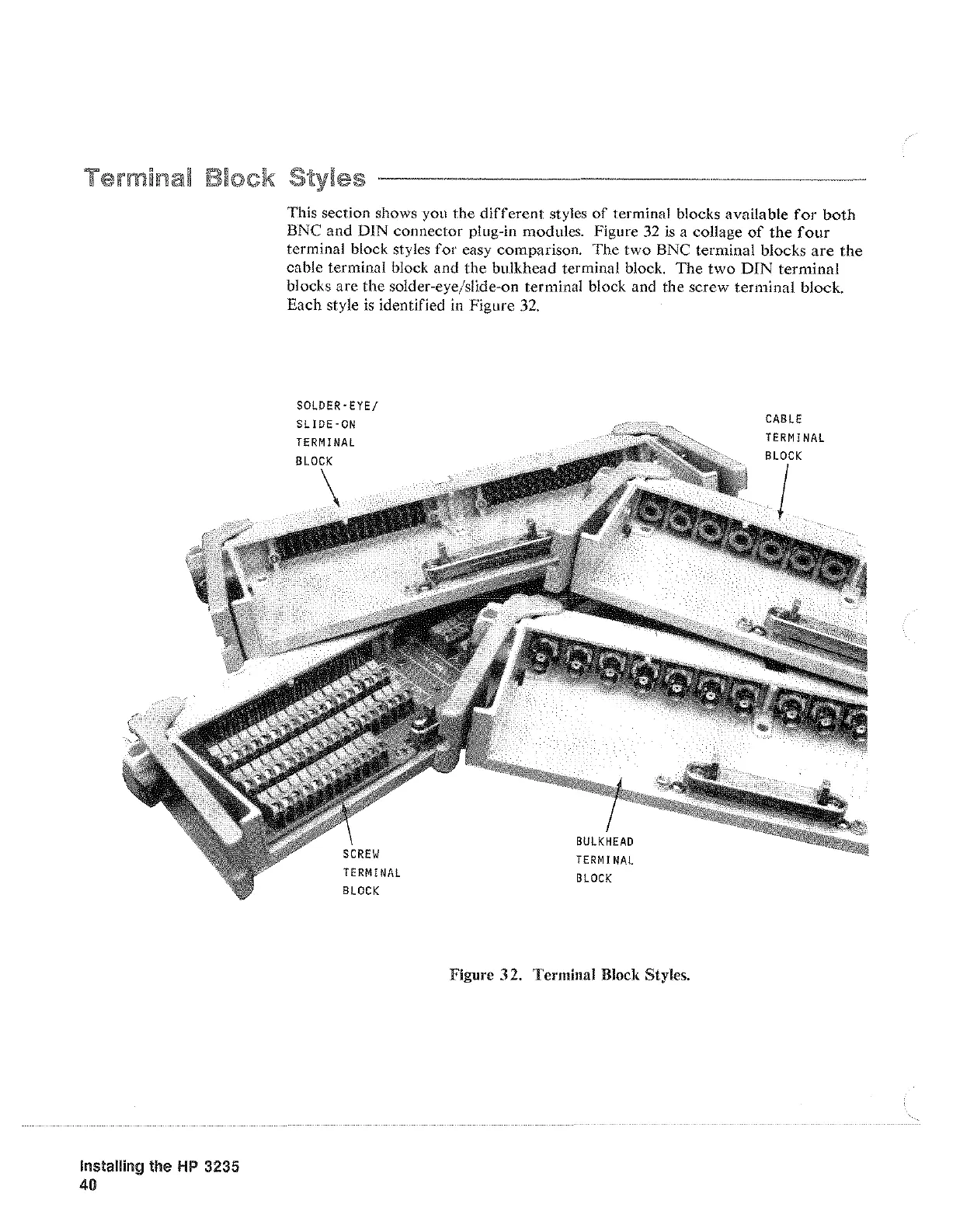

Figure 3
2.
Terminal Block Styles.
CABLE
TERMINAL
