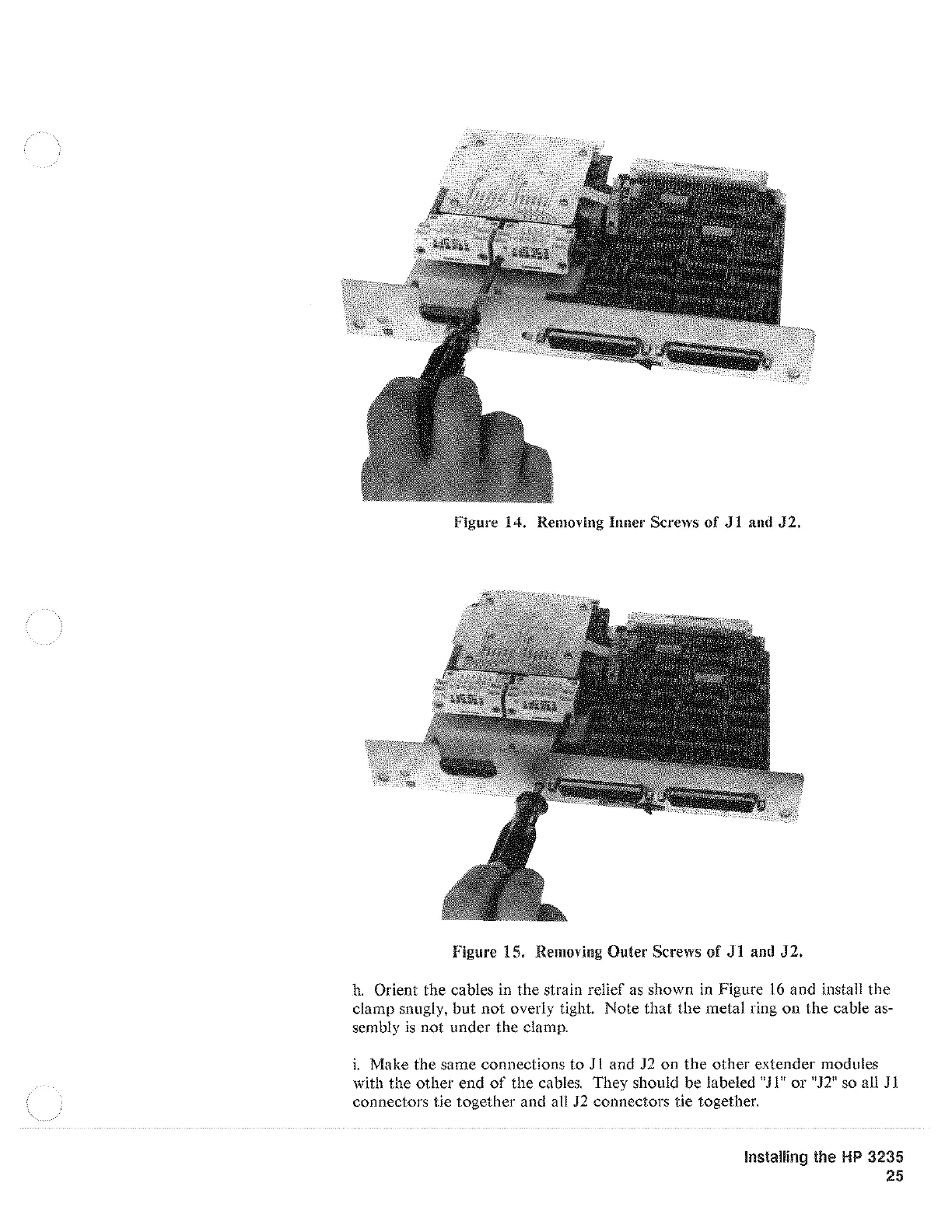

Figure 14. Removing Inner Screws
of
Jl
and
J2.
Figure 15. Removing
Outer
Screws
of
J 1 and
J2.
h.
Orient
the
cables in
the
strain relief as
shown
in Figure
16
and
install
the
clamp snugly,
but
not
overly tight.
Note
that
the
metal
ring
on
the
cable as-
sembly
is
not
under
the
clamp.
i.
Make
the
same connections
to
Jl
and J2
on
the
other
extender
modules
with
the
other
end
of
the cables.
They
should
be
labeled
"J
l"
or
"J2"
so all J 1
connectors tie
together
and all
.12
connectors tie together.
installing the
HP
3235
25
