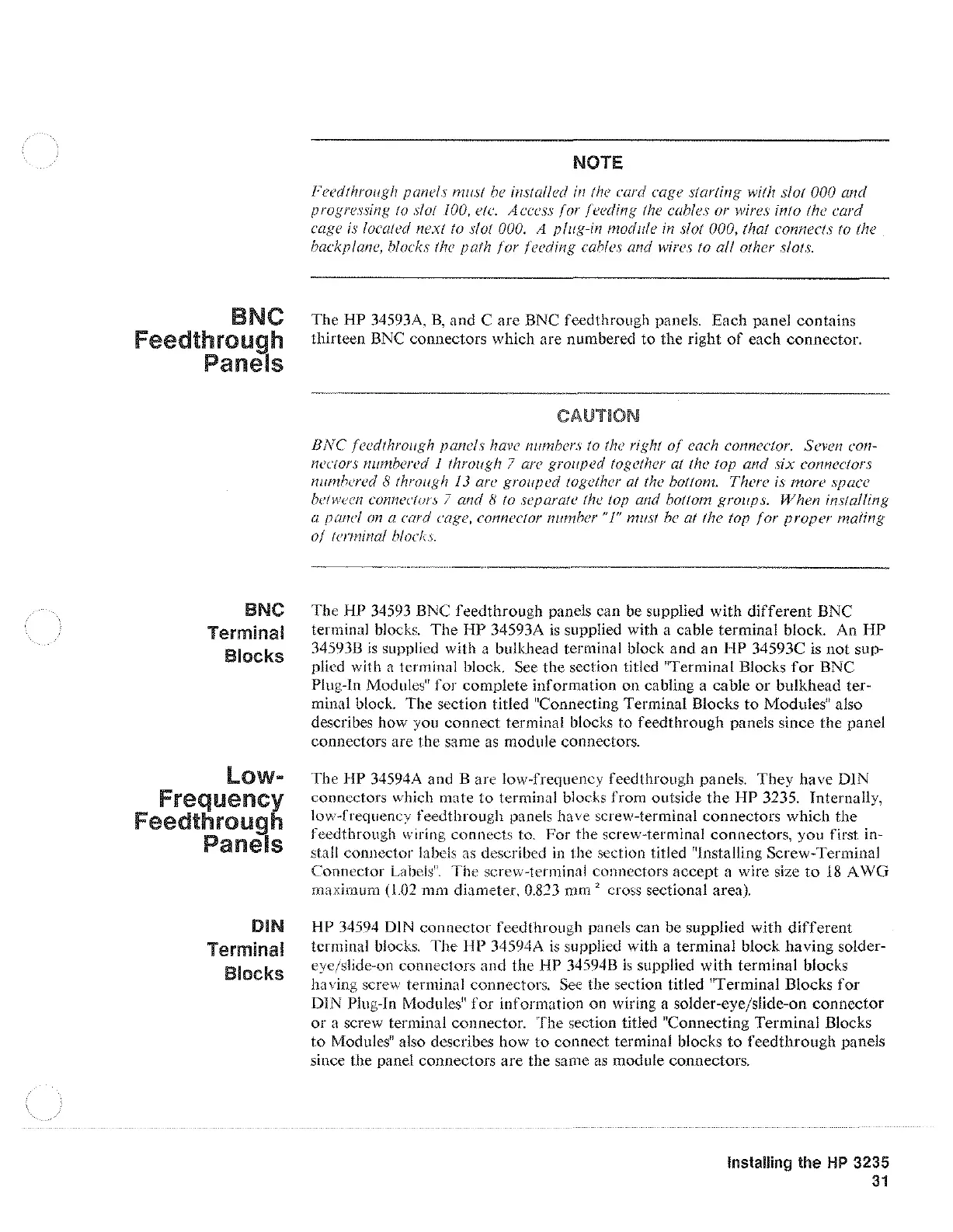

BNC
Feedthrough
Panels
BNC
Terminal
Blocks
Low-
Frequency
Feedthrough
Panels
DIN
Terminal
Blocks
NOTE
Feedthrough panels
must
be installed
in
the card cage starting with slot 000
and
progressing to slor 100,
ere.
Access for feeding the cables or wires info the card
cage
is
localed
next
to slot 000. A plug-in module in slot 000, that connects to the
backplane, blocks the path
for
feeding cables and wires to all other slots.
The
HP 34593A,
B,
and
Care
BNC feedt:hrough panels. Each panel contains
thirteen BNC connectors which are numbered
to
the
right
of
each
connector.
CAUTION
BNC
(eedrhrough panels have numbers to the right
of
each connector. Seven con-
nectors numbered 1 through 7 arc grouped together at the top and
six
connectors
numhered 8 through
13
are grouped together at the hoflom. There is more space
be!H-'ccn
connector,'J 7
and
8 to
separate
thi!
lop
and
bottom
groups.
When
installing
a panel
on
a card cage, connector number
"I"
must he at the top
for
proper
mating
of
terminal blocks.
The
HP
34593 BNC
feedthrough
panels can be supplied
with
different
BNC
terminal blocks.
The
HP
34593A
is
supplied with a cable terminal block. An
HP
34593B
is
supplied with a bulkhead terminal block
and
an
l-IP
34593C
is
not
sup-
plied with a terminal block.
See
the
section titled "Terminal Blocks
for
BNC
Plug-In
Modules"
for
complete information
on
cabling a cable
or
bulkhead ter-
min'tl block.
The
section titled "Connecting Terminal Blocks
to
Modules" also
describes how you
connect
terminal blocks
to
feedthrough panels since
the
panel
connectors are the same
as
module connectors.
The
HP
34594A and
Bare
low-frequency feedthrough panels.
They
have DIN
connectors which mate
to
terminal blocks
from
outside
the
HP
3235. Internally,
lov,,"-frequency
feedthrough
panels have screw-terminal
connectors
which
the
feedthrough \Yiring
connects
to. For
the
screw-terminal
connectors,
you
first in-
stall connector labels
as
described in
the
section titled "Installing Screw-Terminal
Connector
Labels".
The
screw-terminnl connectors
accept
a wire size
to
18
A
WG
maximum ( l.02 mm diameter, 0.823 mm
2
cross sectional area).
HP 34594 DIN
connector
feedthrough panels
can
be supplied with
different
terminal blocks.
The
HI'
34594A
is
supplied with a terminal block
having
solder-
eye/slide-on connectors and the
1-!P
345948
is
supplied
with
terminal blocks
having
screw termina I connectors. See the section titled "Terminal Blocks
for
DIN
Plug-In Modules"
for
information on wiring a solder-eye/slide-on
connector
or
a screw terminal connector. 'The section titled "Connecting
Terminal
Blocks
to
Modules" also describes
how
to
connect
terminal blocks
to
feedthrough
panels
since the panel connectors
are
the same
as
module connectors.
Installing the
HP
3235
31
