Strain

Relief

Installing the

3235

The

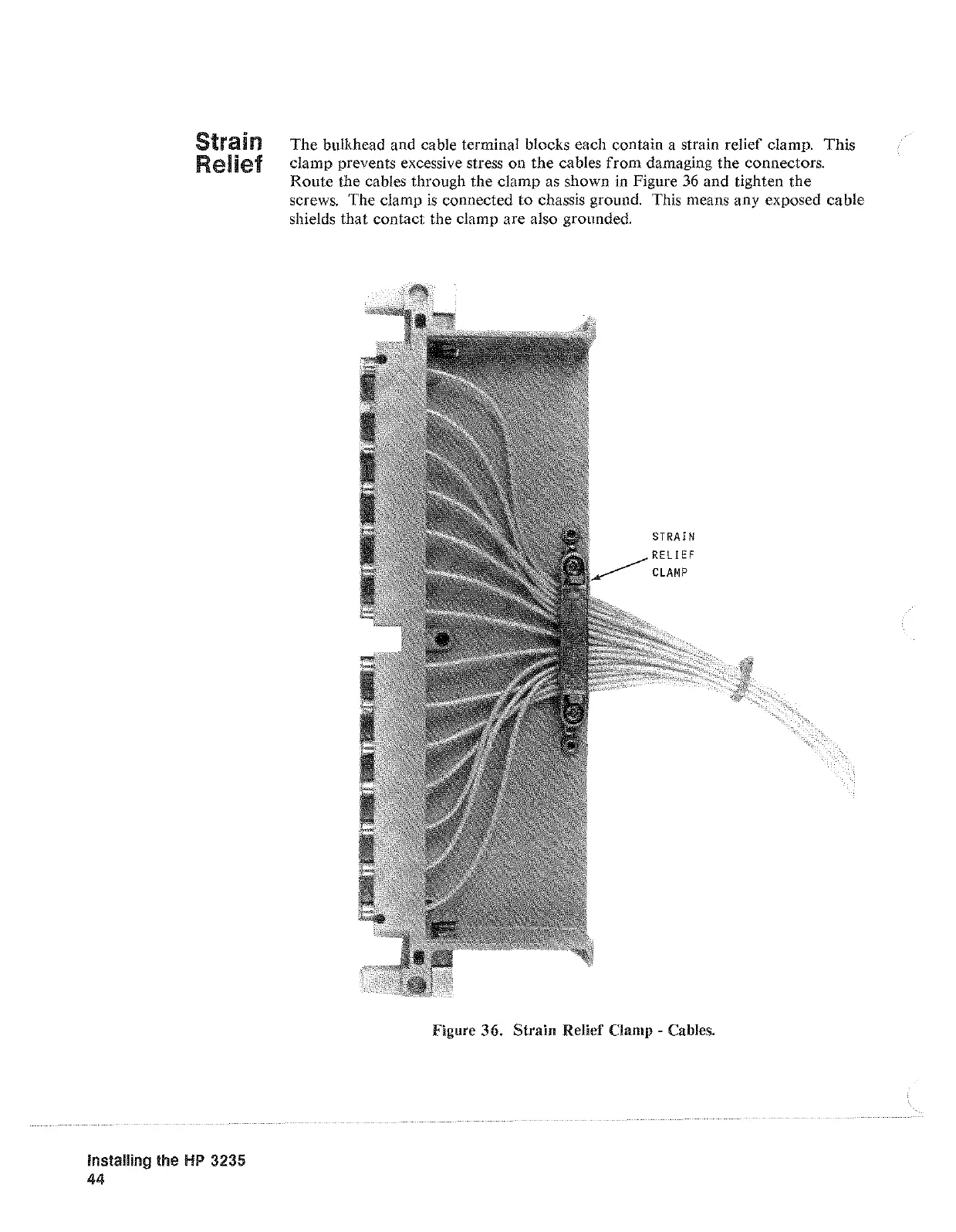

bulkhead and cable terminal blocks each contain a strain relief clamp. This

clamp prevents excessive stress on

the

cables from damaging the connectors.

Route the cables through the clamp as shown

Figure

and tighten

the

screws. The clamp

connected to chassis ground. This means any exposed cable

shields that contact the clamp are also grounded.

Figure 3 6. Strain Relief Clamp - Cables.
