locking QIF
to Mounting
Bars

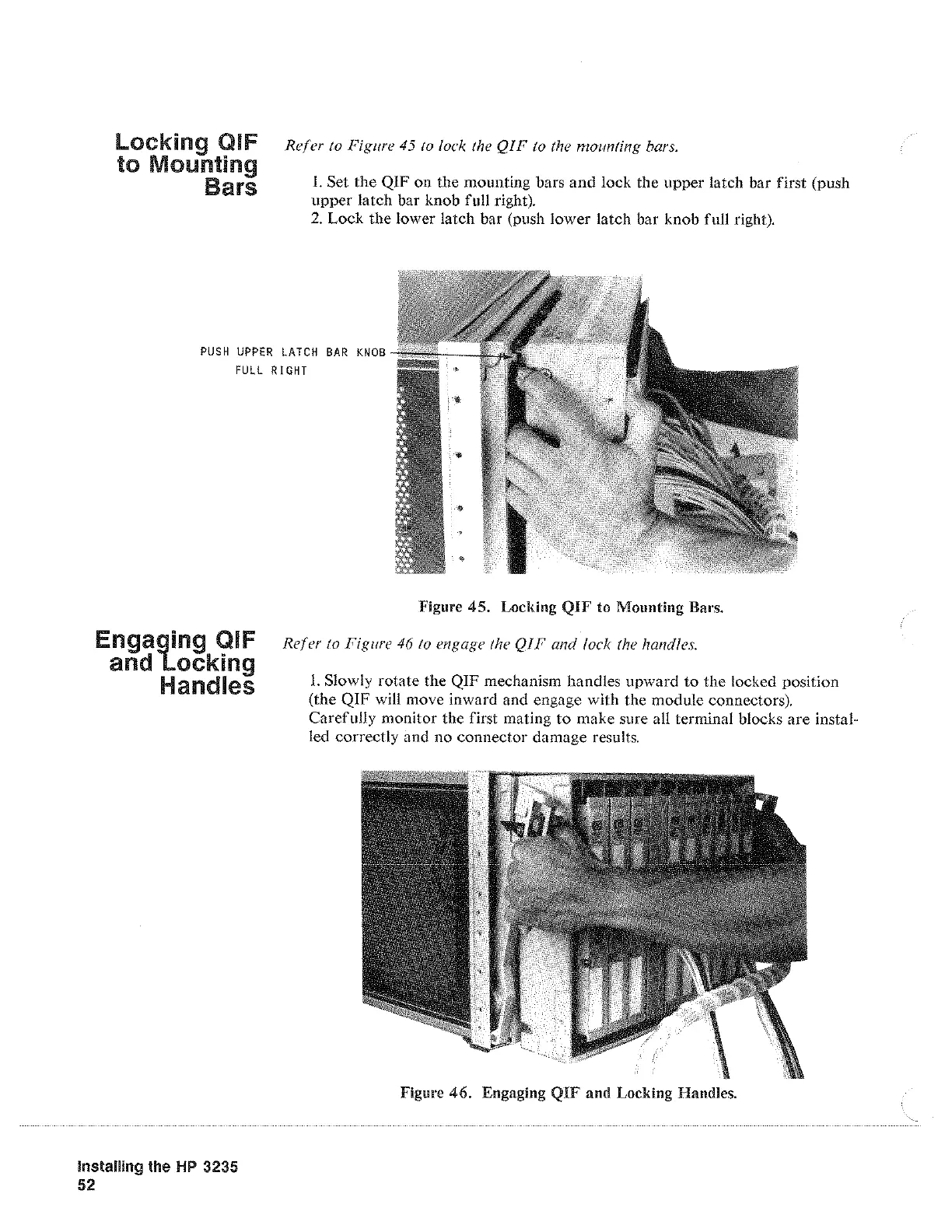

Refer to Figure 45 to lock the QIF to the mounring bars.
I. Set the QIF on the mounting bars and lock the upper latch bar first (push
upper latch bar knob full right).
2. Lock the lower latch bar (push lower latch bar knob full right).
PUSH UPPER LATCH BAR KNOB
FULL RIGHT
Engaging QIF
and
Locking
Handles
Installing the HP 3235
52
Figure 45. Locking QIF to Mounting Bars.
Refer ro Figure 46 ro engage the QI F and lock the handles.
I. Slowly rotate the QIF mechanism handles upward to the locked position
(the
QIF will move inward and engage with the module connectors).
Carefully monitor the first mating
to make sure all terminal blocks are instal-
led correctly and
no connector damage results.
Figure 46. Engaging
QIF and Locking Handles.
