Routing
Feedthrougfl
Panel Cables
or Wires
Installing the HP 3235
32

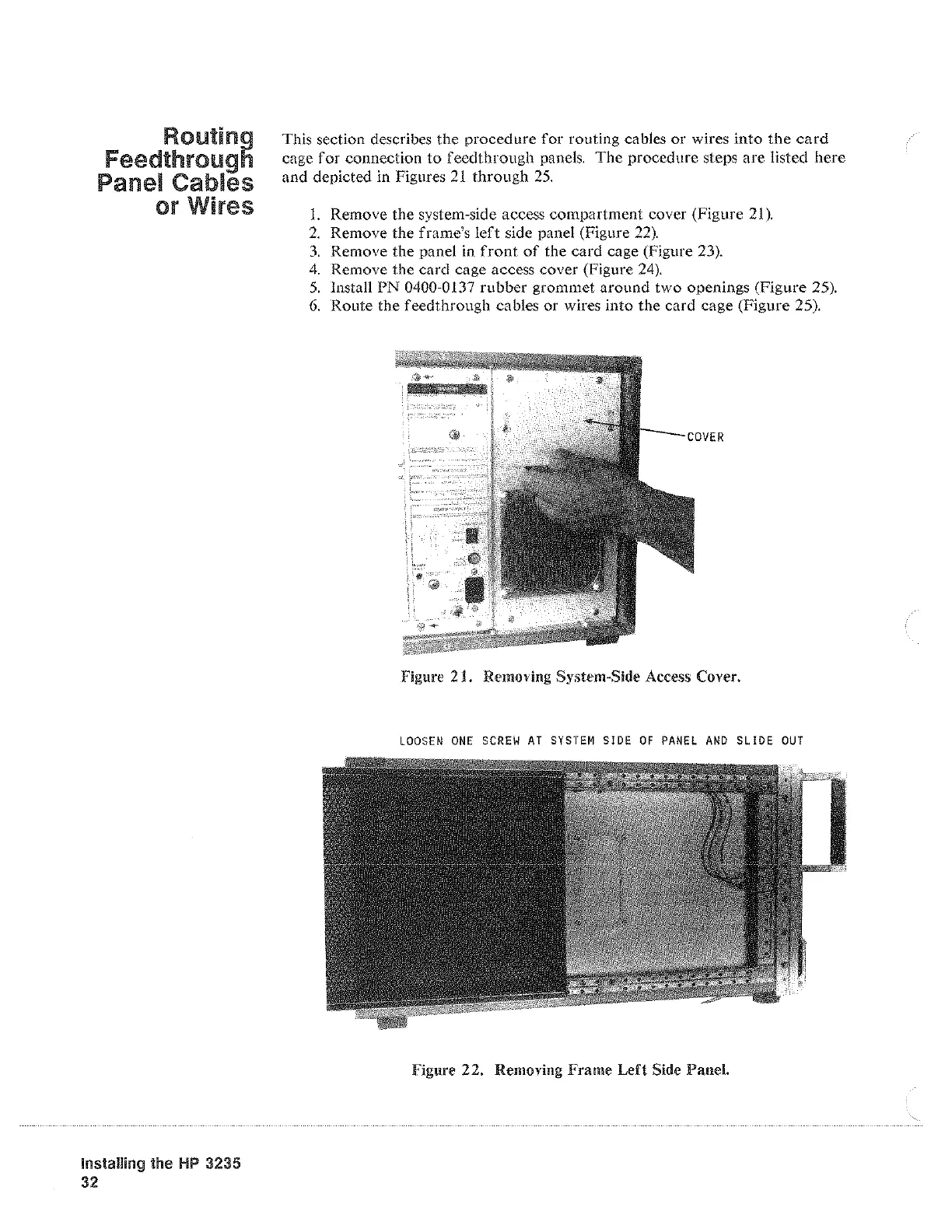

This section describes the procedure for routing cables or wires into the card
cage for connection to feedthrough panels. The procedure steps are listed here
and depicted in Figures 21 through 25.
l. Remove the system-side access compartment cover (Figure 21).
2. Remove the frame's left side panel (Figure 22).
3. Remove the panel in front of the card cage (Figure 23).
4. Remove the card cage access cover (Figure 24).
5. Install PN 0400-0137 rubber grommet around two openings (Figure 25).
6. Route the feedthrough cables or wires into the card cage (Figure 25).
Figure 2 L Removing System-Side Access Cover,
LOOSEN ONE SCREW AT SYSTEM SIDE OF PANEL AND SLIDE OUT
Figure 22, Removing Frame Left Side Panel,
