THIS EDGE upu

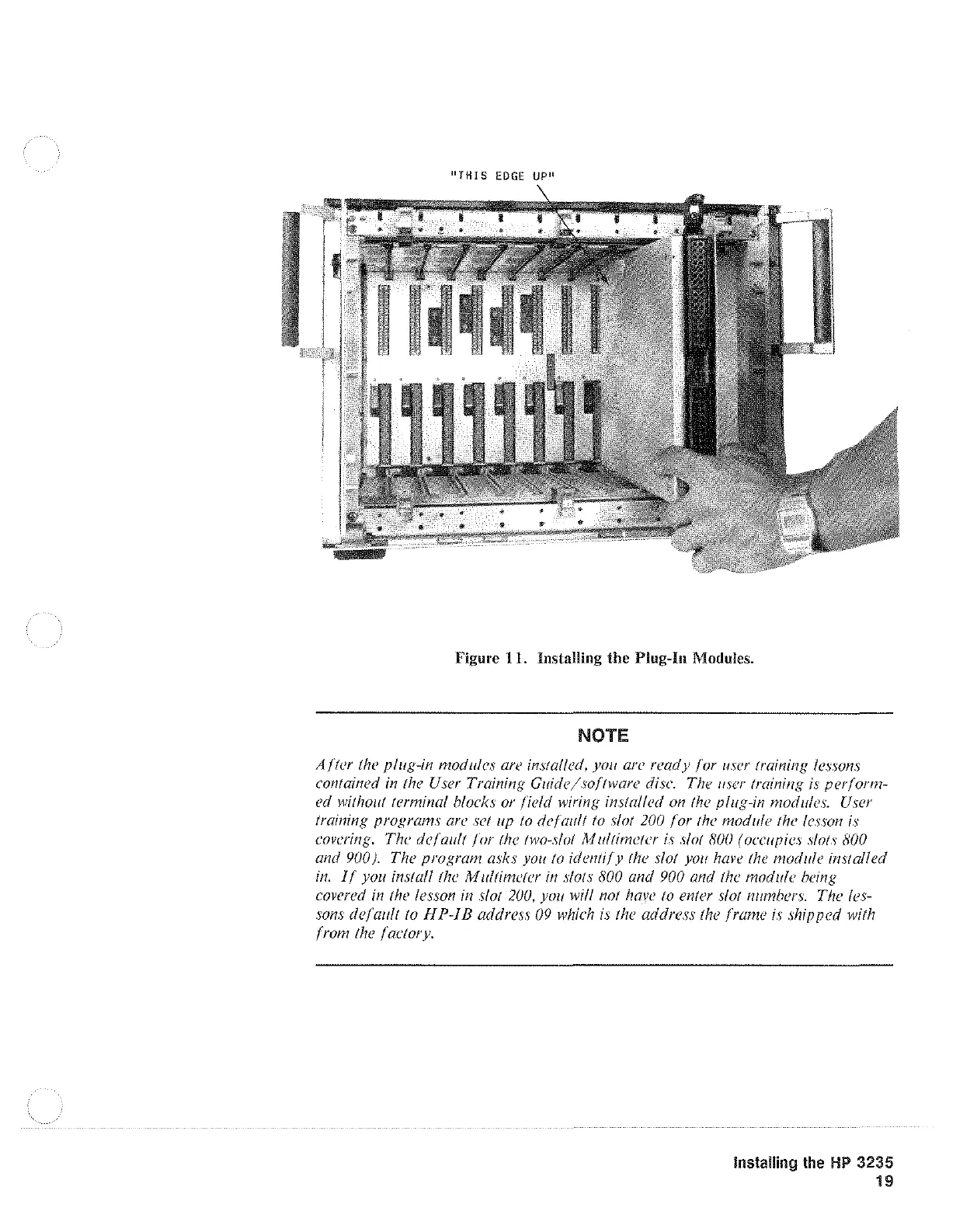

Figure 11. Installing the Plug-In Modules.
NOTE
A/fer the plug-in modules are installed, you are ready lor user training lessons
contained
in the User Training Gzddc/so(lware disc. The user training is perform-
ed without terminal blocks or field wiring installed on the plug-in modules. User
training programs are set up to d<Iaul/to slot 200 for the module the lesson is
covering. The de/milt for the two-s/of M ullime/er is slot 800 I occupies slots ROO
and 900 ). The program asks youlo idenli/y the slot you hme the module installed
in. If you install the Mullime/er in slots 800 and 900 and the module being
covered in the lesson in slot 200, you will not have to enter slot numbers. The les-
sons default
Ia H P-1 B address 09 which is the address !he frame is shipped with
from the lac/ory.
Installing the HP 3235
19
