Connecting Terminal Blocks to Modules
CAUTION
You can break module connectors if terminal blocks not in a quick interconnect fix-
ture
are disconnected without properly using terminal block extractors. Both top
and bottom extractors must be slowly activated together to disengage the
connectors. See the full page caution. Figure 2. at the lront ol this manual.
Whether the module has BNC or DIN connectors, the procedure for connecting
the terminal blocks to them is the same. The modules should first be installed in
the card cage and secured by the upper and lower mounting screws before ter-
minal blocks are connected to them. Figure 38 shows a terminal block being
connected to a module.
For simultaneous connection of all terminal blocks, you
can use a Quick Interconnect Fixture (accessory no. HP 34591A). See the section
titled
"Installing the Quick Interconnect Fixture" in this manual for information
on using this fixture with terminal blocks.

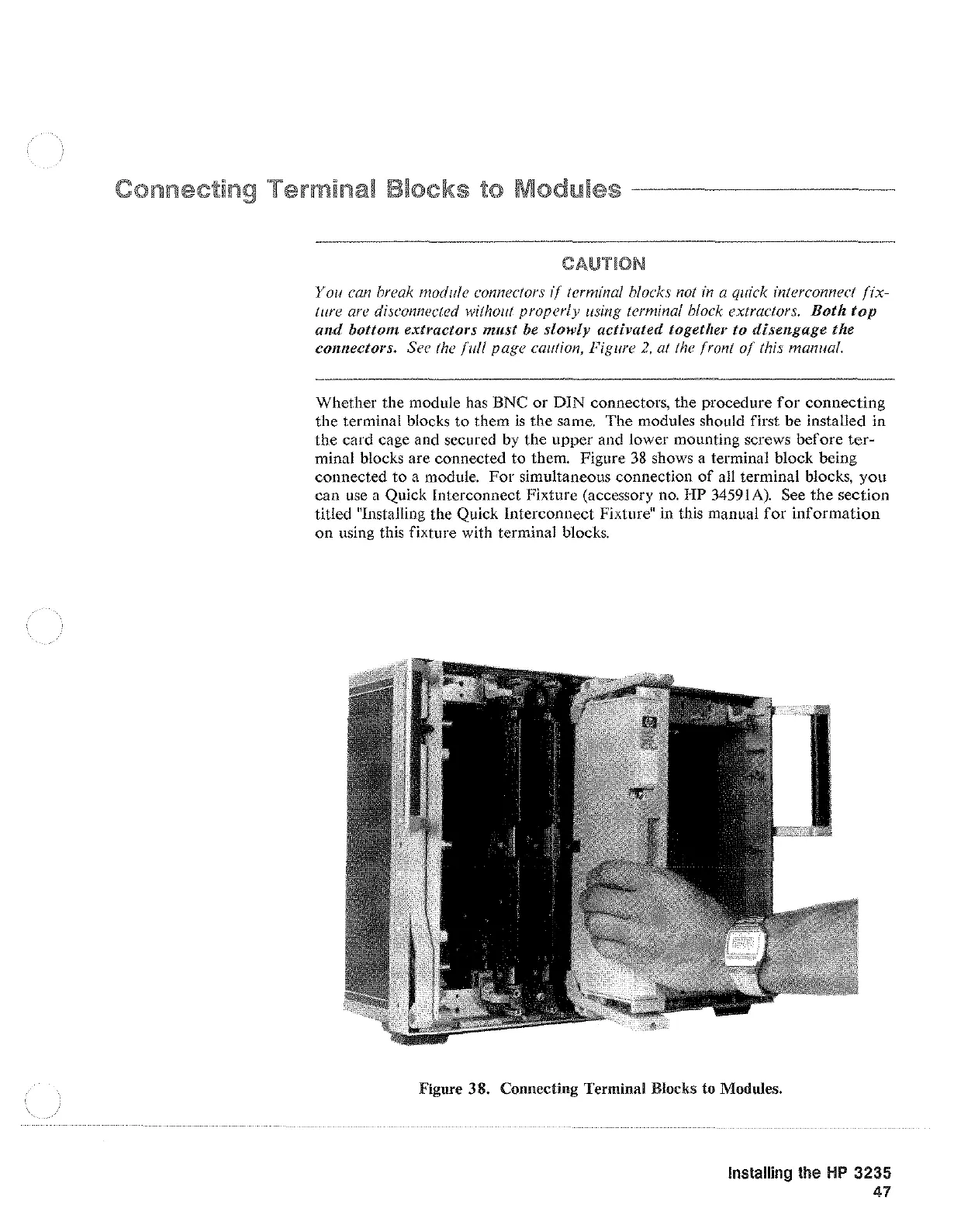

Figure 38. Connecting Terminal Blocks to Modules.
Installing the HP 3235
47
