Cabling the
Cable
Terminal
Block
Installing the HP 3235
42
The cable terminal block is supplied with non-locking male BNC-to-cable con-
nectors. The cable connecting to these connectors is the user supplied field ca-
bling. RG-223/U coaxial cable
is recommended. Figure 34 shows how to con-
nect a coaxial cable to a BNC connector.
l<_s0SJJ
j3;e"T-3;~~
( )~
CONNECTOR
PART NO. ~ 1250-2059
~ I Center Conductor
~Shield
STEP 1. Strip Insulation
STEP 2. Slide the threaded nut on cable.
STEP 3.
STEP 4, Slide the threaded nut
over the bra). d and
connect outer housing.
STEP 5. Install connector,wlth
attached cable, to terminal
blocK housing
Terminal
Block
Housing
3235!N F.31

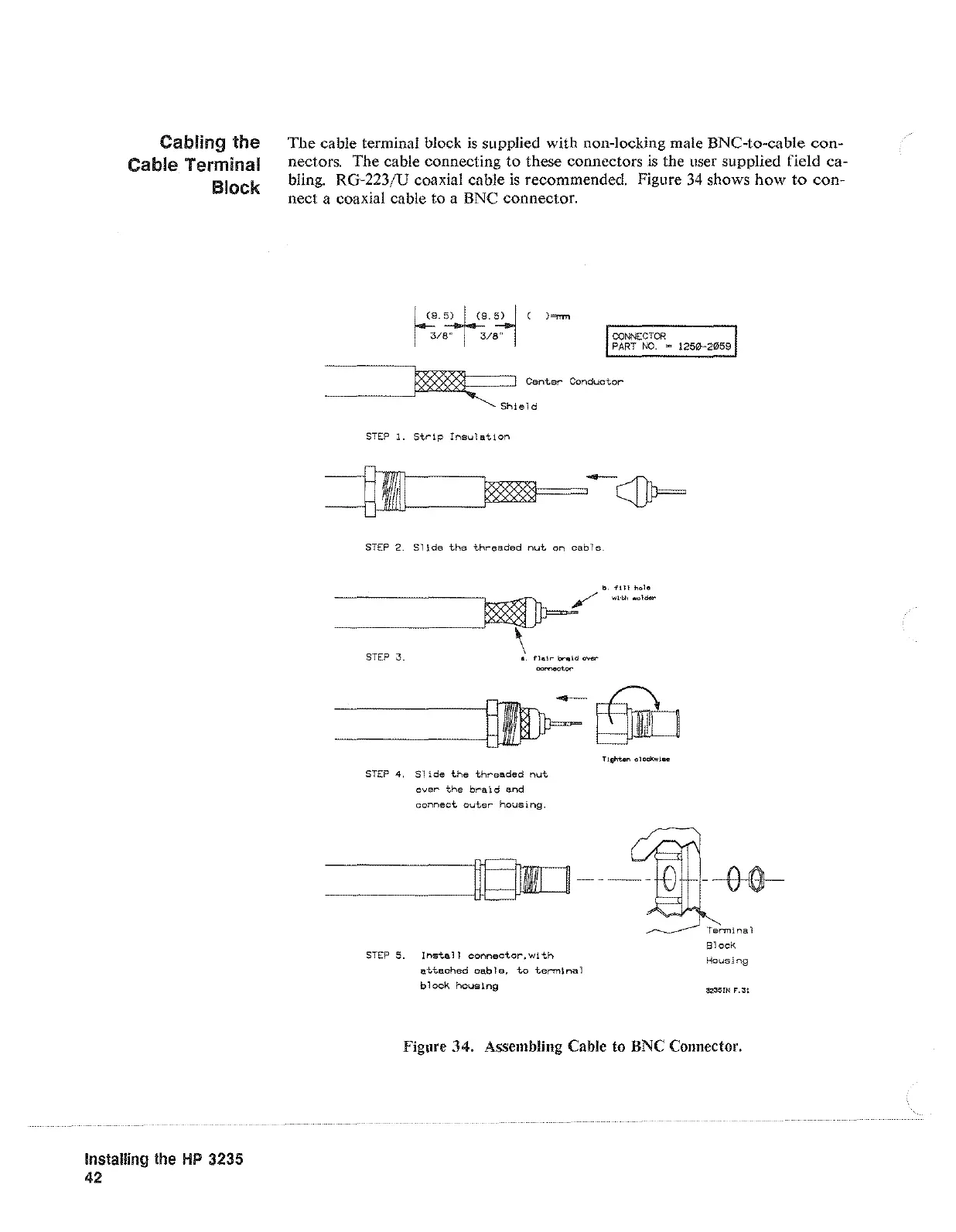

Figure 34. Assembling Cable to BNC Connector.
