Power
Cords
and
Receptacles

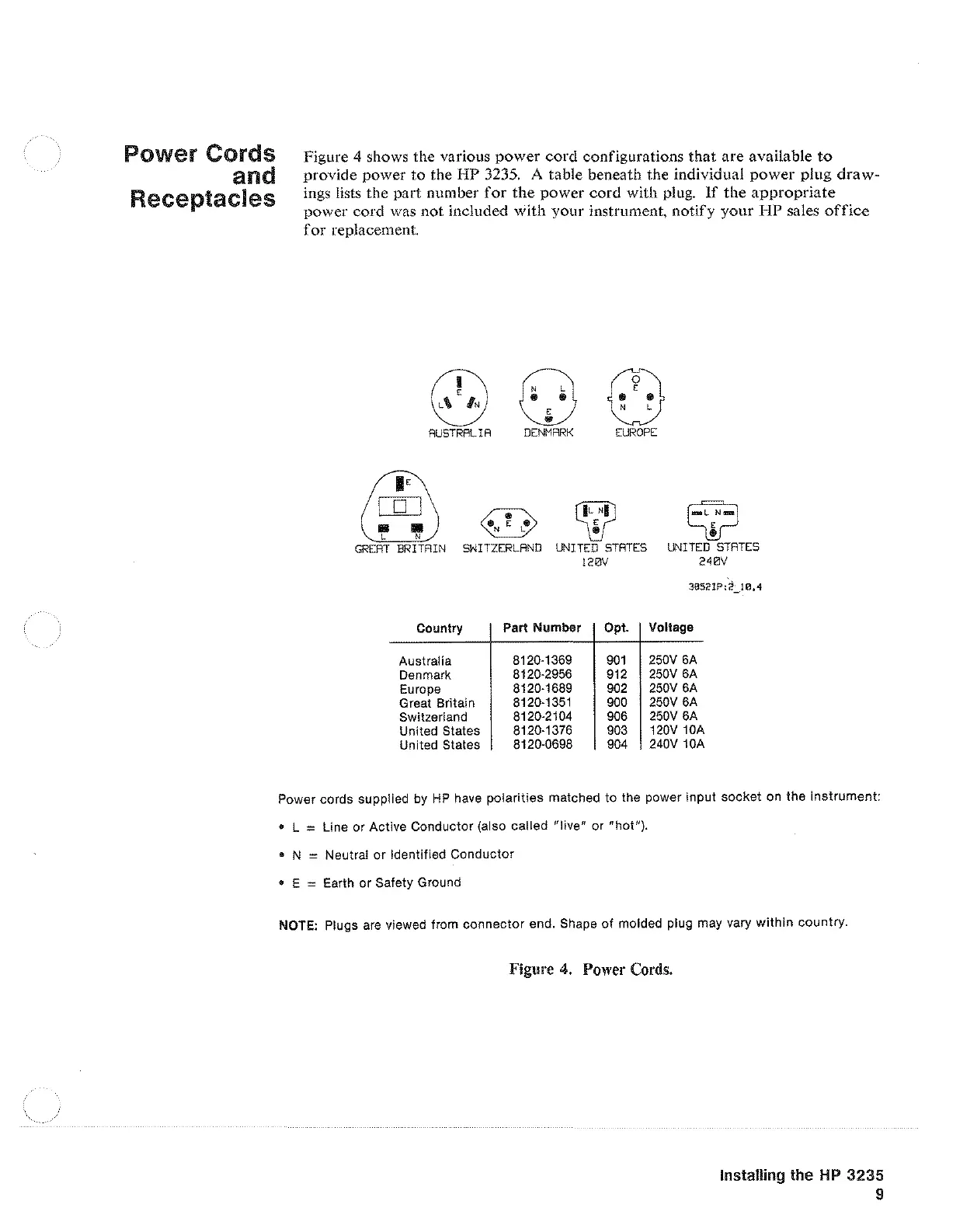

Figure 4 shows the various power cord configurations that are available
to
provide power
to
the
HP
3235. A table beneath the individual
power
plug
draw-
ings lists
the
part
number
for
the
power
cord
with plug,
If
the
appropriate
power
cord
was
not
included
with
your
instrument, notify
your
HP
sales
office
for
replacement.
@
AUSTRALIA
II'
.Cf::L
0
EUROPE
OIJ
1111
Ill
L N
~
~
Q
GREAT
BRITAIN
SWITZERLAND
UNITED STATES
120V
Country
Part Number
Opt.
Australia
8120-1369
901
Denmark
8120-2956
912
Europe
8120-1689 902
Great Britain
8120-1351 900
Switzerland
8120-2104 906
United States
8120-1376 903
United States
8120-0698 904
UNITED STATES
240V
3852IP:2_10,4
Voltage
250V 6A
250V 6A
250V 6A
250V 6A
250V
6A
120V 10A
240V 10A
Power cords supplied
by
HP have polarities matched to the power input socket
on
the instrument:
• L = Line or Active Conductor (also called "live" or "hot").
•
N = Neutral or Identified Conductor
• E = Earth or Safety Ground
NOTE: Plugs are viewed from connector end. Shape of molded plug may
vary
within country.
Figure
4.
Power Cords.
Installing the
HP
3235
9
