Monitoring Port Configuration
To display the following form, go to the Port-Based Port Mirroring Configuration form. Select a Monitoring Port
number.

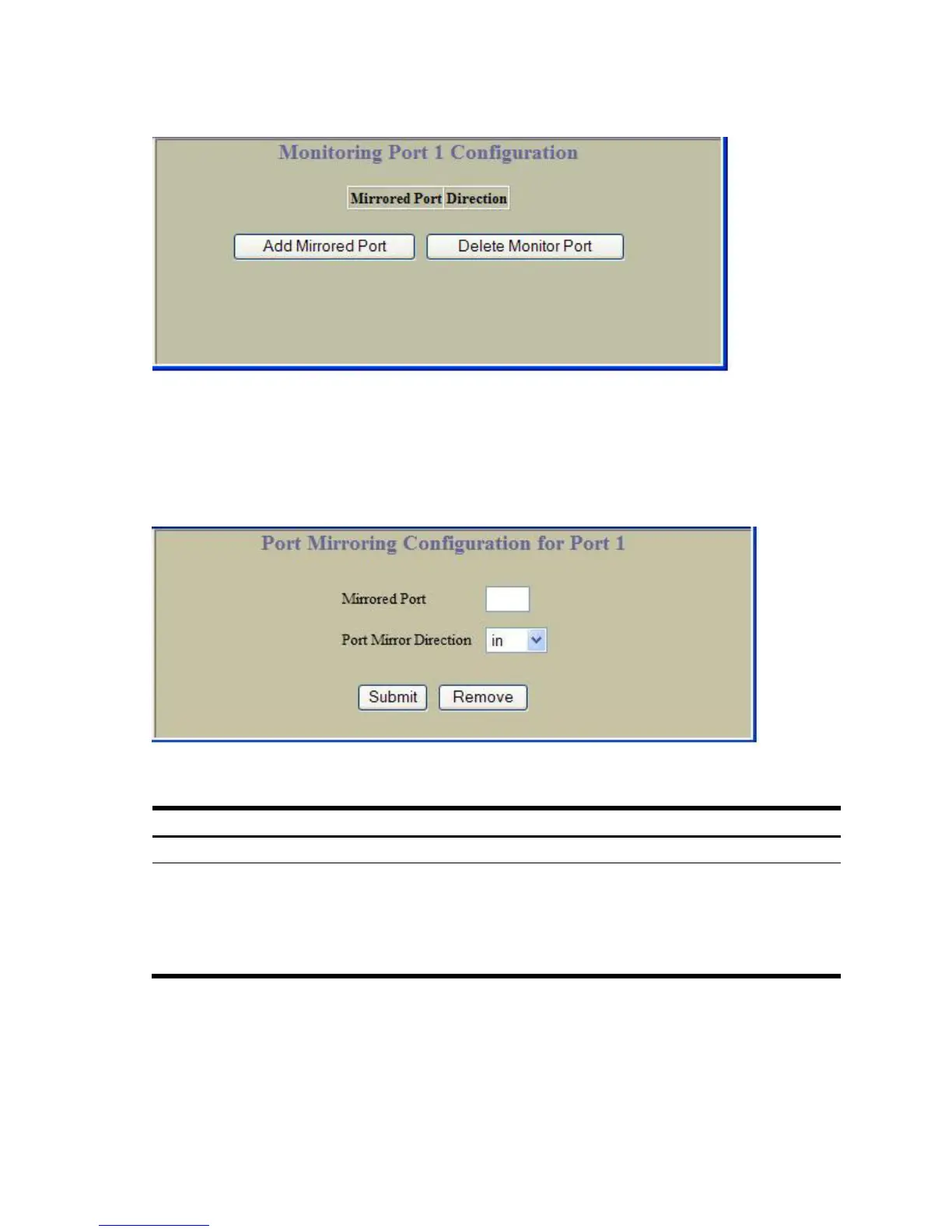

This form lists all mirrored ports for the selected port number. Click Add Mirrored Port to select a port to be
monitored by this port. Click Delete Monitor Port to remove all mirrored ports from this port’s monitoring
configuration.
Port Mirroring Configuration for Port
To display the following form, go to the Monitoring Port x Configuration form. Select a Mirrored Port number, or
click Add Mirrored Port.
The following table describes the Port Mirroring Configuration for Port controls:
Table 104 Port Mirroring Configuration for Port controls
Control Description
Mirrored Port Adds the port to be mirrored.
Port Mirror Direction Specifies the direction of the traffic: in or out or both. It is necessary to specify the
direction because:
• If the source port of the frame matches the mirrored port and the mirrored direction
is ingress or both (ingress and egress), the frame is sent to the mirrored port.
• If the destination port of the frame matches the mirrored port and the mirrored
direction is egress or both, the frame is sent to the monitoring port.
