Virtual Routers Dashboard
NOTE: This form is available only on the GbE2c Layer 2/3 Ethernet Blade Switch.
To display the following form, select Layer 3 > VRRP > Virtual Routers (click the underlined text, not the folder).

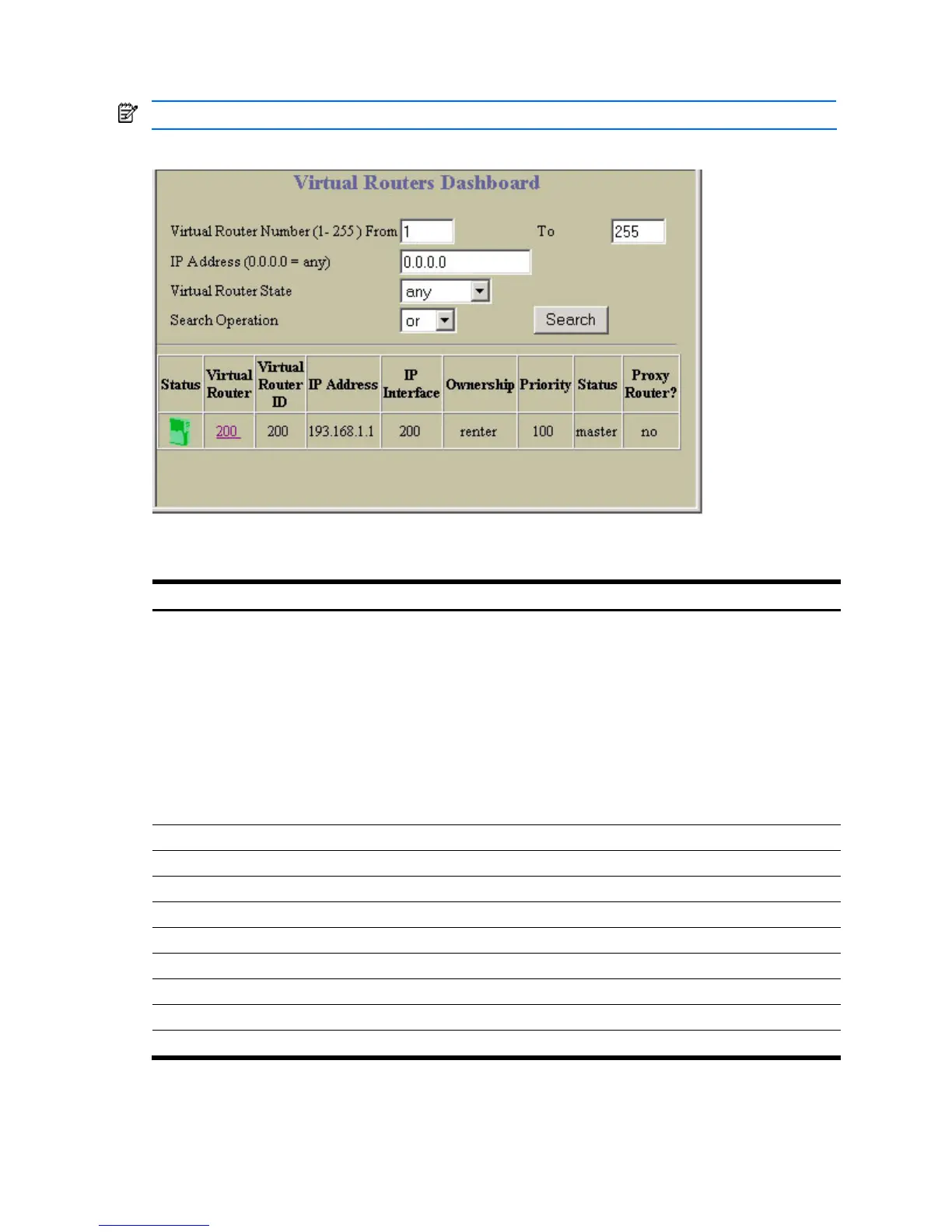

The following table describes the Virtual Routers Dashboard controls:
Table 41 Virtual Routers Dashboard controls
Control Description
Search Operation To focus the search for virtual routers, enter search parameters:
• Virtual Router number
• IP address
• Virtual Router state
Fields that have a value of “any” are ignored during the search.
Choose a search operation:
• or: Search for virtual routers specified in the Search range that meet any
of the criteria entered.
• and: Search for virtual routers specified in the Search range that meet all
of the criteria entered.
Click Search to display virtual routers that fit the range and meet the criteria
entered.
Status Shows whether the virtual router is enabled (green) or disabled (red).
Virtual Router Displays the virtual router number for each virtual router.
Virtual Router ID Displays the virtual router ID number for each virtual router.
IP Address Displays the IP address of the virtual router.
IP Interface Displays the IP interface associated with the virtual router.
Ownership Displays the ownership status of the virtual router: owner or renter
Priority Displays the priority number.
Status Displays whether the virtual router is acting as master or standby.
Proxy Router Shows the status of the virtual router as a proxy router: yes or no.
