Access Control List Configuration

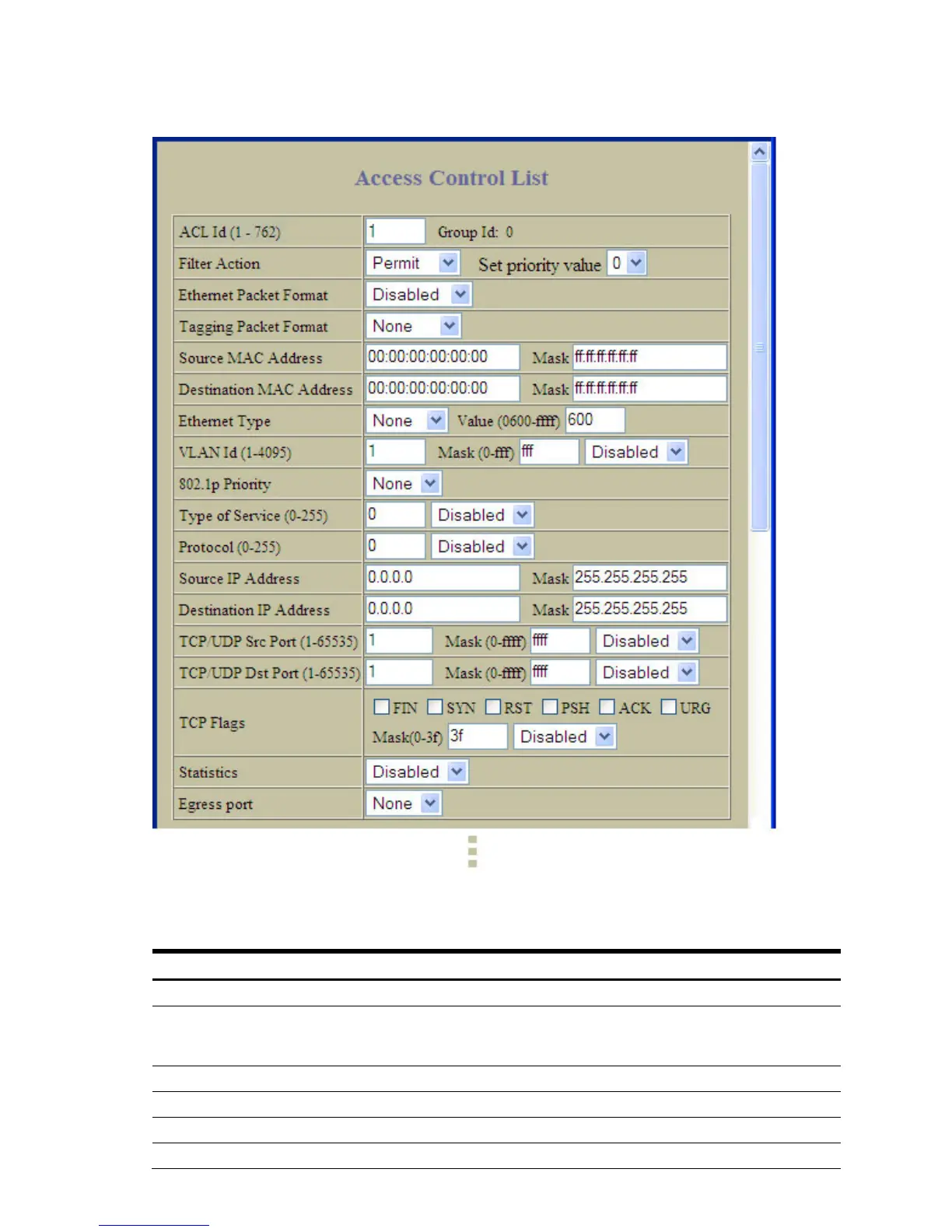

To display the following form, go to the ACL Configuration Table form, and select an ACL number, or open the
Access Control Lists folder and click Add ACL.
This form allows you to define filtering criteria for the Access Control List (ACL).The following table describes the
Access Control List configuration controls:
Table 170 Access Control List Configuration controls
Control Description
ACL ID (1-762) Assigns a numeric identifier to the ACL.
Filter Action Configures a filter action for packets that match the ACL definitions. You can choose to
permit (pass) or deny (drop) packets, or set the Class of Service queue that handles the
packets.
Ethernet Packet Format Defines the Ethernet format for the ACL.
Tagging Packet Format Defines the tagging format for the ACL.
Source MAC Address Defines the source MAC address for this ACL.
Destination MAC Address Defines the destination MAC address for this ACL.
