Configuring the switch 140
The following table describes the VLANs Configuration controls:
Table 109 VLANs Configuration controls
Control Description
Search Range To search for a VLAN, enter a range of VLAN numbers in the From and To fields.
Search Options To focus the search for a VLAN, enter optional search parameters:
• VLAN Name
• VLAN State
Fields that have a value of “any” are ignored during the search.
Choose a search operation:
• or: Search for VLANs specified in the search range that meet any of the criteria entered.
• and: Search for VLANs specified in the search range that meet all of the criteria entered.
Click Search to display VLANs that fit the range and meet the criteria entered.
VLAN Configuration

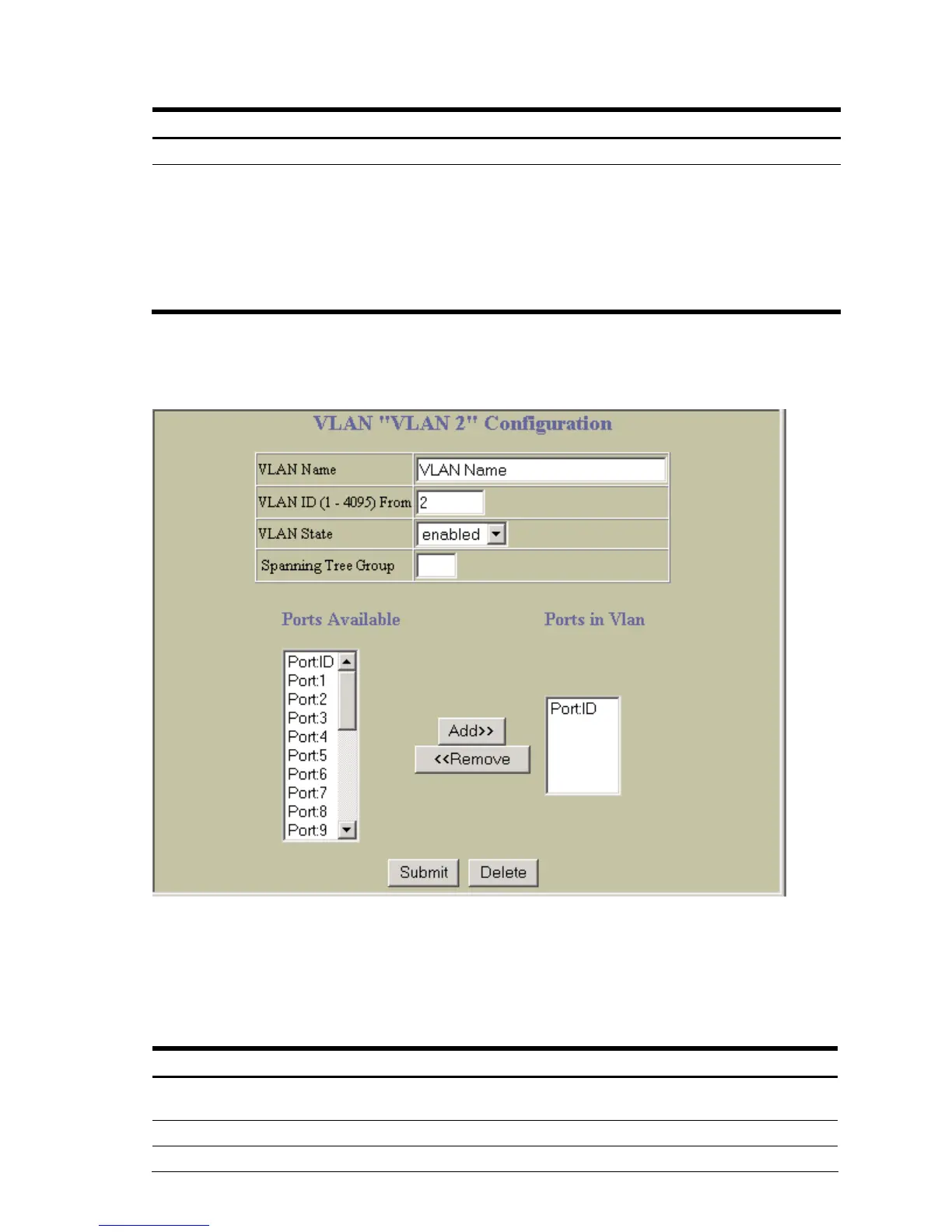

To display the following form, go to the VLANs Configuration form. Select a VLAN ID, or open the Virtual LANs
folder and click Add VLAN.
The commands on this form configure VLAN attributes, change the status of the VLAN, delete the VLAN, and
change the port membership of the VLAN.
By default, the VLAN menu option is disabled except VLAN 1, which is enabled all the time. The GbE2c supports
a maximum of 1,000 VLANs. VLAN 4095 is reserved for switch management.
The following table describes the VLAN Configuration controls:
Table 110 VLAN Configuration controls
Control Description
VLAN Name Assigns a name to the VLAN or changes the existing name. The default VLAN name is the
first one.
VLAN ID (1-4095) Assigns a numeric identifier to the VLAN.
VLAN State Enables or disables the VLAN.
