IP Interface Configuration

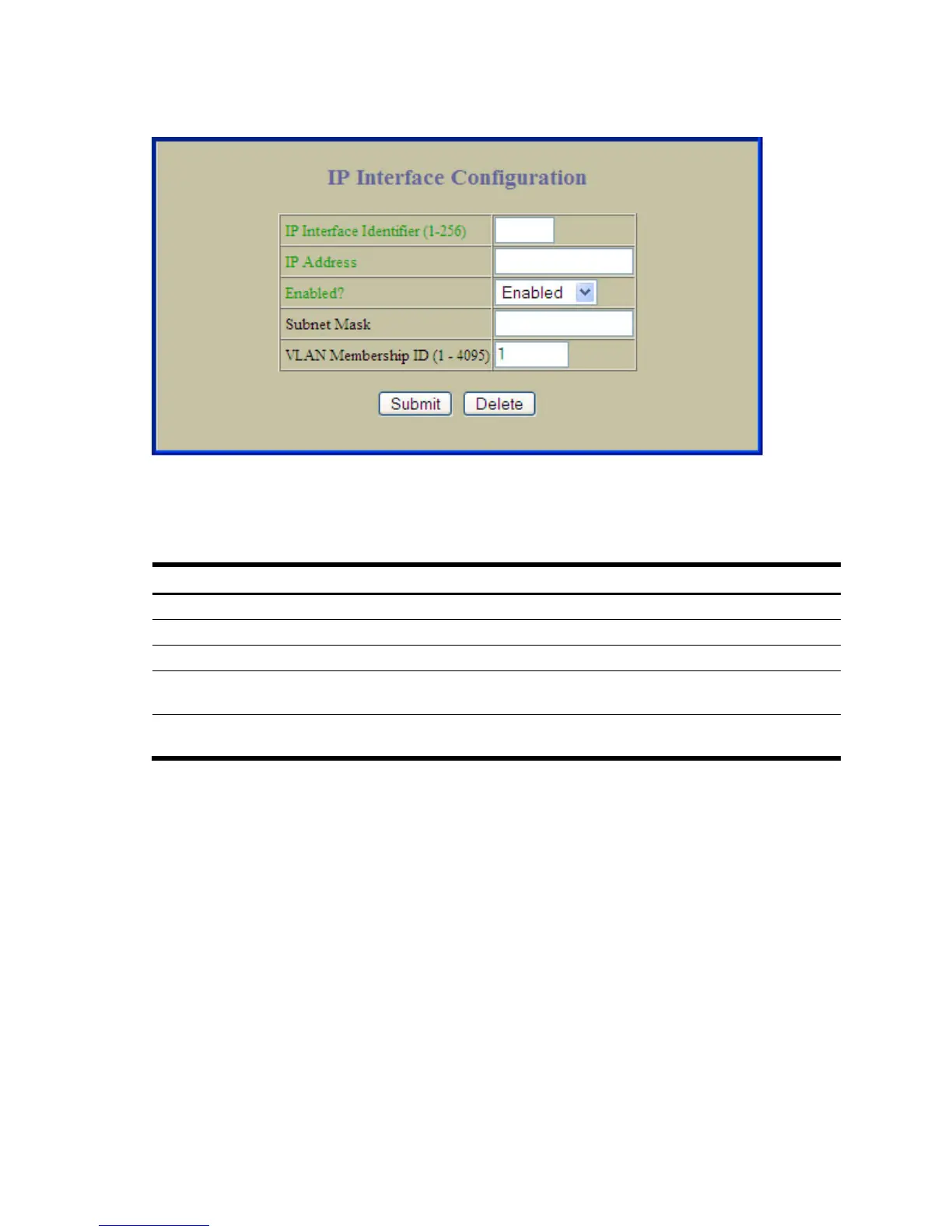

To display the following form, go to the IP Interfaces Configuration form. Select an IP Interface number, or open
the IP Interfaces folder and click Add IP Interface.
The switch can be configured with up to 256 IP interfaces. Each IP interface represents the switch on an IP subnet
on your network. The Interface option is disabled by default.
The following table describes the IP Interface Configuration controls:
Table 129 IP Interface Configuration controls
Control Description
IP Interface Identifier (1-256) Selects an IP interface to configure.
IP Address Configures the IP address of the switch interface using dotted decimal notation.
Enabled? Enables or disables this IP interface.
Subnet Mask Configures the IP subnet address mask for the interface using dotted decimal
notation.
VLAN Membership ID (1-4095) Configures the VLAN number for this interface. Each interface can belong to one
VLAN, although any VLAN can have multiple IP interfaces in it.
