An address that is in the forwarding (FORWARD) state means that the switch has learned it. When in the trunking
(TRUNK) state, the port field represents the trunk group number. If the state for the port is listed as unknown
(UNKNOWN), the MAC address has not yet been learned by the switch, but has only been seen as a destination
address. When an address is in the unknown state, no outbound port is indicated.
VLANs Dashboard

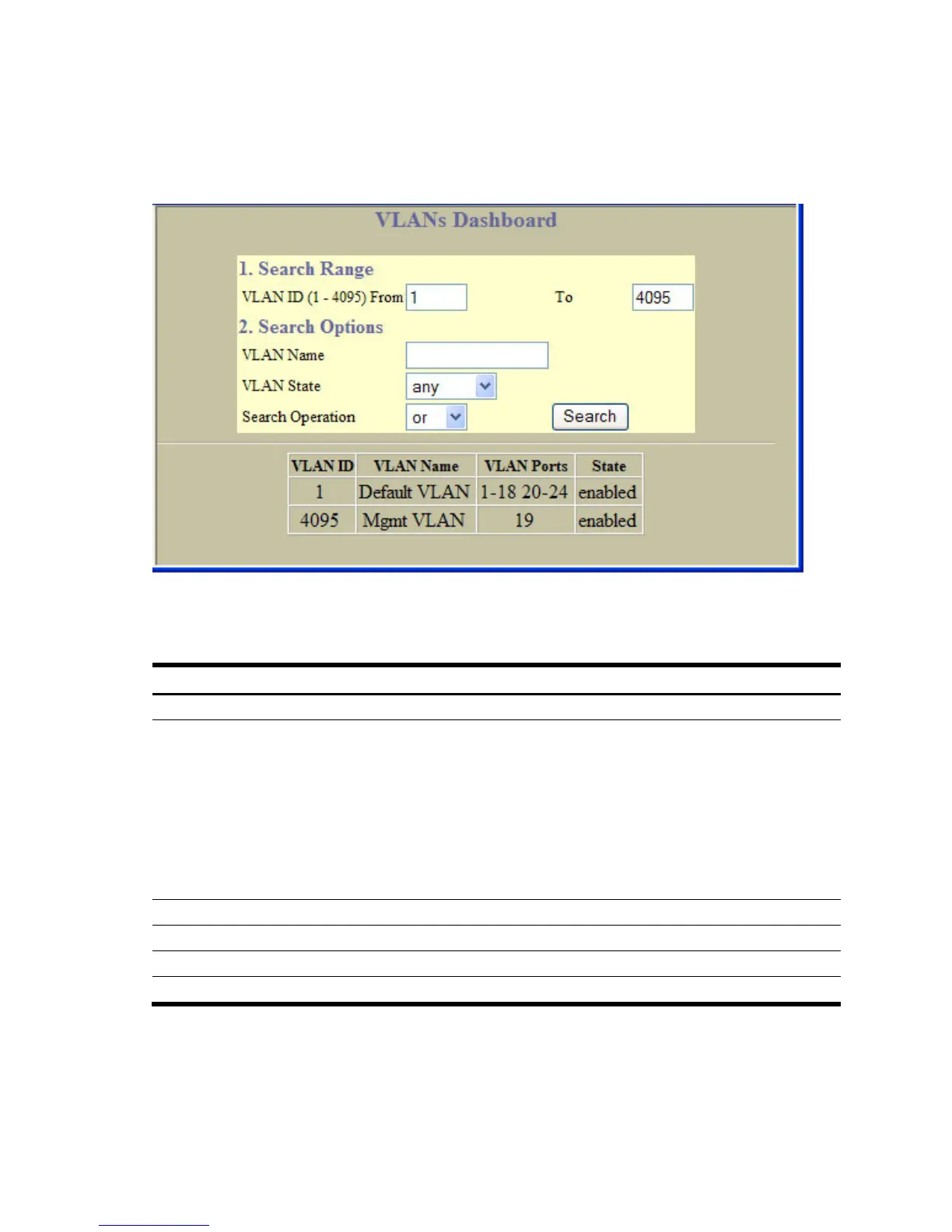

To display the following form, select Layer 2 > Virtual LANs (click the underlined text, not the folder).
This form displays information for all configured VLANs and all member ports that have an active link state.
The following table describes the VLANs Dashboard controls:
Table 14 VLANs Dashboard controls
Control Description
Search Range To search for a VLAN, enter a range of VLAN numbers in the From and To fields.
Search Options To focus the search for a VLAN, enter optional search parameters:
• VLAN Name
• VLAN State
Fields that have a value of “any” are ignored during the search.
Choose a search operation:
• or: Search for VLANS specified in the search range that meet any of the criteria
entered.
• and: Search for VLANS specified in the search range that meet all of the criteria
entered.
Click Search to display VLANS that fit the range and meet the criteria entered.
VLAN ID Displays the numeric identifier of the VLAN.
VLAN Name Displays the name of the VLAN.
VLAN Ports Displays the port numbers of ports that are members of the VLAN.
State Shows if the VLAN is enabled or disabled.
To Next Page
