Panel

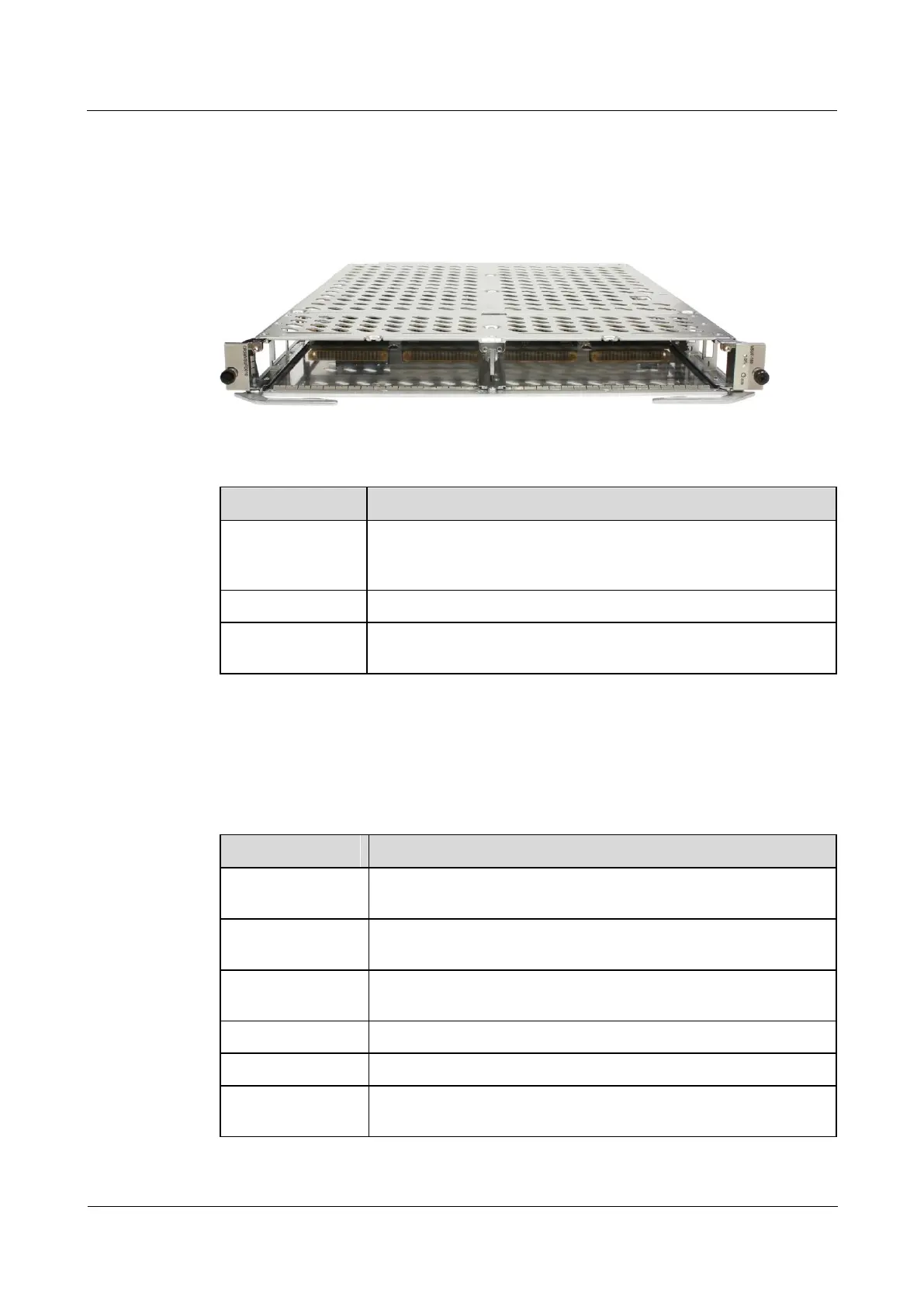

Figure 6-4 shows the panel appearance of the VSUF-160. Table 6-11 describes the indicators
on the panel.
Figure 6-4 Panel appearance of the VSUF-160
Table 6-11 Indicators and button on the panel of the VSUF-160
Indicator/Button
Description
OFL button
It is a button indicating the removal of a board. Before removing a
board, you need to press and hold the OFL button for about five
seconds till the OFL indicator is on.
OFL indicator (red)
If the indicator is on, you can remove the board.
RUN indicator
(green)
If the indicator blinks once every 2s (0.5 Hz), the LPU is in the
normal state.
Technical Specifications
Table 6-12 lists the technical specifications of the VSUF-160.
Table 6-12 Technical specifications of the VSUF-160
Item
Specifications
Silkscreen of the
board name
VSUF-160
Dimensions (width
x depth x height)
400 mm x 530 mm x 41 mm ( 15.75 in. x 20.87 in. x 1.61 in. )
Power consumption
(typical value)
About 312 W
Heat dissipation
1012.26 BTU/hour
Board weight
About 7.45 kg ( 16.43 lb )
Earliest software
version
V600R006C00
