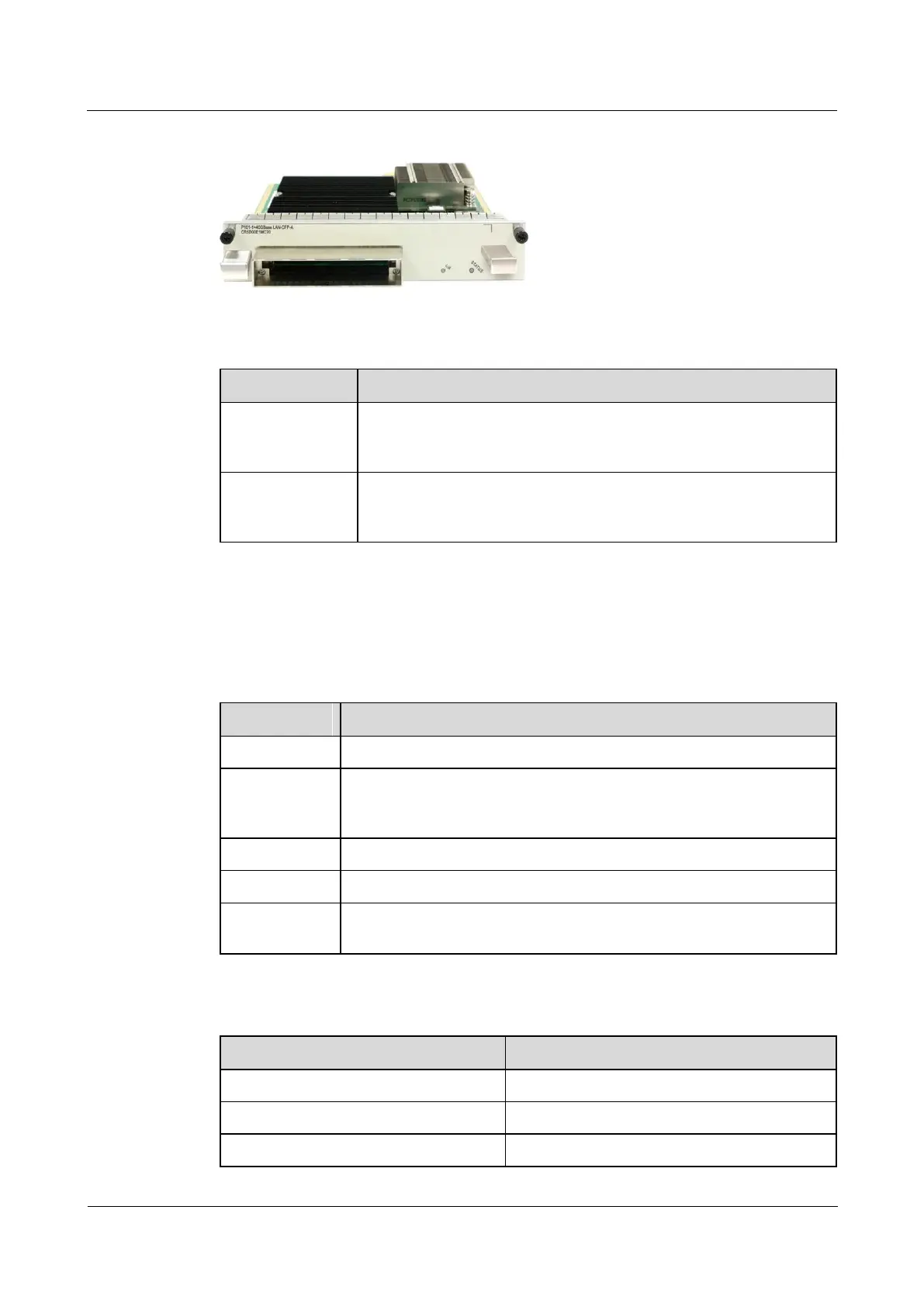

Figure 6-41 Appearance of the 1-Port 40GBase LAN-CFP Flexible Card A
Table 6-104 Indicators on the panel of the 1-Port 40GBase LAN-CFP Flexible Card A
Component
Description
RUN (green)
If the indicator blinks once every 2s (0.5 Hz), it indicates that the
system is running normally. If the indicator blinks twice every 1s (2
Hz), it indicates that the system is in the alarm state.
L/A (green)
If the indicator is steady on, it indicates that the link is normal. If the
indicator blinks, it indicates that data is being transmitted. If the
indicator is off, it indicates that the link is Down.
Interface Attributes
Table 6-105 lists the interface attributes of the 1-Port 40GBase LAN-CFP Flexible Card A.
Table 6-105 Interface attributes of the 1-Port 40GBase LAN-CFP Flexible Card A
Attributes
Description
Connector type
LC
Optical
interface
attributes
Compliant with the selected CFP optical module.
Working mode
Full-duplex
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network
protocol
IP
Table 6-106 Attributes of 40G CFP optical modules
Attributes
Description
Transmission distance
10 km (6.21 mi)
Center wavelength
1310 nm
Minimum transmitting power
-4 dBm
