Huawei NetEngine40E Hardware Description

HUAWEI NetEngine40E Universal ServiceRouter
Hardware Description
6 Boards
Issue 01 (2012-09-30)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
539

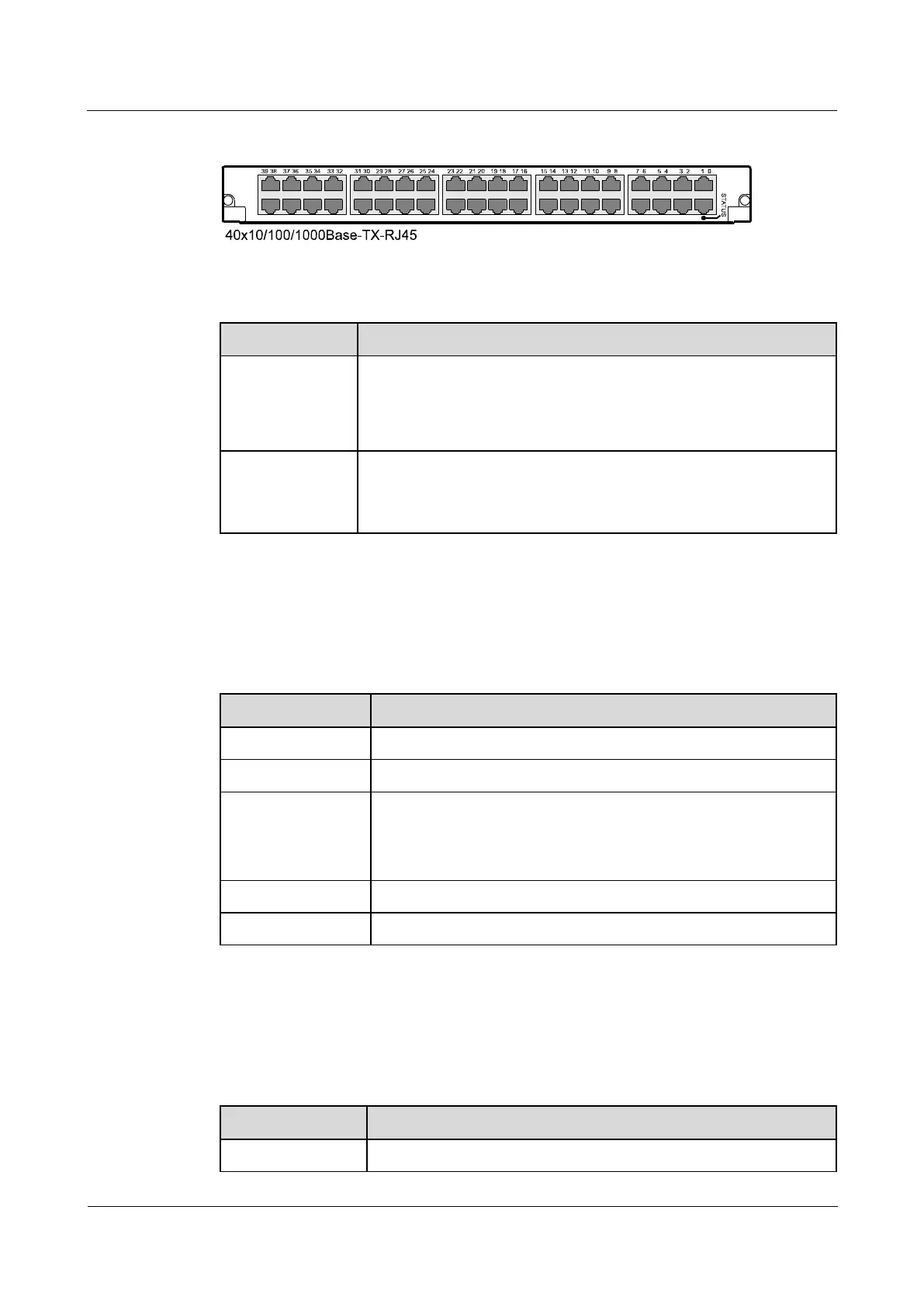

Figure 6-199 Panel appearance of the the 40-port 10/100/1000Base-RJ45 FPIC
Table 6-566 Indicators on the panel of the 40-port 10/100/1000Base-RJ45 FPIC
Indicator
Description
STATUS
indicator (green)
If the indicator blinks once every 2s (0.5 Hz), the FPIC is in the
normal state state.
If the indicator blinks twice every 1s (2 Hz), the FPIC is in the alarm
state.
LINK
(green)/ACT
indicator (yellow)
If the indicator is on, the link is Up.
If the indicator is blinking, the data is being read or written.
If the indicator is off, the link is Down.
Interface Attributes
Table 6-567 lists the interface attributes of the 40-port 10/100/1000Base-RJ45 FPIC.
Table 6-567 Interface attributes of the 40-port 10/100/1000Base-RJ45 FPIC
Attributes
Description
Connector type
RJ45
Working mode
10M/100M/1000M auto-sensing and half-duplex and full-duplex
Cable specification
Category 5 unshielded twisted pair (UTP) cable recommended when
the interface works at 10 Mbit/s or 100 Mbit/s; Super category 5
Shielded Twisted Pair (STP) cable recommended when the interface
works at 1000 Mbit/s
Frame format
Ethernet_II, Ethernet_SAP, and Ethernet_SNAP
Network protocol
IP
Technical Specifications
Table 6-568 lists the technical specifications of the 40-port 10/100/1000Base-RJ45 FPIC.
Table 6-568 Technical specifications of the 40-port 10/100/1000Base-RJ45 FPIC
Item
Specifications
Silk screen of the
40 x 10/100/1000Base-TX-RJ45
