Service Clearances for S80 or S85 System With T00 Style I/O Rack

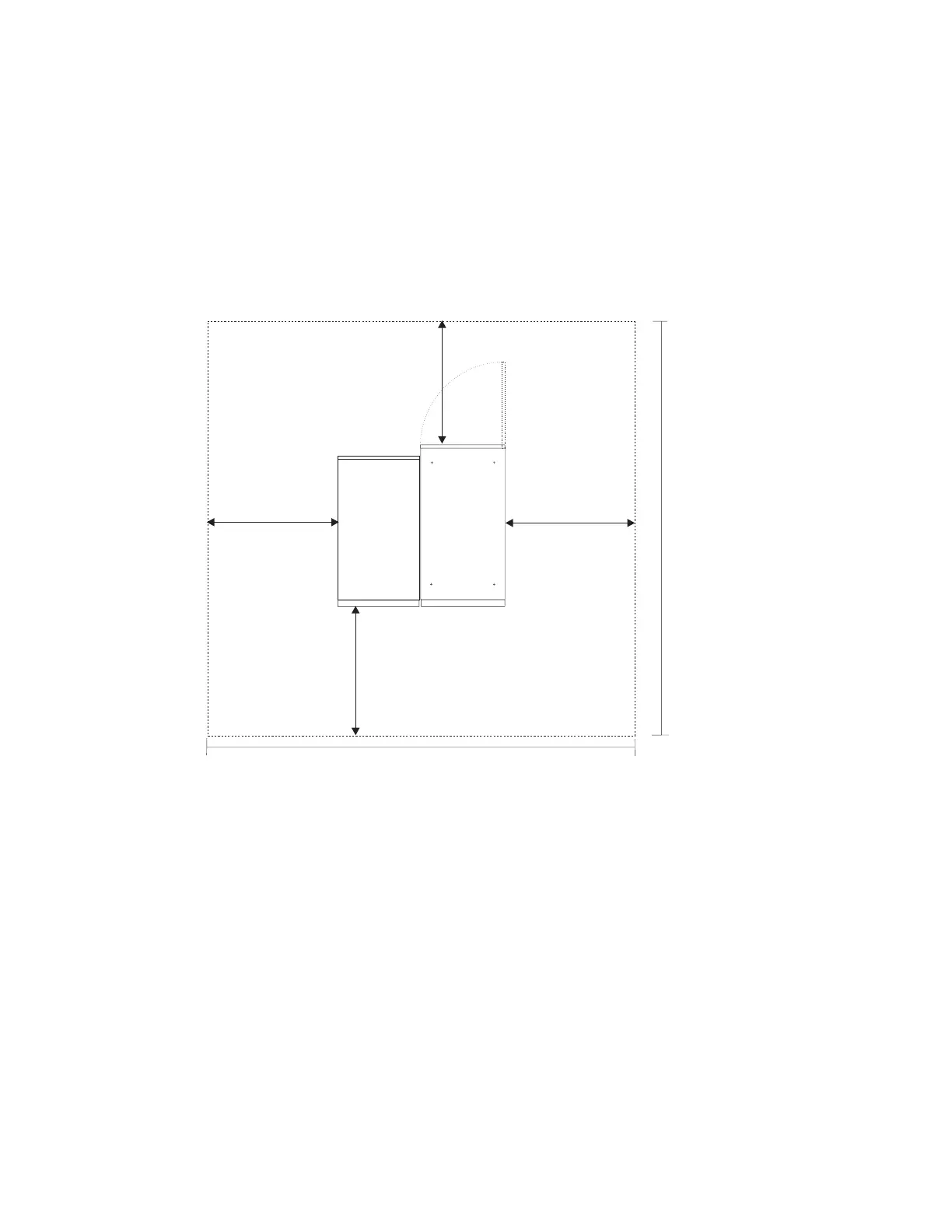

The amount of space needed by the units during service is indicated by large box of the footprint.
For multiple racks placed side by side, the left and right clearances apply only to the leftmost and
rightmost rack.
Note: If you plan to install an S80 or S85 in an SP System environment, see RS/6000 SP Planning
Volume 1, Hardware and Physical Environment (GA22-7280) for system planning information.
Rack Configuration for AC Systems or -48v DC Systems
Note: Rack units are large and heavy, they are not easily moved. Because maintenance activities require
access at both the front and back, extra room must be allowed. The footprint shows the radius of
the swinging doors on the I/O rack. The illustration shows the minimum space required.
3070 mm (120 in.)
2921 mm
(115 in.)
915 mm
(36 in.)
915 mm
(36 in.)
915 mm (36 in.)
Front
36 Site and Hardware Planning Information
