Chapter 7 Selection and Dimensions
7.1 Electrical Speciîš¿cations of the CS200

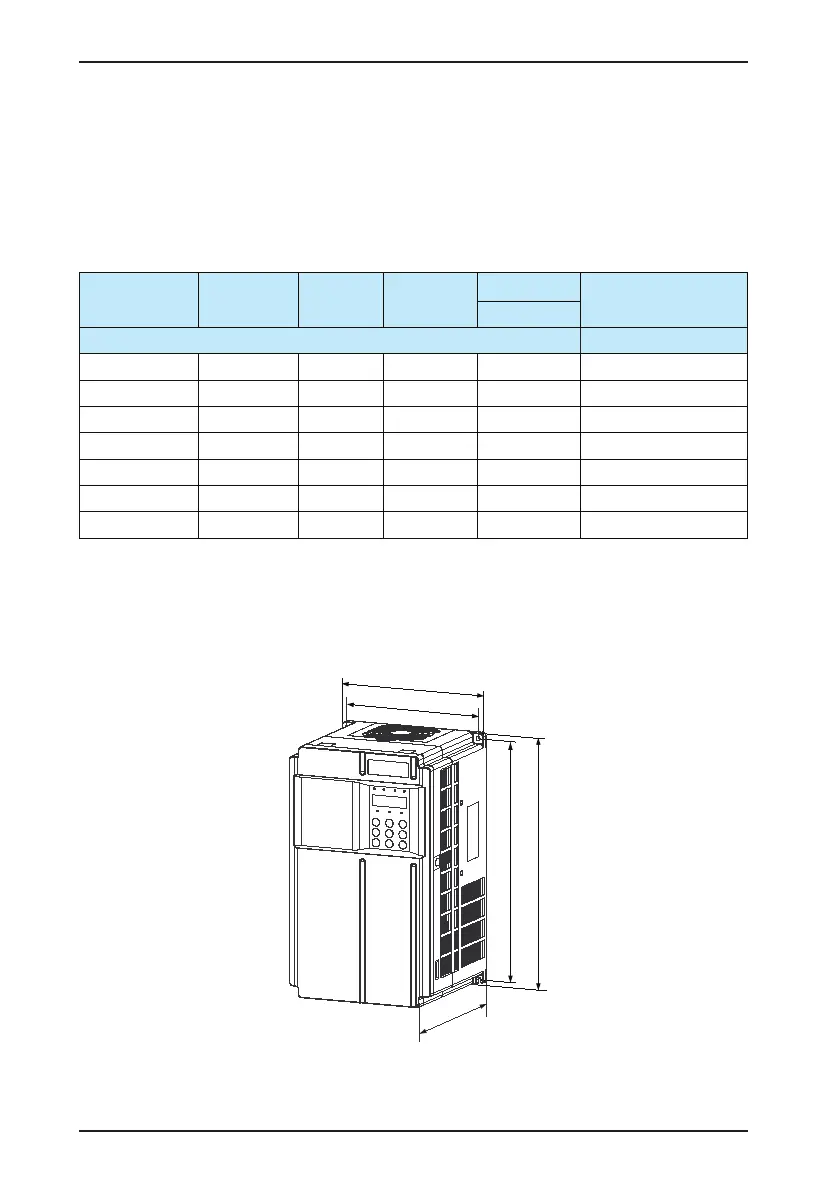

Table 7-1 Models and technical data of the CS200
AC Drive Model
Power Capacity
(kVA)
Input Current
(A)
Output Current
(A)
Adaptable Motor
Thermal Power
Consumption (kW)
kW
Three-phase 440 V, 50/60 Hz
CS200-4T18.5GB 45 49.5 37 18.5 0.651
CS200-4T22GB 54 59 45 22 0.807
CS200-4T30GB 52 57 60 30 1.01
CS200-4T37GB 63 69 75 37 1.20
CS200-4T45GB 81 89 91 45 1.51
CS200-4T55GB 97 106 112 55 1.80
CS200-4T75GB 127 139 150 75 1.84
Note: If the product of other voltage classes or power is required, contact the agent or Inovance.
7.2 Physical Appearance and Mounting Dimensions of the CS200
Figure 7-1 Physical appearance and mounting dimensions of the CS200 (plastic housing)
