Inovance CS200 User Manual

Chapter 4 Operations
- 43 -
4.2 Viewing and Modifying Function Codes
The operation panel of the CS200 adopts three-level interfaces, that is status display, function code and function
code setting value, as shown in the following gure.

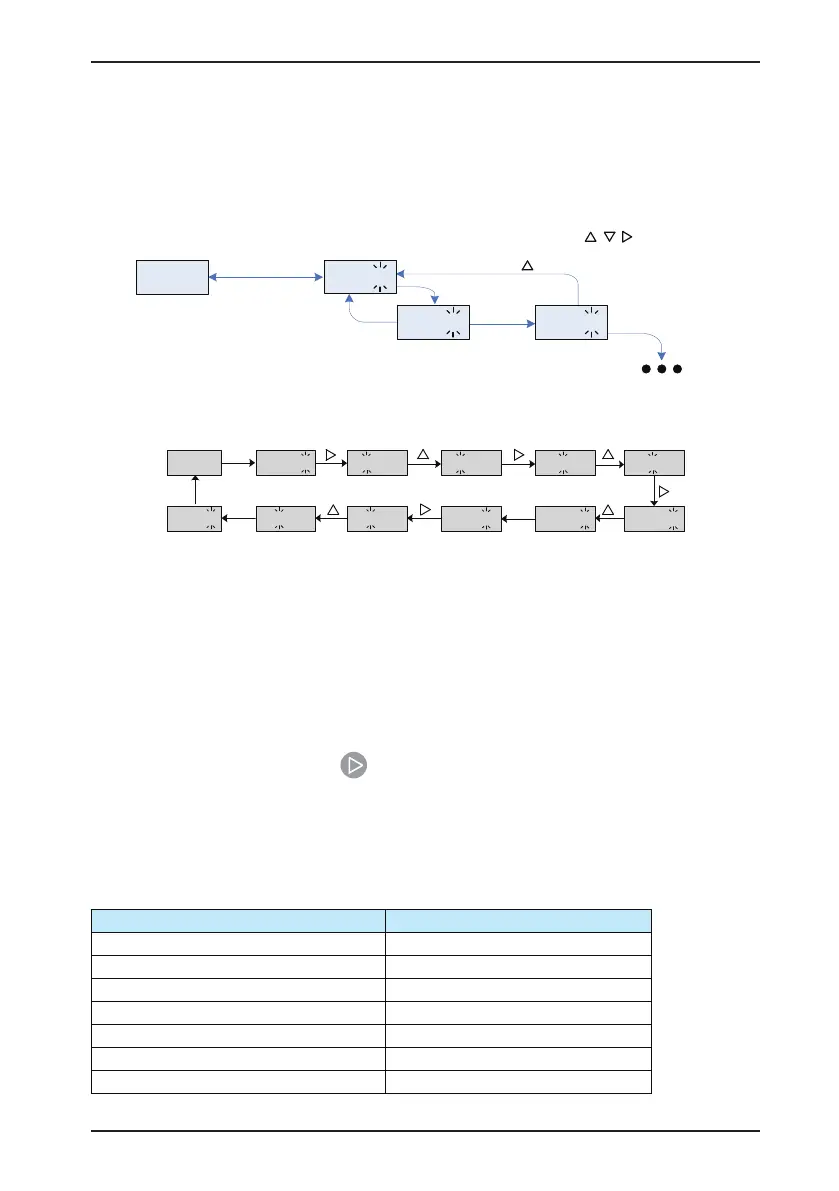

Figure 4-2 Operation procedure on the operation panel
Function code
PRG
Return
ENTER
To save
the setting
ENTER
PRG
Switchover
ENTER
Previous
function code
Next
function code
Stop/Running status
display
If there is a flashing digit, press
/
/
to modify the digit.
Parameter
value setting
50 00
.
b0 03
.
5 b0 04
.
Here is an example of modifying the value of b1.02 from 10.00 Hz to 15.00 Hz.
Figure 4-3 Example of modifying the parameter value
50. 00
ENTER
PRG
A0.00 A0.00
b0.00 b0.00 b1.00
b1.00
10.00
10.00
ENTER
b1.02
15.00
b1.03
PRG
In the parameter value setting interface, if the parameter has no blinking digit, it means that the parameter cannot
be modied. This may be because:
•
Such a function parameter is readable, such as monitoring parameters and running record parameters.
•
Such a function parameter cannot be modied in the running state and can only be modied at stop.
4.3 Status Parameters and Limit Abnormal Code of the CS200
4.3.1 Display of Status Parameters of the CS200
In the stop or running state, you can press on the operation panel to display status parameters.
In the running state, you can view ve parameters, such as frequency reference, the output synchronous frequency,
output current, output voltage and bus voltage.
In the stop state, you can only view the frequency reference and the bus voltage
4.3.2 Limit Abnormal Display Code of the CS200
Limit Abnormal Display Code
Up limit abnormal STOP1
Down limit abnormal STOP2
Forbid running abnormal STOP3
Door limit abnormal STOP4
Car top window limit abnormal STOP5
Overload limit abnormal STOP6
Remote lock abnormal STOP9
