Chapter 3 Mechanical and Electrical Installation
- 23 -
The CS200 series AC drive dissipates heat from the bottom to the top. When multiple AC drives are required to
work together, install them side by side.
For the application of installing multiple AC drives, if one row of the AC drives need to be installed above another
row, install an insulation guide plate to prevent the AC drives in the lower row from heating those in the upper row
and causing faults.

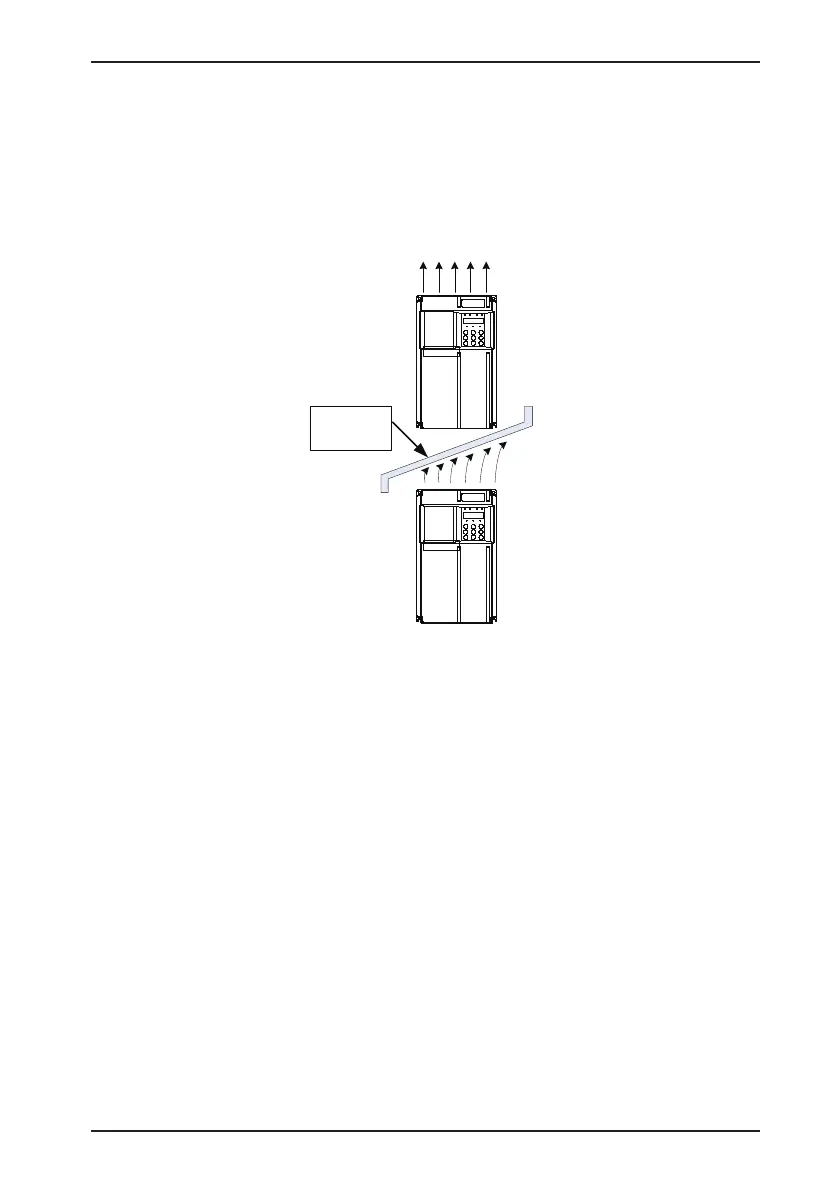

Figure 3-2 Installation of the insulation guide plate
Insulation
guide plate
CS200
CS200
