Chapter 4 Operations
- 51 -
4.14 Application Example of the CS200 Construction Elevator
The CS200 can implement integrated control of the construction elevator, that is, all external limit logics of the
construction elevator can be connected to the AC drive. The CS200 controls the external limit logics. This helps to
minimize the external wiring of the whole construction elevator control system and save contactors or PLC.
Various limit signals can be connected to the CS200, such as up limit signal, down limit signal, forbid running signal,
door limit signal, car top window limit signal, overload limit signal and slow-down limit signal.

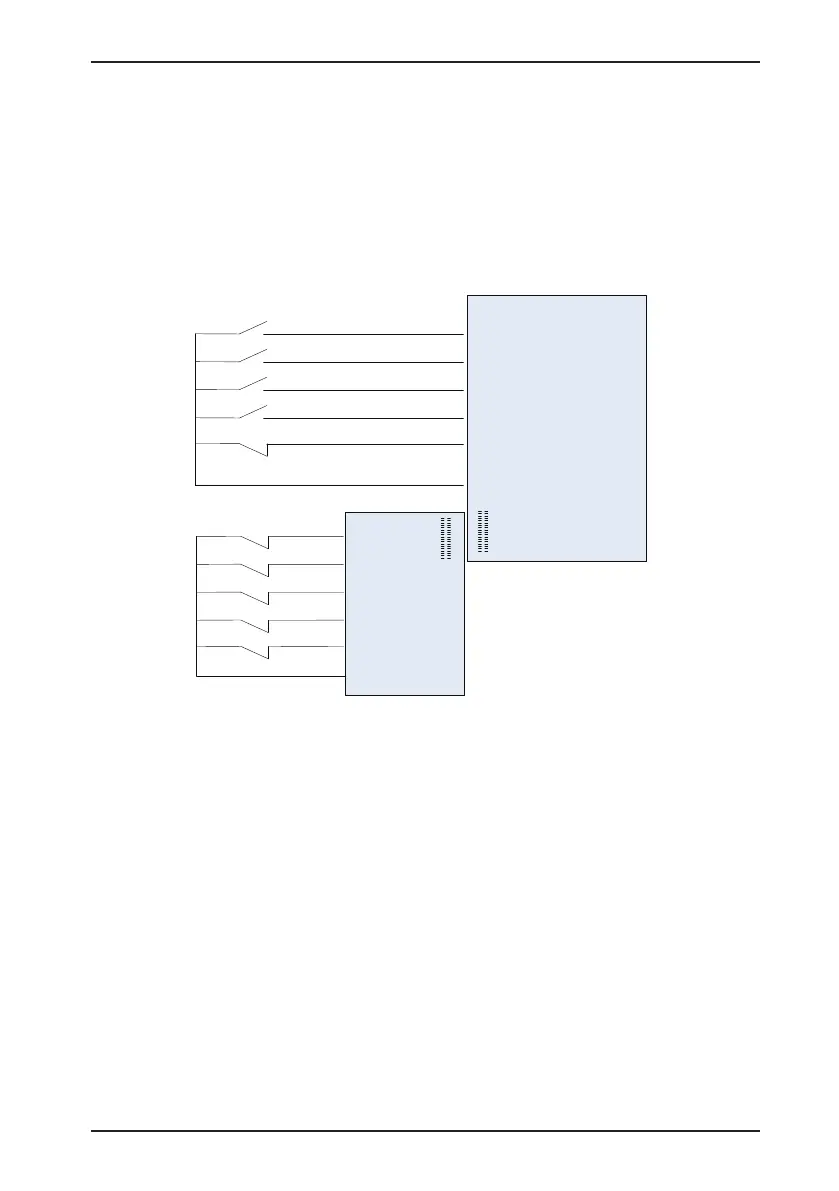

Figure 4-10 Example of Application Wiring of the CS200
DI1
DI2
DI3
DI4
DI5
CS200
MD38IO1
I/O
extension
card
DI6
DI7
DI8
DI9
DI10
Forward run
Reverse run
Multi-speed 1
Fault reset
Up limit
Down limit
Forbid running
Door limit
Car top window limit
Slow-down limit
COM
COM
When the CS200 detects the up limit signal, upward running is forbidden. When it detect the down limit signal,
downward running is forbidden.
when it detects the slow-down limig signal, the elevator switches over from the running frequency to
the min. frequency (b5.00/b5.04). When it detects other limit signals, the elevator running is forbidden.
When the CS200 receives the limit signal during running, it stops running automatically. For the stop mode, refer to
the descriptions of b7.07 to b7.09.
Note: If a limit signal is connected to the CS200, set the corresponding terminal for the related function in b3.01 to
b3.10. For details, see the descriptions of parameters in group b3.
