Goodrive350 series high-performance multi-function inverter Chapter 4
-18-
OK
NG
NG
A. Vertical installation
B. Horizontal installation
C. Transverse installation

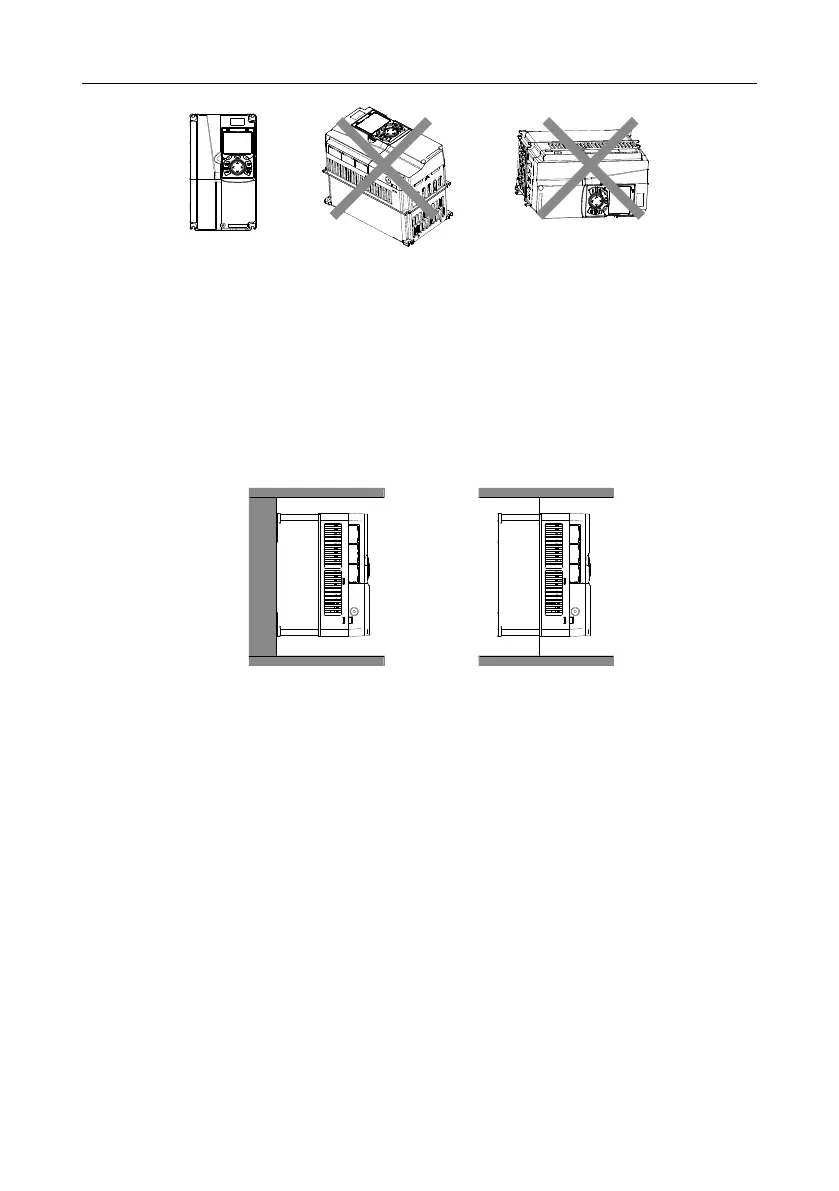

Fig 4.1 Installation direction of the inverter
4.2.3 Installation mode
There are three kinds of installation modes based on different inverter dimensions.
1. Wall-mounting: suitable for 380V 315kW and below inverters, and 660V 350kW and below
inverters;
2. Flange-mounting: suitable for 380V 200kW and below inverters, and 660V 220kW and below
inverters;
3. Floor-mounting: suitable for 380V 220–500kW inverters, and 660V 250–630kW inverters.
Wall-mounting
Flange-mounting
Fig 4.2 Installation mode
(1) Mark the position of the installation hole. See appendix for the position of installation hole;
(2) Mount the screws or bolts onto the designated position;
(3) Put the inverter on the wall;
(4) Tighten the fixing screws on the wall.
Note:
1. Flange-mounting plate is a must for 380V 1.5–75kW inverters that adopt flange-mounting
mode; while 380V 90–200kW and 660V 22–220kW models need no flange-mounting plate.
2. Optional installation base is available for 380V 220–315kW and 660V 250–350kW inverters.
The base can hold an input AC reactor (or DC reactor) and an output AC reactor.
