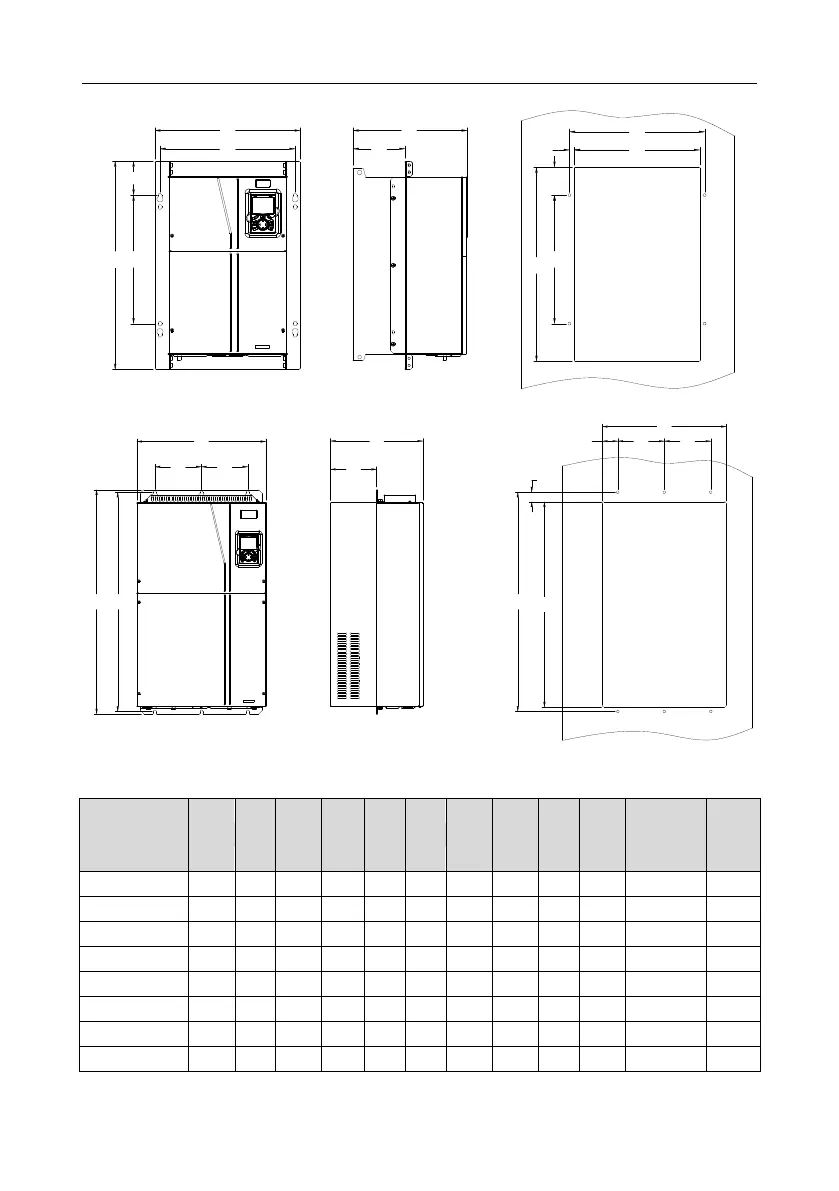

Fig C.9 Flange installation diagram of inverters of 380 V, 1.5 to 75 kW
W1
H1
D1
W2
H2
98.0
D2
W2
W3W4
H4
H2
H3
Fig C.10 Flange installation diagram of inverters of 380 V, 90 to 110 kW
W1
D1
W2 W2
D2
H2H1
W4
W3
W2
W2
H4
H2
H3
Fig C.11 Flange installation diagram of inverters of 380 V, 132 to 200 kW
Table C.2 Flange installation dimensions of 380 V inverters (unit: mm)
Inverter
specification
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
diameter
Fixing
screw
1.5kW–2.2kW
150.2
115
130
7.5
234
220
190
13.5
185
65.5
5
M4
4kW–5.5kW
150.2
115
130
7.5
234
220
190
13.5
201
83
5
M4
7.5kW
170.2
131
150
9.5
292
276
260
6
192
84.5
6
M5
11kW–15kW
191.2
151
174
11.5
370
351
324
12
220
113
6
M5
18.5kW–22kW
266
250
224
13
371
250
350.6
20.3
208
104
6
M5
30kW–37kW
316
300
274
13
430
300
410
55
223
118.3
6
M5
45kW–75kW
352
332
306
12
580
400
570
80
258
133.8
9
M8
90kW–110kW
418.5
361
389.5
14.2
600
559
370
108.5
330
149.5
10
M8
