INVT Goodrive350 Series User Manual

Goodrive350 series high-performance multi-function inverter Appendix C
-305-
Inverter
specification
W1
W2
W3
W4
H1
H2
H3
H4
D1
D2
Installation
hole
diameter
Fixing
screw
132kW–200kW
500
180
480
60
870
850
796
37
360
178.5
11
M10

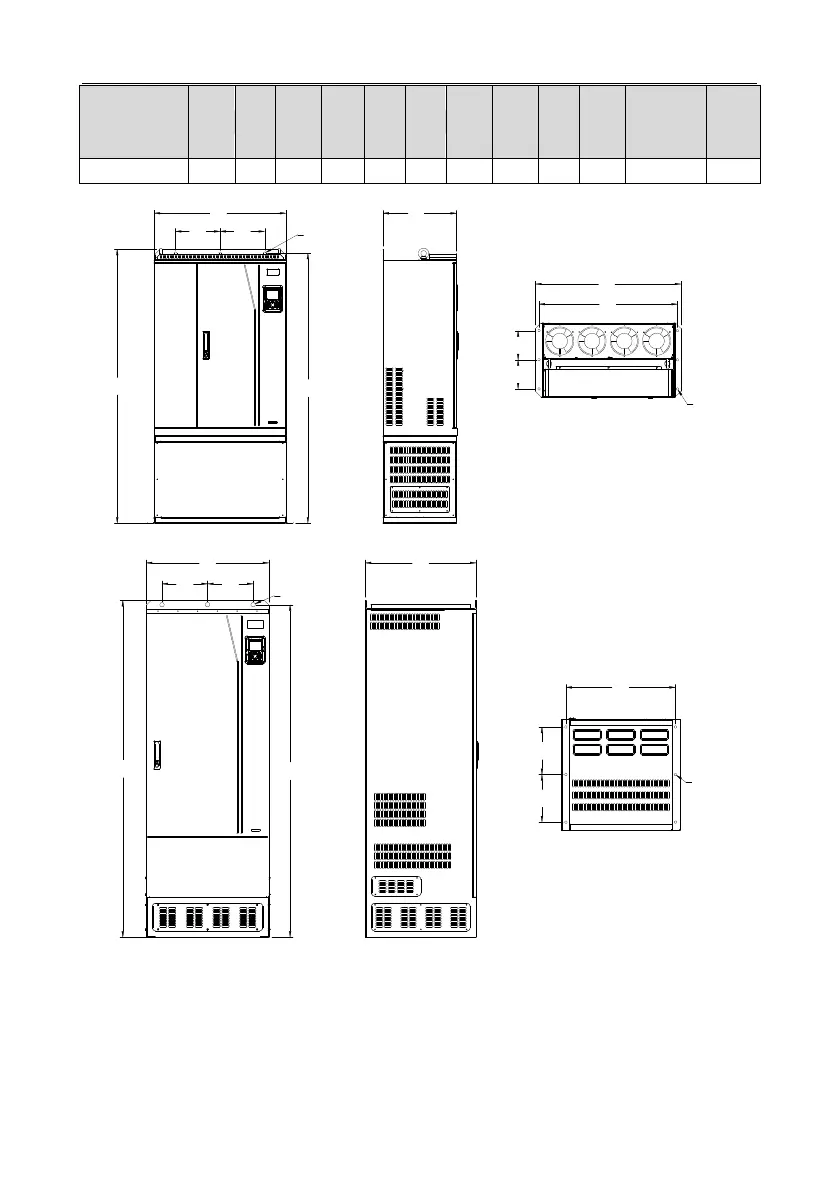

C.4.3 Floor installation dimensions
W4
W2
W2
H1
H2
D1
W1
W3
D2
D2
3- ø13.0
6- ø12.0
Fig C.12 Floor installation diagram of inverters of 380 V, 220 to 315 kW
W1
W2
W2
H1
H2
3- ø22.0
D1
D2
D2
W3
6- ø12.0
Fig C.13 Floor installation diagram of inverters of 380 V, 350 to 500 kW
