INVT Goodrive350 Series User Manual

Goodrive350 series high-performance multi-function inverter Chapter 5
-39-
01: GD350
16:02:35
Set frequency
P17.00 Hz
50.00
DC bus voltage
P17.11 V
540.0
0x0000
AboutMonitoring
Menu
Digital input terminal state
P17.12
01: GD350
16:02:35
HomepageReturn
Select
Common parameter setup
Parameter setup
State monitoring/fault record
Motor parameter autotuning
Parameter backup
System setup
01: GD350
16:02:35
EditReturn
Select
P00.10：Keypad setting frequency
P00.00：Speed control mode
P00.11：Acceleration time 1
P00.12：Deceleration time 1
P00.01：Running command channel
P00.13：Running direction selection
01: GD350
16:02:35
Device parameter group setup
Motor parameter group setup
Control parameter group setup
Terminal function group setup
Optional card function group setup
Default function group setup
01: GD350
16:02:35
Common parameter setup
Parameter setup
State monitoring/fault record
Motor parameter autotuning
Parameter backup
System setup
01: GD350
16:02:35
State monitoring
Fault record
Fault state
01: GD350
16:02:35
Common parameter setup
Parameter setup
State monitoring/fault record
Motor parameter autotuning
Parameter backup
System setup
Clear fault history
Modified parameters
01: GD350
16:02:35
AddReturn
Select
Ensure the motor nameplate parameters are set
correctly!
01: GD350
16:02:35
Common parameter setup
Parameter setup
State monitoring/fault record
Motor parameter autotuning
Parameter backup
System setup
01: GD350
16:02:35
Copy function parameter to storage area 1
Copy function parameter to storage area 2
01: GD350
16:02:35
Common parameter setup
Parameter setup
State monitoring/fault record
Motor parameter autotuning
Parameter backup
System setup
01: GD350
16:02:35
Common parameter setup
Parameter setup
State monitoring
Fault record
Parameter backup
System setup
01: GD350
16:02:35
Language selection
Time/date
Backlight brightness adjustment
Backlight time adjustment
Copy function parameter to storage area 3
Restore function parameter to default value
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
Forward
Local Ready
HomepageReturn
Select
HomepageReturn
Select
HomepageReturn
Select
HomepageReturn
Select
HomepageReturn
Select
HomepageReturn
Select
HomepageReturn
Select
Add
Return
Select
HomepageReturn
Select

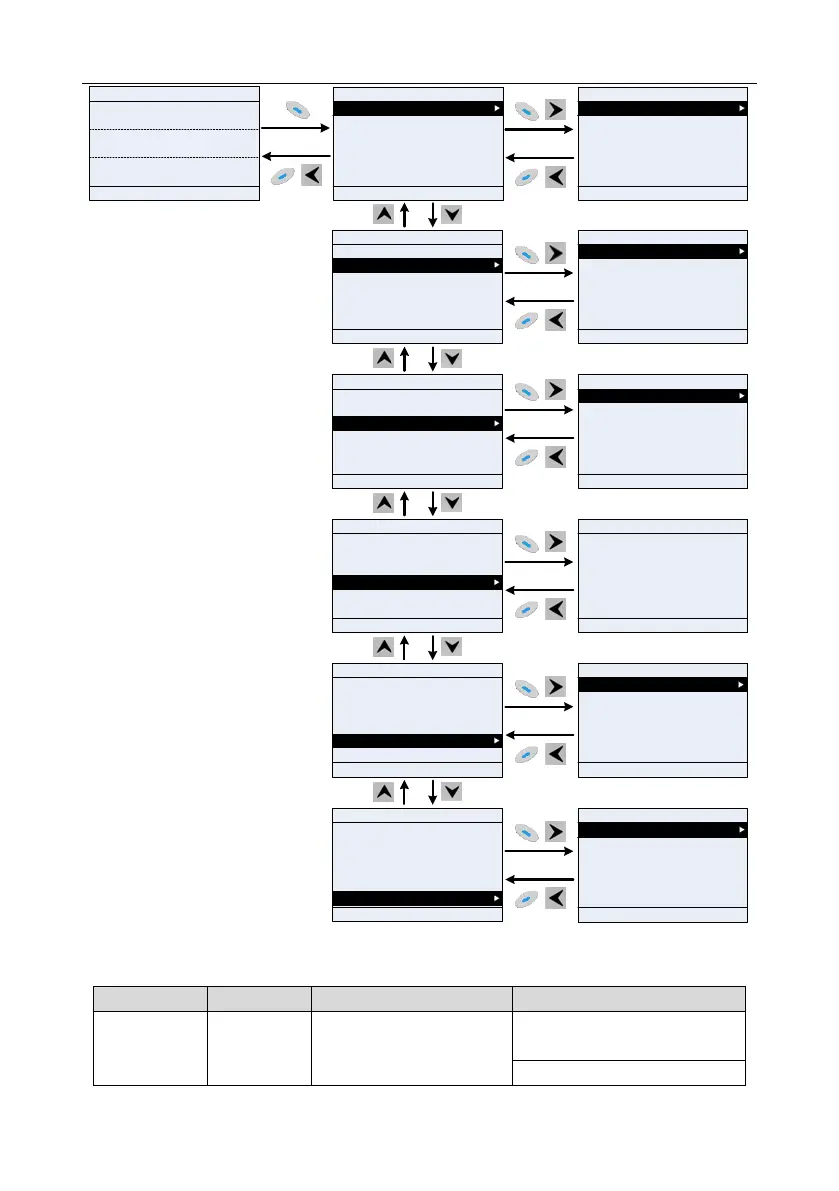

Fig 5.7 Enter/exit menu diagram 2
The keypad menu setup is shown as below.
First-level
Second-level
Third-level
Fourth-level
Common
parameter
setup
/
/
P00.10: Set frequency via
keypad
P00.00: Speed control mode
