Goodrive350 series high-performance multi-function inverter Chapter 4
-27-
380V
45-110kW
(inclusive)
Grounding resistor is less than 10 ohm
Grounding terminal for safe
protection; each machine must
carry two PE terminals and
proper grounding is required
Note:
1. Do not use asymmetrical motor cable. If there is a symmetrical grounding conductor in the motor
cable besides the conductive shielded layer, ground the grounding conductor on the inverter end
and motor end.
2. Brake resistor, brake unit and DC reactor are optional parts.
3. Route the motor cable, input power cable and control cables separately.
4. "Null" means this terminal is not for external connection.
4.3.3 Wiring process of the main circuit terminals
1. Connect the grounding line of the input power cable to the grounding terminal (PE) of the
inverter, and connect the 3PH input cable to R, S and T terminals and tighten up.
2. Connect the grounding line of the motor cable to the grounding terminal of the inverter, and
connect 3PH motor cable to U, V and W terminals and tighten up.
3. Connect the brake resistor which carries cables to the designated position.
4. Fix all the cables outside the inverter mechanically if allowed.

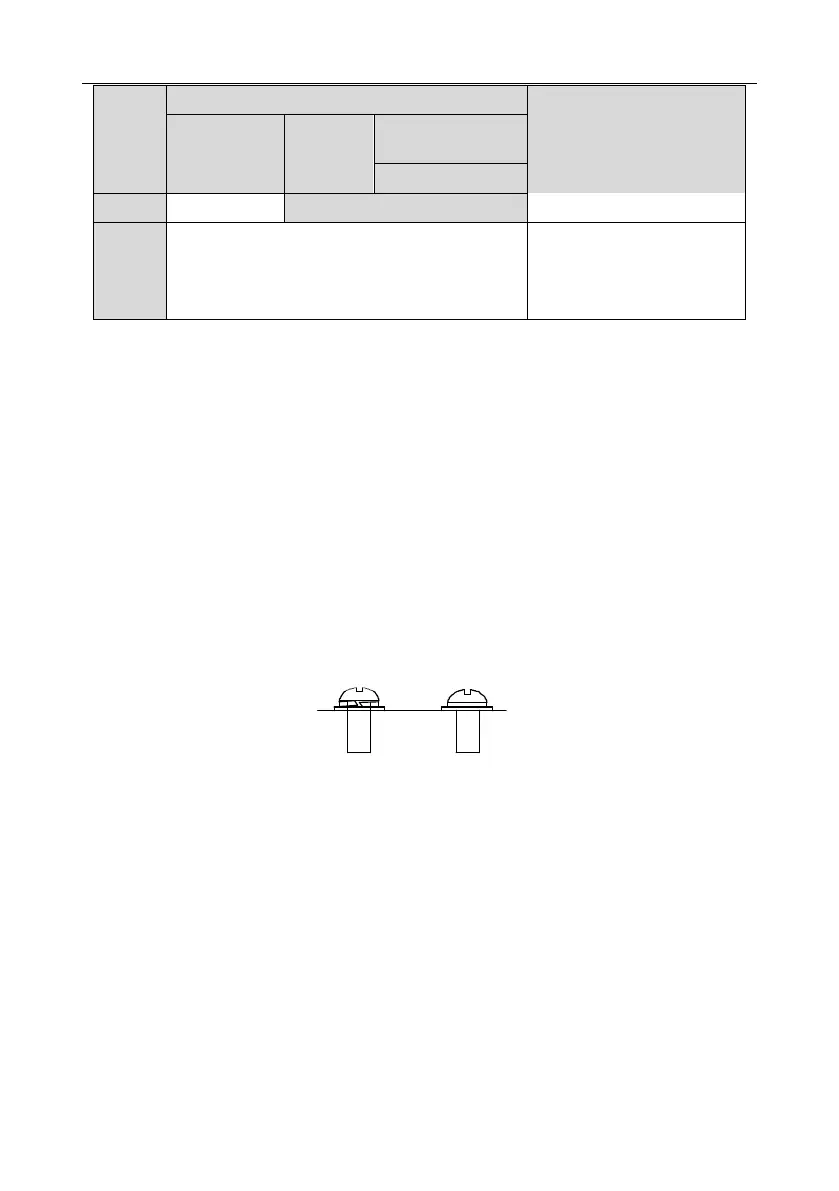

The screw is
not fastened
The screw is
fastened
YNG
Fig 4-17 Screw installation diagram
