INVT Goodrive350 Series User Manual

Goodrive350 series high-performance multi-function inverter Chapter 5
-44-
"parameter displayed in stop state" list or "parameter displayed in running state" list as shown below.
01: GD350
16:02:35
HomepageReturn
Confirm
Add to the parameter list displayed in stop state
01: GD350
16:02:35
Forward
Local Ready
AddReturn
Select
P17.00：Setting frequency
P17.01：Output frequency
P17.02：Ramps reference frequency
P17.03：Output voltage
P17.04：Output current
P17.05：Motor speed
Add to the parameter list displayed in running state
01: GD350
16:02:35
Ensure to add to the parameter list
displayed in stop state?
Forward
Local Ready
Forward
Local Ready
HomepageReturn Confirm
01：GD350
16:02:35
主页返回
确定
添加到停机状态显示参数
01：GD350
16:02:35
添加返回
选择
P17.00: 设定频率
P17.01：输出频率
P17.02：斜坡给定频率
P17.03：输出电压
P17.04：输出电流
P17.05：电机转速
添加到运行状态显示参数
01：GD350
16:02:35
主页返回
确定
确认添加到运行状态显示参数？
Forward
Local Ready
01：GD350
16:02:35
主页返回
确定
添加到停机状态显示参数
01：GD350
16:02:35
添加返回
选择
P17.00: 设定频率
P17.01：输出频率
P17.02：斜坡给定频率
P17.03：输出电压
P17.04：输出电流
P17.05：电机转速
添加到运行状态显示参数
01：GD350
16:02:35
主页返回
确定
确认添加到运行状态显示参数？
Forward
Local Ready
01：GD350
16:02:35
主页返回
确定
添加到停机状态显示参数
01：GD350
16:02:35
添加返回
选择
P17.00: 设定频率
P17.01：输出频率
P17.02：斜坡给定频率
P17.03：输出电压
P17.04：输出电流
P17.05：电机转速
添加到运行状态显示参数
01：GD350
16:02:35
主页返回
确定
确认添加到运行状态显示参数？
Forward
Local Ready
01: GD350
16:02:35
HomepageReturn
Confirm
Add to the parameter list displayed in stop state
01: GD350
16:02:35
AddReturn
Select
P17.00：Setting frequency
P17.01：Output frequency
P17.02：Ramps reference frequency
P17.03：Output voltage
P17.04：Output current
P17.05：Motor speed
Add to the parameter list displayed in running state
01: GD350
16:02:35
HomepageReturn
Confirm
Ensure to add to the parameter list
displayed in running state?
Forward
Local Ready
Forward
Local Ready Forward
Local Ready

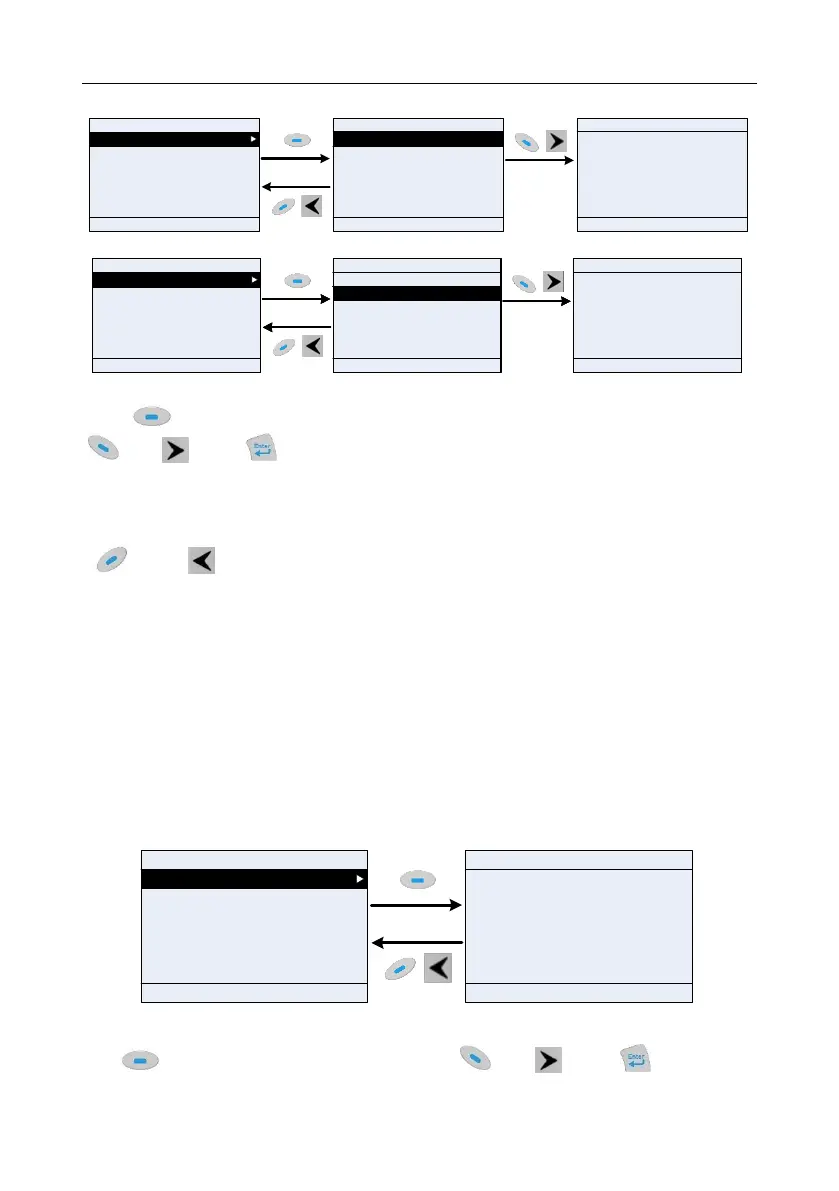

Fig 5.11 Add parameter diagram 1
Press key to enter parameter addition interface, select the operation needed, and press
key, key or key to confirm the addition operation. If this parameter is not included in
the "parameter displayed in stop state" list or "parameter displayed in running state" list, the
parameter added will be at the end of the list; if the parameter is already in the "parameter displayed
in stop state" list or "parameter displayed in running state" list, the addition operation will be invalid. If
key or key is pressed without selecting addition peration in "Addition" interface, it will
return to monitoring parameter list menu.
Part of the monitoring parameters in P07 HMI group can be added to the "parameter displayed in stop
state" list or "parameter displayed in running state" list; All the parameters in P17, P18 and P19 group
can be added to the "parameter displayed in stop state" list or "parameter displayed in running state"
list.
Up to 16 monitoring parameters can be added to the "parameter displayed in stop state" list; and up
to 32 monitoring parameters can be added to the "parameter displayed in running state" list.
5.4.4 Add parameter to common parameter setup list
In fourth-level menu of "parameter setup" menu, the parameter in the list can be added to the
"common parameter setup" list as shown below.
01：GD350
16:02:35
Forward
Local Ready
AddReturn
Select
P01.00：Running mode of start
P01.01：Starting frequency of direct start
P01.02：Hold-up time of starting frequency
P01.03：Brake current before start
P01.04：Brake time before start
P01.05：Acceleration/deceleration mode selection
01：GD350
16:02:35
HomepageReturn
Confirm
Ensure to add to common
parameter setup?
Forward
Local Ready
Fig 5.12 Add parameter diagram 2
Add key to enter addition interface, and press key, key or key to confirm
