Rev. 2.0
Maintenance Guide
15-1
DANGER
To prevent any trouble caused by accidental machine start, always
shut-down the power before starting the maintenance and
adjustment work.
[15] AUTO BOARD WIDTH ADJUSTMENT (OPTIONAL)
15-1. Assembling the AWC Bracket
1) Assemble the AWC MOTOR ASM d to the AWC BRACKET E c with the screws e.
2) Assemble so that the label B is faced upward.
3) Connect the grounding cable together with the part A.
4) Pass the AWC PULLEY A f through the motor shaft and secure it with the screws g.
∗ Arrange the end face of the part C.
∗ Carefully check the pulley set screw position.
Ａ
②
Ｃ
③ ① ④
Ｂ

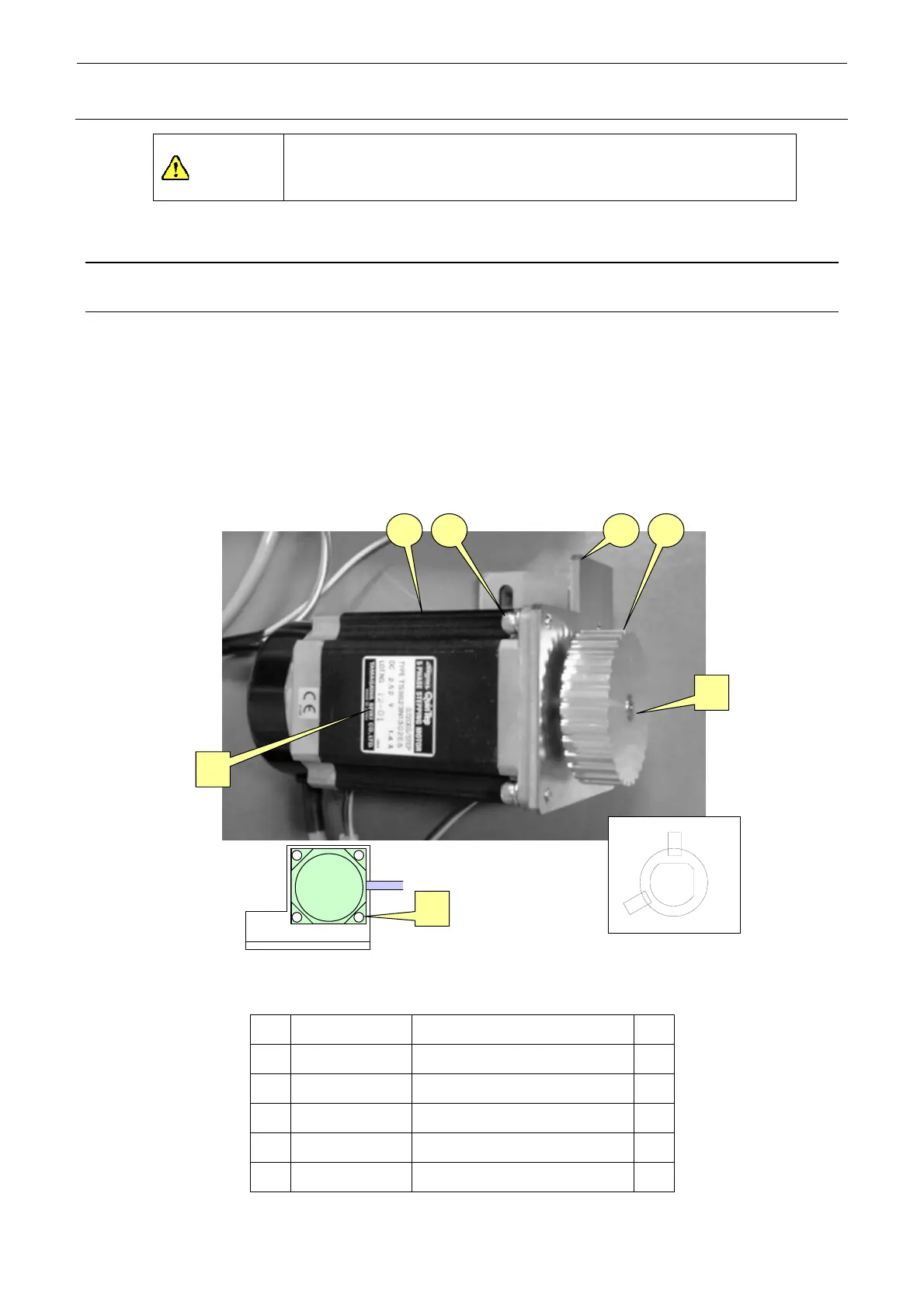

Figure 15-1-1
Part No. Part name Q’ty
c
E2163725000 AWC BRACKET E 1
d
40048077 AWC MOTOR ASM 1
e
SL6041292TN SCREW M4 L=12 4
f
E2153725000 AWC PULLEY A 1
g
SM8040602TP SCREW M4X0.7 L=6 2
To Next Page
