10) If the speed controller has also been replaced, it is necessary to carry out the adjustment
before mounting the release bar.
<Procedure>

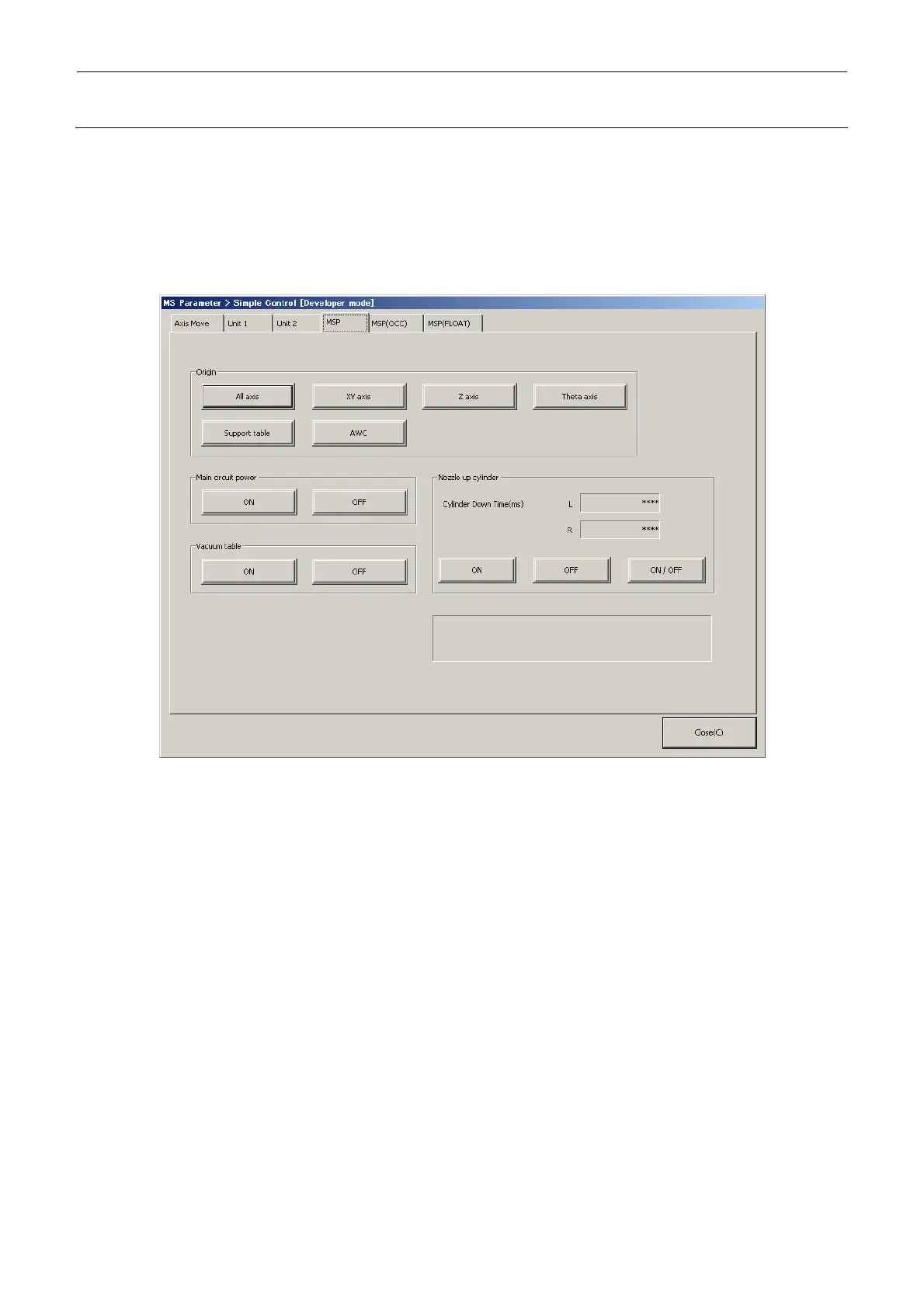

c Enter the MS Parameter and display [Simple Control]-[MSP]. In this status, press the
emergency stop button.
d Select [nozzle up cylinder] and turn ON or OFF the cylinder to adjust the displayed
time (msec.) to the specification value. Adjust the time by turning the knob of the
speed controller.
Specification value: Air cylinder down time 120±5 msec.
(The difference between the left and right is 5 msec. or less.)
e After the adjustment has been completed, secure the knob firmly.
Manually operate the solenoid valve to check that the release bar moves up or
down smoothly.
