JUKI KE-3010 User Manual

Rev. 2.0
Maintenance Guide
1-59

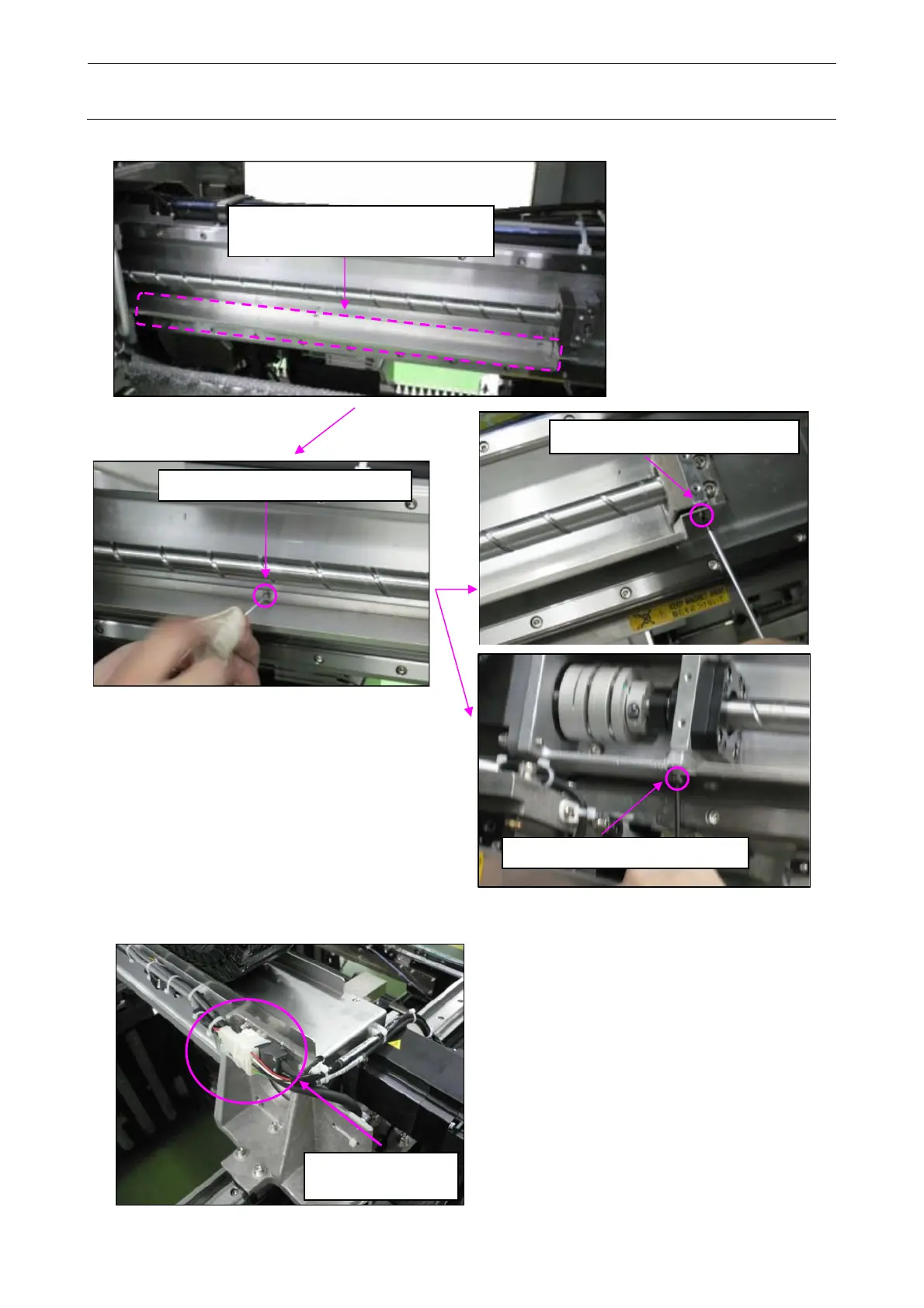

(2) Detach the X_OIL_GUARD_U_L.
(3) Disconnect the X_MOTOR cable.
Remove SM3030552TN (4 pcs.).
Remove SM3040652TN (1 pc.).
Detach the X_OIL_GUARD_U_L
(bottom).
Remove SM3040652TN (1 pc.).
Disconnect the
connector.

JUKI KE-3010 Specifications

General

Model	KE-3010
Placement Accuracy	±0.05mm
Component Size (Chip)	0402 (1005) - 20mm x 20mm
Component Size (QFP)	Up to 20mm x 20mm
Feeder Capacity	Up to 120 feeders (8mm)
Number of Tape Feeders	120
Board Size	L50 x W50 mm to L510 x W460 mm
Power Supply	AC 200V/220V, 50/60Hz
Component Range	0402 (01005 inch) to 74 mm square components, height: 25.5 mm

Summary

Head Unit Maintenance

Replacing and Adjusting the Head Unit

Procedure for replacing and adjusting head unit components.

Replacing the Motor

Steps for replacing the Z-motor and θ-motor for various heads.

Replacing the T-Sensor

Procedure to replace the T-sensor on the head unit.

Parts Around the Head

Replacing Solenoid Valve Components

Steps for replacing solenoid valves and associated filters.

Replacing the Bad Mark Sensor (Optional)

Procedure for replacing and adjusting the bad mark sensor assembly.

Replacing the HMS

Guide for replacing the HMS head and adjusting its height.

OCC Assembly Maintenance

Replacing the OCC Assembly

Procedure for replacing the entire OCC assembly unit.

Replacing the CCD Camera and Lens

Steps to replace the CCD camera and lens for focus adjustment.

Replacing OCC Coaxial/Angle Light Board Assemblies

Instructions for replacing OCC light board assemblies.

X-Y Unit Maintenance

Replacing the Servomotor

Procedure for replacing the servomotor in the X-Y unit.

Replacing the Magnescale

Procedure for replacing the magnescale on the X-Y unit.

Replacing Limit and Origin Near Sensors

Steps to replace limit sensors and origin near sensors.
