Kaco blueplanet 125 TL3 Operating Instruction

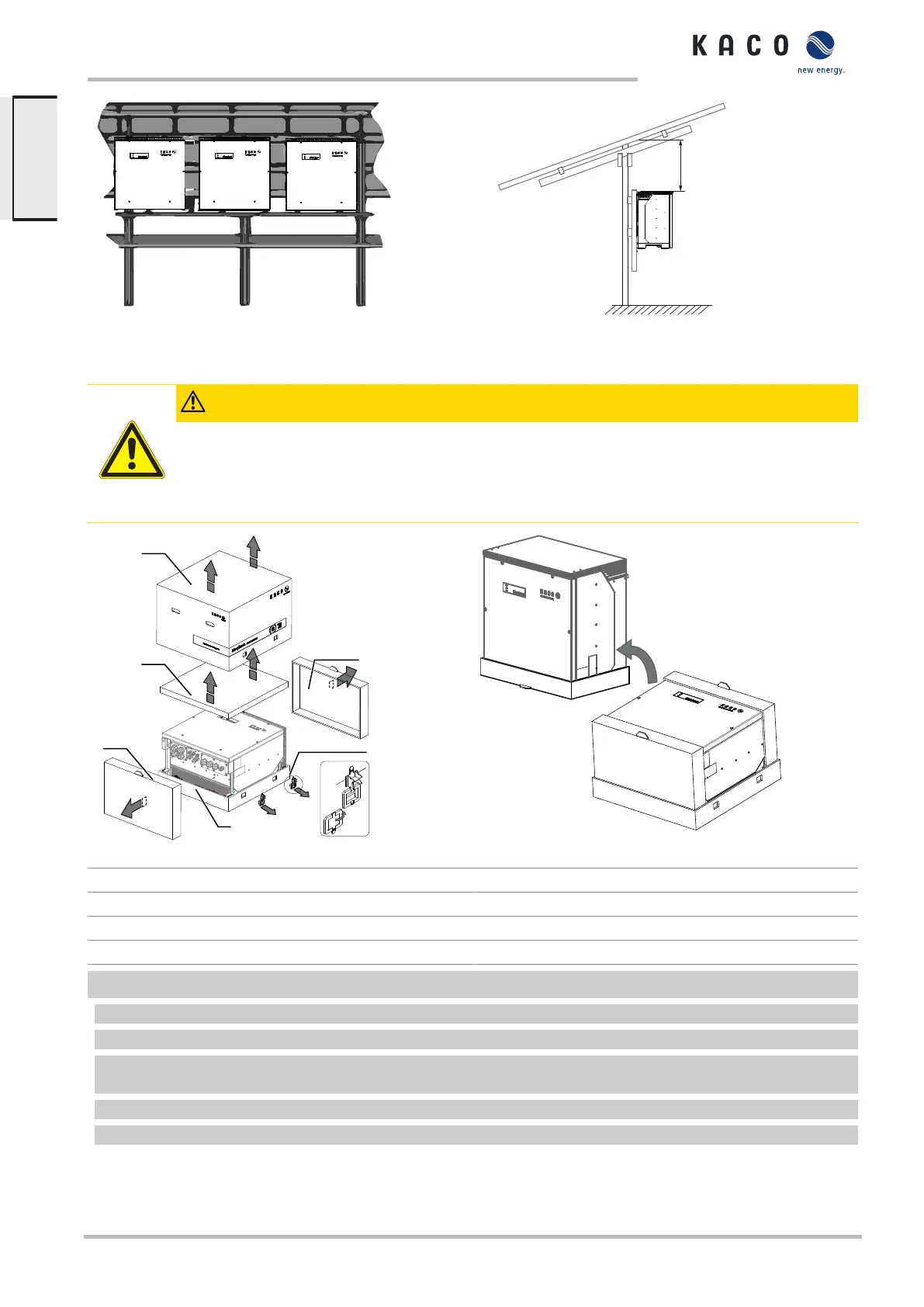

Fig.6: Free-standing mounting under PV system
300 mm
Fig.7: Mounting instruction under PV system
6.2 Unpacking the device
CAUTION
Risk of injury caused by excessive physical strain.
Lifting the device, for transport, relocation and assembly, can result in injuries (e.g. back injuries).
› Only lift the device using the openings provided.
› The device must be transported and installed by at least 2 persons.
DETAIL Z4:1
Z
2
1
3
4
5
6
Fig.8: Open the package Fig.9: Raise the device
Key
1 Cover 4 Base
2 Side section - upper 5 Side section - lower
3 Clamp (4x) 6 Cardboard packaging with mount and mounting kit
↻ The device is transported to the installation location.
1 Remove the plastic band from the pallet and packaging.
2 Pull the clamp off the packaging.
3 Pull the hood upwards to remove it and place the cardboard packaging to one side together with the mount and ac-
cessories.
4 Set the unit with base and side sections upright.
5 Remove the top side section and base from the device.
» If the unit is in the correct installation position: Proceed with the installation of the mount.
