Kaco blueplanet 125 TL3 Operating Instruction

6.3 Fastening the mount
CAUTION
Hazard when using unsuitable fixing materials!
If unsuitable fixing materials are used, the device could fall and persons in front of the device may be seri-
ously injured.
› Use only fixing materials that are suitable for the mounting base. The fastening materials supplied are
only suitable for masonry and concrete.
› Only install the device in an upright position.
153 mm
A
A
B
C
D
1
2
3
4
5
6
75 mm
A
Detail A

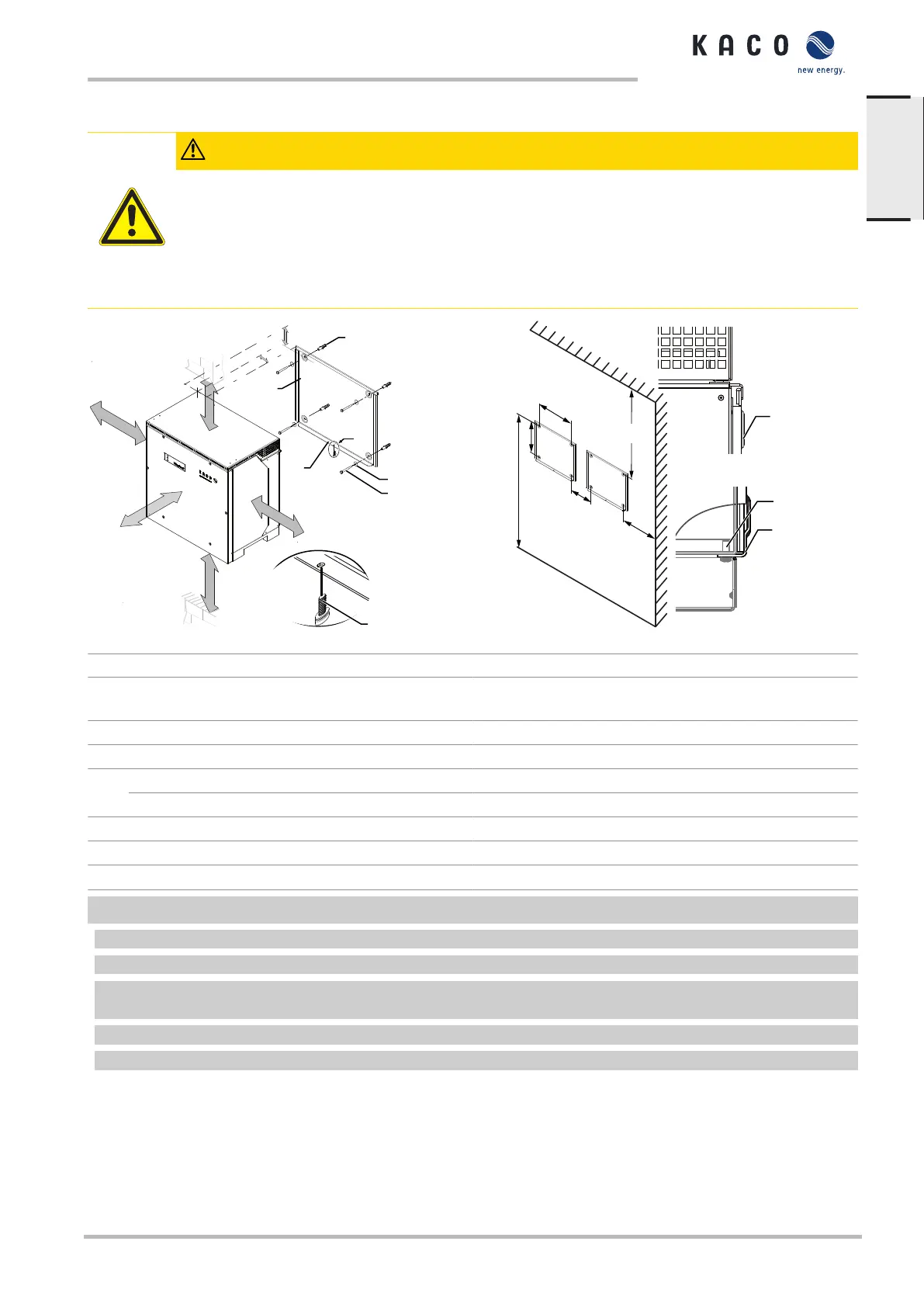

Fig.10: Minimum clearances for wall mounting
1
6
5
270 mm
475 mm
475 mm
270 mm
1)
1)
1066 mm
458 mm
550 mm
453 mm
1543 mm
2)
1)
1)
Fig.11: Wall mounting
Key
1 Mount 4 Screw for mounting (4x) [SW 13 / Fastening the
mount [See section6.3}Page17]]
2 Fixings for mounting [S12 – Ø 12mm/ 90mm]* 5 Screw for securing purposes (1x)
3 Lock washer 6 Bracket to store the device
A Minimum clearance: 120
1)
Minimum clearance excluding device:270
Recommended clearance: 400
1)
Recommended clearance excluding device: 475
B Minimum clearance: 300 - -
C Minimum clearance: 500 - -
D Recommended clearance: 1000 ²) Recommended clearance with DC breaker: 1543
↻ Cardboard packaging with mount and mounting kit removed from the packaging and opened.
1 Mark the mounting position on the wall surface according to the position of the mount by drawing a line.
2 Mark the positions of the drill holes using the slot in the mount.
NOTE:The minimum clearances between two devices, or the device and the ceiling or floor have already been
taken into account in the diagram.
3 Fix the mount to the wall using suitable mounting fixtures from the mounting kit.
NOTE:Make sure that the mount is oriented correctly.
» Proceed with the installation of the device.
KACO blueplanet 87.0 TL3 KACO blueplanet 92.0 TL3 KACO blueplanet 110 TL3 KACO blueplanet 125 TL3
KACO blueplanet 137 TL3 KACO blueplanaet 150 TL3
Page 17
EN
