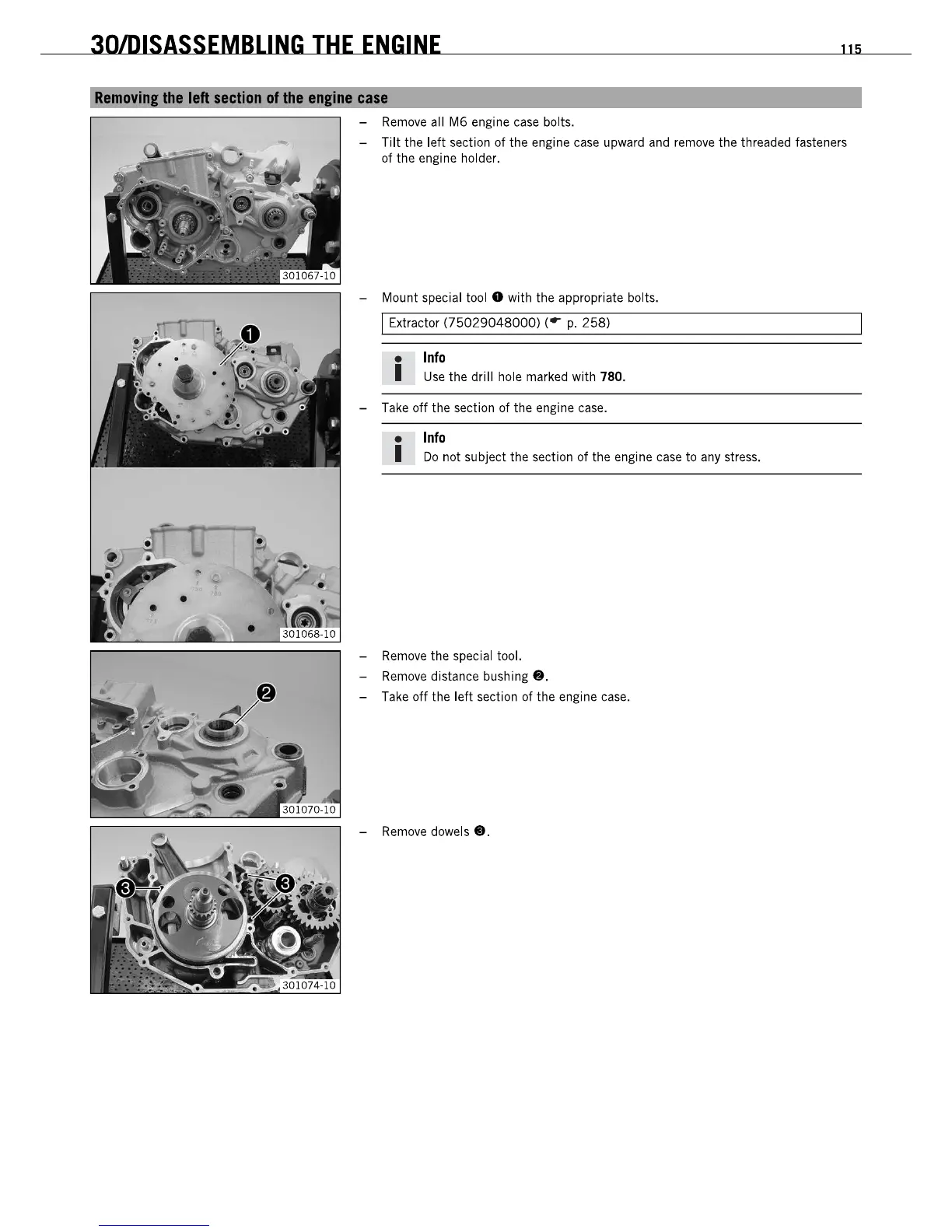

301DISASSEMBLING
THE
ENGINE
115
Removinl
the
left
section
of
the
enline
case
- Remove all
M6
engine case bolts.
-
Tilt
the
left
section of
the
engine case upward
and
remove the threaded fasteners
of the engine holder.
- Mount special tool
e with the appropriate bolts.
I Extractor
(75029048000)
(
e-
p.
258)
•
Info
I
Use
the drill hole marked with 780.
- Take
off
the
section of the engine case.
•
Info
I
Do
not subject the section of the engine case to any stress.
- Remove
the
special tool.
- Remove distance bushing
e.
- Take
off
the
left
section
of
the engine case.
- Remove dowels
e.
