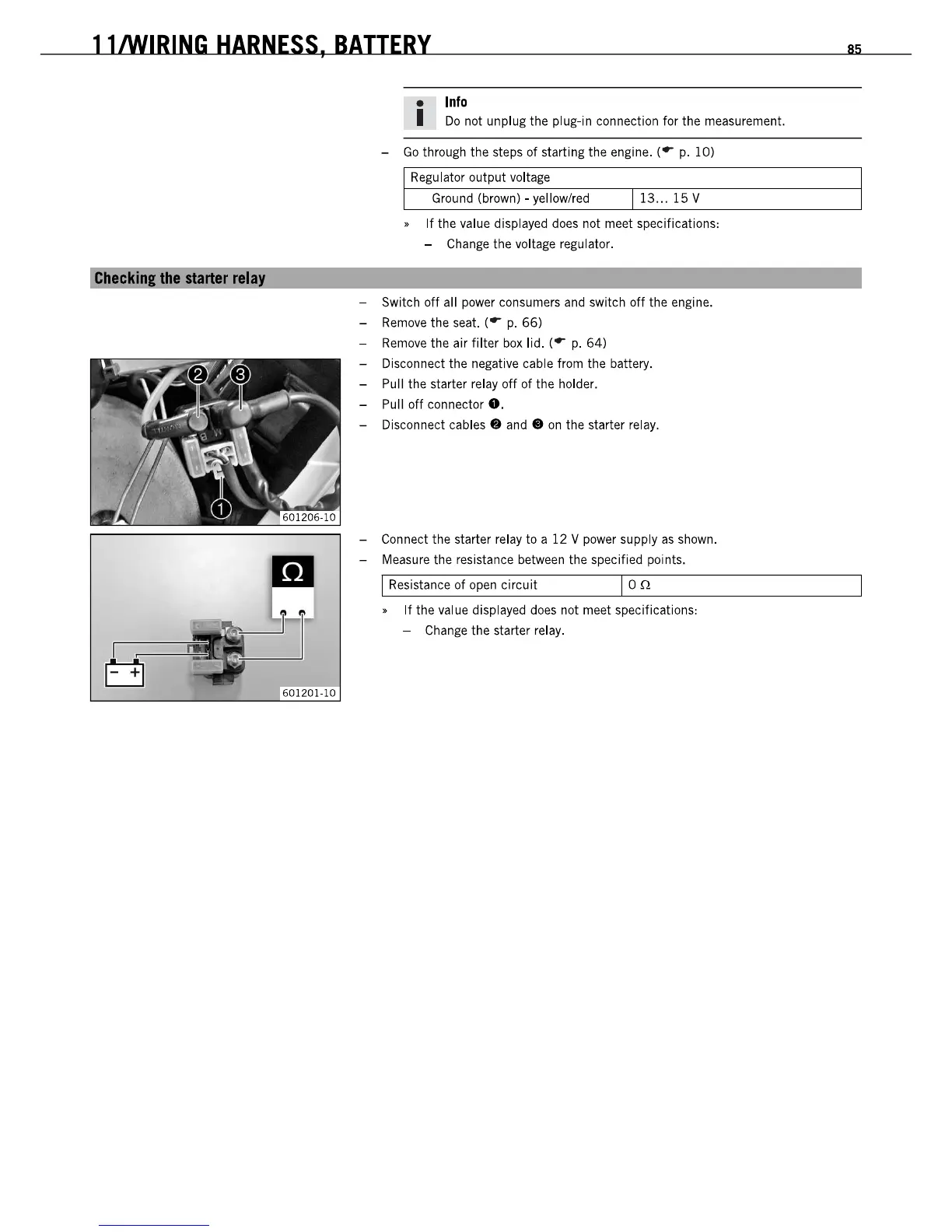

lllWlRING HARNESS, BATTERY 85
Cbeckinllhe stal1l!r rela,
• Info
I Do not unplug the plug-in connection for the measurement.
-
Go through the steps of starting the engine. ( .. p. 10)
Regulator output voltage
Ground (brown) - yellow/red
13 ... 15 V
> If the value displayed does not meet specifications:
- Change the voltage regulator.
- Switch off all power consumers and switch off the engine.
- Remove the seat. (
.. p. 66)
- Remove the air filter box lid. ( .. p. 64)
- Disconnect the negative cable from the battery.
- Pull the starter relay
off of the holder.
- Pull
off connector e.
- Disconnect cables e and e on the starter relay.
- Connect the starter relay to a 12 V power supply as shown.
- Measure the resistance between the specified points.
I Resistance of open circuit
Ion
> If the value displayed does not meet specifications:
- Change the starter relay.
lllWlRING HARNESS, BATTERY 85
Cbeckinllhe stal1l!r rela,
• Info
I Do not unplug the plug-in connection for the measurement.
-
Go through the steps of starting the engine. ( .. p. 10)
Regulator output voltage
Ground (brown) - yellow/red
13 ... 15 V
> If the value displayed does not meet specifications:
- Change the voltage regulator.
- Switch off all power consumers and switch off the engine.
- Remove the seat. (
.. p. 66)
- Remove the air filter box lid. ( .. p. 64)
- Disconnect the negative cable from the battery.
- Pull the starter relay
off of the holder.
- Pull
off connector e.
- Disconnect cables e and e on the starter relay.
- Connect the starter relay to a 12 V power supply as shown.
- Measure the resistance between the specified points.
I Resistance of open circuit
Ion
> If the value displayed does not meet specifications:
- Change the starter relay.
