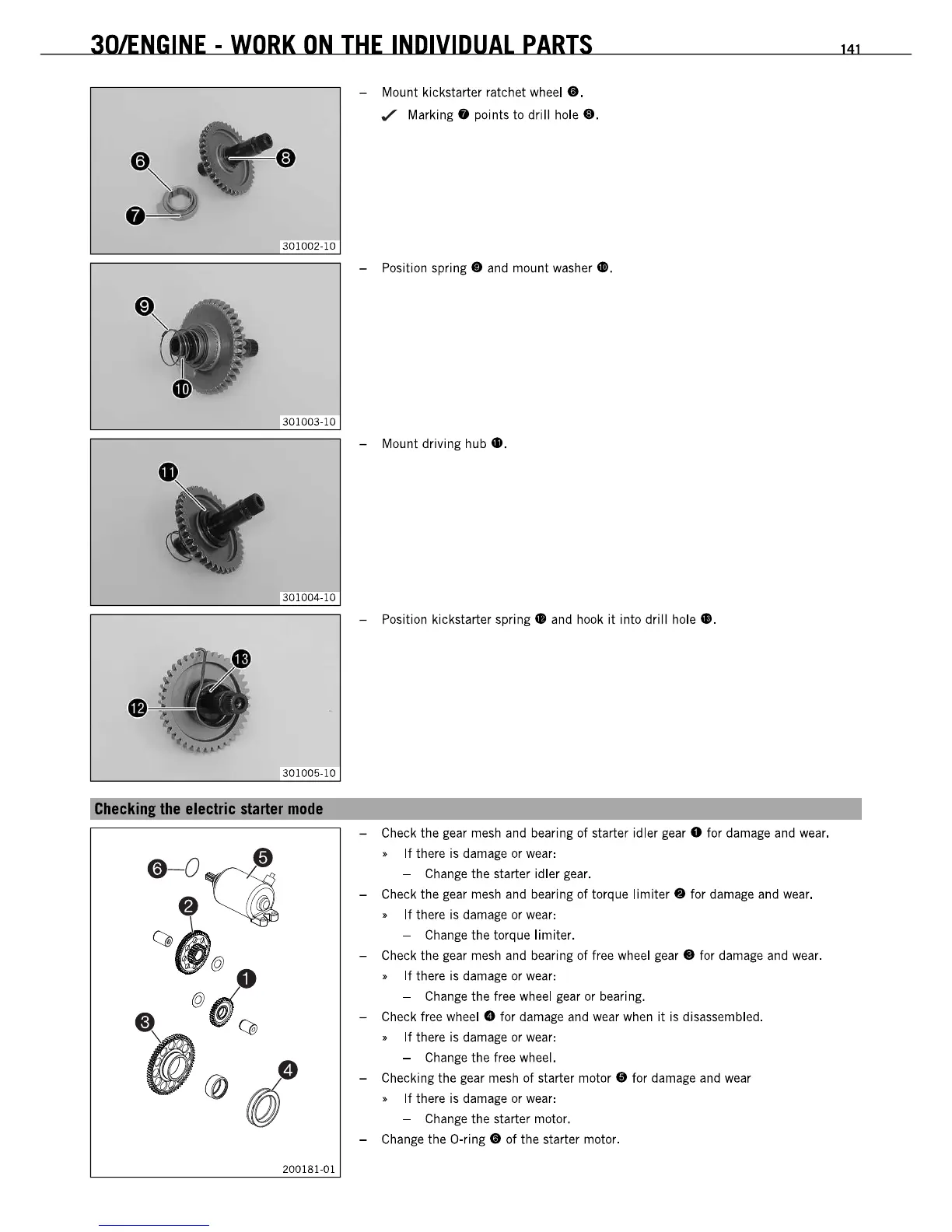

301ENGINE - WORK ON THE INDIVIDUAL PARTS
301002-10
301003-10
301004-10
30100&-10
Checkinalhe electric starblr mode
2001Bl-Ol
- Mount kickstarter ratchet wheel e.
,/ Marking e points to drill hole e.
- Position spri ng e and mou nt washer •.
- Mount driving hub e.
- Position kickstarter spring e and hook it into drill hole e.
- Check the gear mesh and bearing of starter idler gear 0 for damage and wear.
•
If there is damage or wear:
- Change the starter idler gear.
- Check the gear mesh and bearing of torque limiter
e for damage and wear.
• If there is damage or wear:
- Change the torque limiter.
- Check the gear mesh and bearing of free wheel gear
e for damage and wear.
•
If there is damage or wear:
- Change the free wheel gear or bearing.
- Check free
wheel. for damage and wear when it is disassembled.
• If there is damage or wear:
- Change the free wheel.
- Checking the gear mesh of starter
motor. for damage and wear
• If there is damage or wear:
- Change the starter motor.
- Change the O-ring
e of the starter motor.
141 301ENGINE - WORK ON THE INDIVIDUAL PARTS
301002-10
301003-10
301004-10
30100&-10
Checkinalhe electric starblr mode
2001Bl-Ol
- Mount kickstarter ratchet wheel e.
,/ Marking e points to drill hole e.
- Position spri ng e and mou nt washer •.
- Mount driving hub e.
- Position kickstarter spring e and hook it into drill hole e.
- Check the gear mesh and bearing of starter idler gear 0 for damage and wear.
•
If there is damage or wear:
- Change the starter idler gear.
- Check the gear mesh and bearing of torque limiter
e for damage and wear.
• If there is damage or wear:
- Change the torque limiter.
- Check the gear mesh and bearing of free wheel gear
e for damage and wear.
•
If there is damage or wear:
- Change the free wheel gear or bearing.
- Check free
wheel. for damage and wear when it is disassembled.
• If there is damage or wear:
- Change the free wheel.
- Checking the gear mesh of starter
motor. for damage and wear
• If there is damage or wear:
- Change the starter motor.
- Change the O-ring
e of the starter motor.
141
