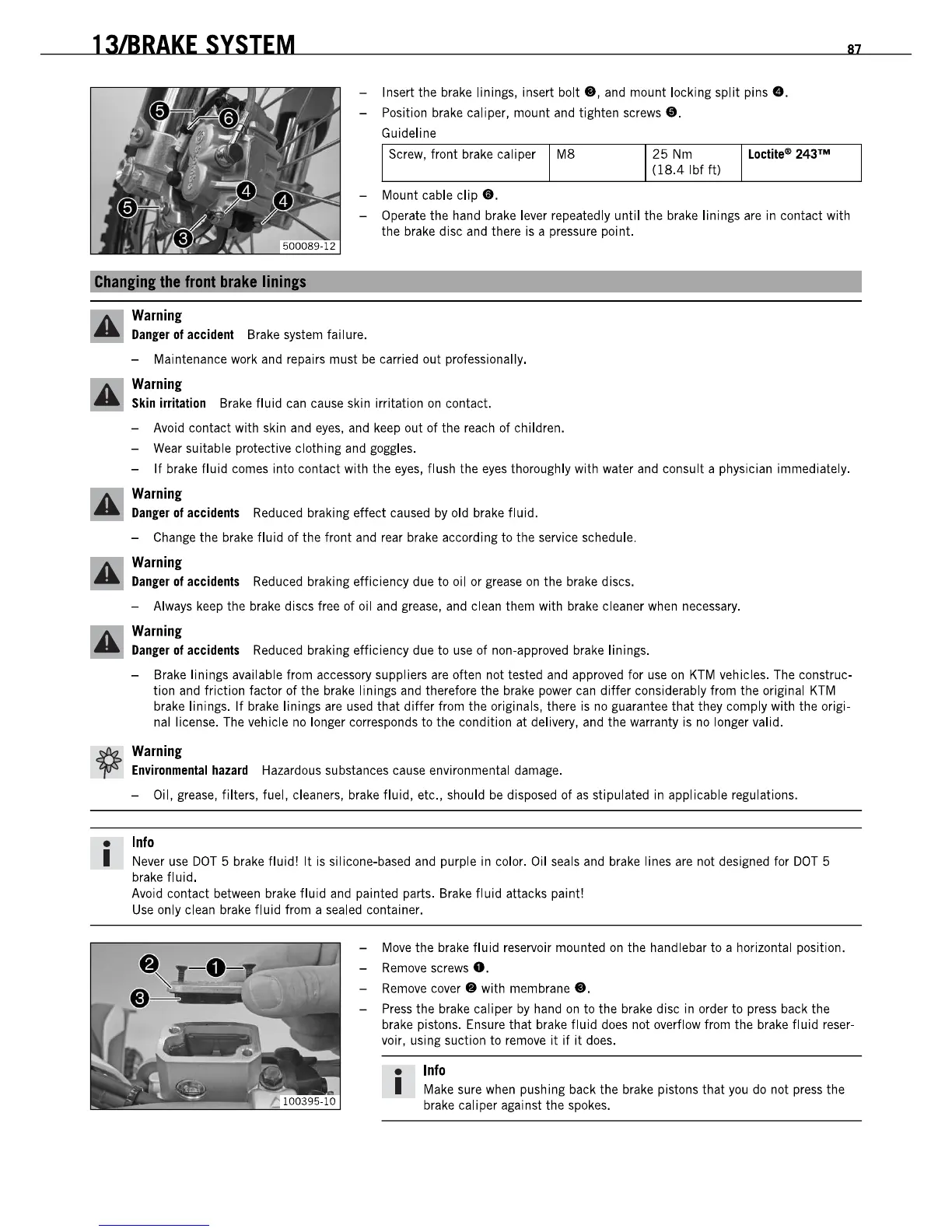

13/BRAKE SYSTEM
- Insert the brake linings, insert bolt ., and mount locking split pins •.
- Position brake caliper, mount and tighten screws •.
Guideline
Screw, front brake caliper M8
- Mount cable clip •.
25 Nm
(18.4 Ibf It)
Loctite- 243'"
87
- Operate the hand brake lever repeatedly until the brake linings are in contact with
the brake disc and there is a pressure point.
Cbanlinl the front brake linin~
Warning
Danger 01 accident Brake system failure.
- Maintenance work and repairs must be carried out professionally.
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
- Avoid contact with skin and
eyes, and keep out of the reach of children.
- Wear suitable protective clothing and goggles.
-
If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger 01 accidents Reduced braking effect caused by old brake fluid.
- Change the brake fluid
of the front and rear brake according to the service schedule.
Warning
Danller 01 accidents Reduced braking efficiency due to oil or grease on the brake discs.
- Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Danier 01 accidents Reduced braking efficiency due to use of non-approved brake linings.
- Brake linings available from accessory suppliers are often not tested and approved for use
on KTM vehicles. The construc-
tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original
KTM
brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi-
nal license. The vehicle
no longer corresponds to the condition at delivery, and the warranty is no longer valid.
Warning
Environmental hazard Hazardous substances cause environmental damage.
- Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
• Info
I Never use DOT 5 brake fluid! It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5
brake fluid.
Avoid contact between brake fluid and painted parts. Brake
fluid attacks paint!
Use only clean brake fluid from a sealed container.
-
Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
- Remove screws
•.
- Remove cover. with membrane •.
- Press the brake caliper by hand on to the brake disc in order to press back the
brake pistons. Ensure that brake fluid does not overflow from the brake fluid reser-
voir, using suction to remove it if it does.
• Info
I Make sure when pushing back the brake pistons that you do not press the
brake caliper against the spokes.
13/BRAKE SYSTEM
- Insert the brake linings, insert bolt ., and mount locking split pins •.
- Position brake caliper, mount and tighten screws •.
Guideline
Screw, front brake caliper M8
- Mount cable clip •.
25 Nm
(18.4 Ibf It)
Loctite- 243'"
87
- Operate the hand brake lever repeatedly until the brake linings are in contact with
the brake disc and there is a pressure point.
Cbanlinl the front brake linin~
Warning
Danger 01 accident Brake system failure.
- Maintenance work and repairs must be carried out professionally.
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
- Avoid contact with skin and
eyes, and keep out of the reach of children.
- Wear suitable protective clothing and goggles.
-
If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
Warning
Danger 01 accidents Reduced braking effect caused by old brake fluid.
- Change the brake fluid
of the front and rear brake according to the service schedule.
Warning
Danller 01 accidents Reduced braking efficiency due to oil or grease on the brake discs.
- Always keep the brake discs free of oil and grease, and clean them with brake cleaner when necessary.
Warning
Danier 01 accidents Reduced braking efficiency due to use of non-approved brake linings.
- Brake linings available from accessory suppliers are often not tested and approved for use
on KTM vehicles. The construc-
tion and friction factor of the brake linings and therefore the brake power can differ considerably from the original
KTM
brake linings. If brake linings are used that differ from the originals, there is no guarantee that they comply with the origi-
nal license. The vehicle
no longer corresponds to the condition at delivery, and the warranty is no longer valid.
Warning
Environmental hazard Hazardous substances cause environmental damage.
- Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
• Info
I Never use DOT 5 brake fluid! It is silicone-based and purple in color. Oil seals and brake lines are not designed for DOT 5
brake fluid.
Avoid contact between brake fluid and painted parts. Brake
fluid attacks paint!
Use only clean brake fluid from a sealed container.
-
Move the brake fluid reservoir mounted on the handlebar to a horizontal position.
- Remove screws
•.
- Remove cover. with membrane •.
- Press the brake caliper by hand on to the brake disc in order to press back the
brake pistons. Ensure that brake fluid does not overflow from the brake fluid reser-
voir, using suction to remove it if it does.
• Info
I Make sure when pushing back the brake pistons that you do not press the
brake caliper against the spokes.
