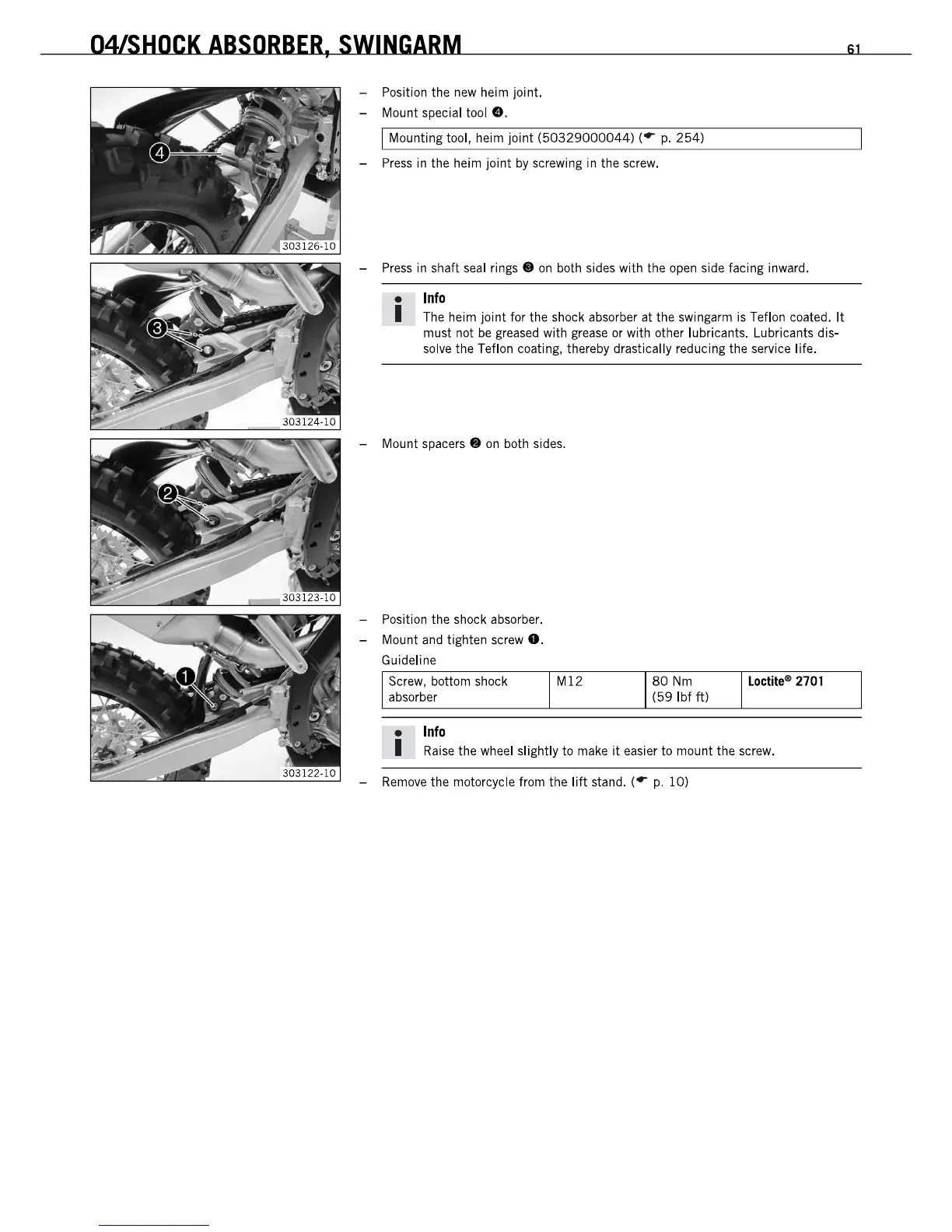

04LSHOCK
ABSORBER,
SWINGARM
- Position the
new
heim joint.
- Mount special tool
e.
I Mounting tool, heim
joint
(50329000044)
(
--
p.
254)
-
Press
in the heim joint
by
screwing in the screw.
-
Press
in shaft seal
rings.
on
both sides with the open side facing inward.
•
Info
I The heim joint for the shock absorber at the swingarm is Teflon coated.
It
must not
be
greased with grease or with other lubricants. Lubricants dis-
solve the Teflon coating, thereby drastically reducing the service life.
- Mount
spacers.
on
both sides.
- Position the shock absorber.
- Mount and tighten
screw
•.
Guideline
Screw, bottom shock
absorber
•
Info
M12
80
Nm
(59
Ibf
ft)
Loctitee
2701
I
Raise
the wheel slightly to make
it
easier
to
mount the screw.
-
Remove
the motorcycle from the
lift
stand. (
--
p.
10)
61
04LSHOCK
ABSORBER,
SWINGARM
- Position the
new
heim joint.
- Mount special tool
e.
I Mounting tool, heim
joint
(50329000044)
(
--
p.
254)
-
Press
in the heim joint
by
screwing in the screw.
-
Press
in shaft seal
rings.
on
both sides with the open side facing inward.
•
Info
I The heim joint for the shock absorber at the swingarm is Teflon coated.
It
must not
be
greased with grease or with other lubricants. Lubricants dis-
solve the Teflon coating, thereby drastically reducing the service life.
- Mount
spacers.
on
both sides.
- Position the shock absorber.
- Mount and tighten
screw
•.
Guideline
Screw, bottom shock
absorber
•
Info
M12
80
Nm
(59
Ibf
ft)
Loctitee
2701
I
Raise
the wheel slightly to make
it
easier
to
mount the screw.
-
Remove
the motorcycle from the
lift
stand. (
--
p.
10)
61
