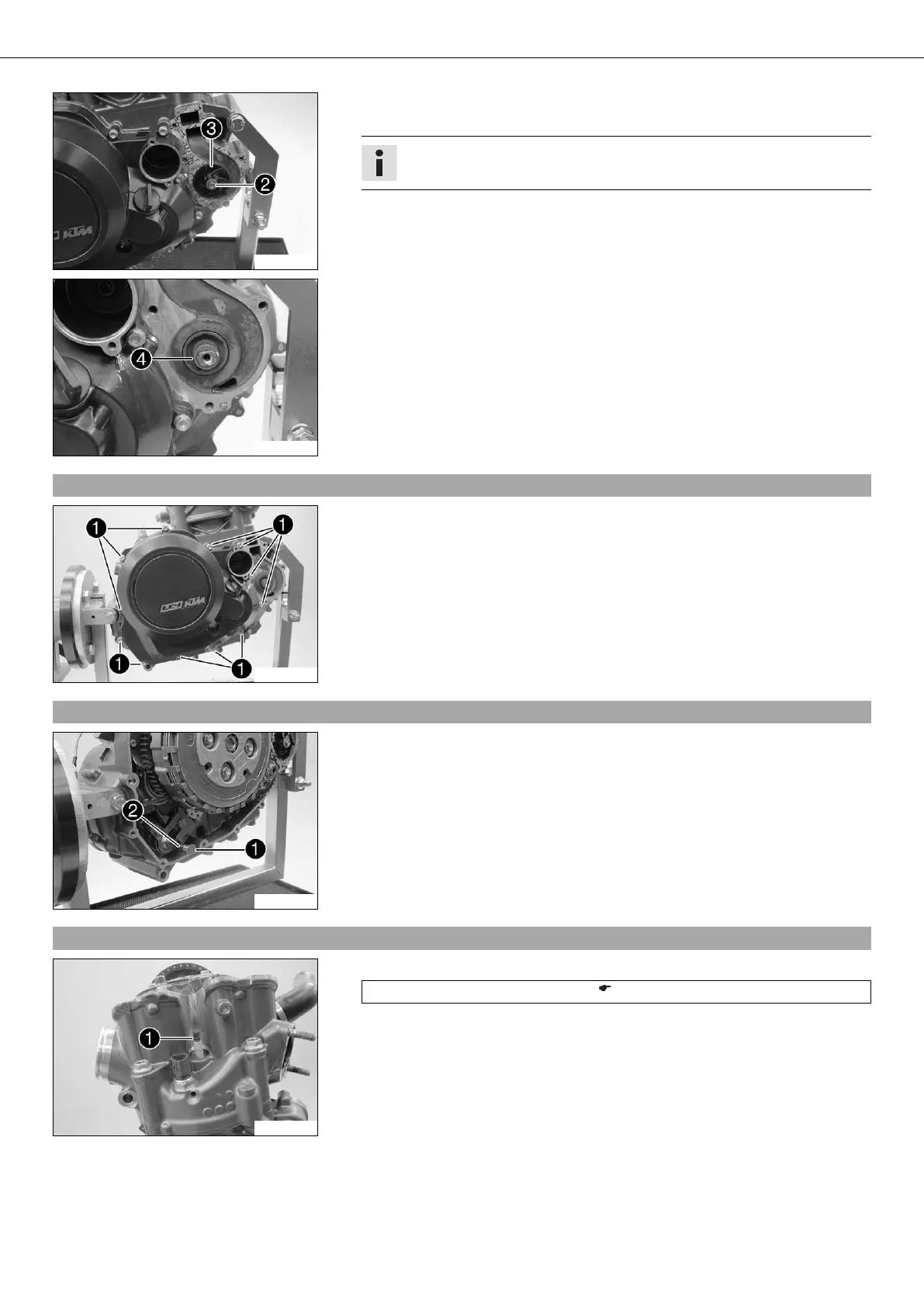

30/DISASSEMBLING THE ENGINE 102

300013-10

– Remove screw . Take off the water pump wheel .

– Take off the water pump cover seal.

Info

Do not lose the centering pins.

300014-10

– Remove the shaped washer .

18.12Removing clutch cover

300015-10

– Remove screws . Take off the clutch cover.

– Take off the dowels. Remove the clutch cover seal.

18.13Removing spacer and spring

300154-10

– Remove the spacer  and spring  of the shift shaft.

18.14Removing spark plug

300016-10

– Remove the spark plug using the special tool .

Spark plug wrench (75029172000) ( p. 219)
