14/LIGHT SYSTEM, INSTRUMENTS 90

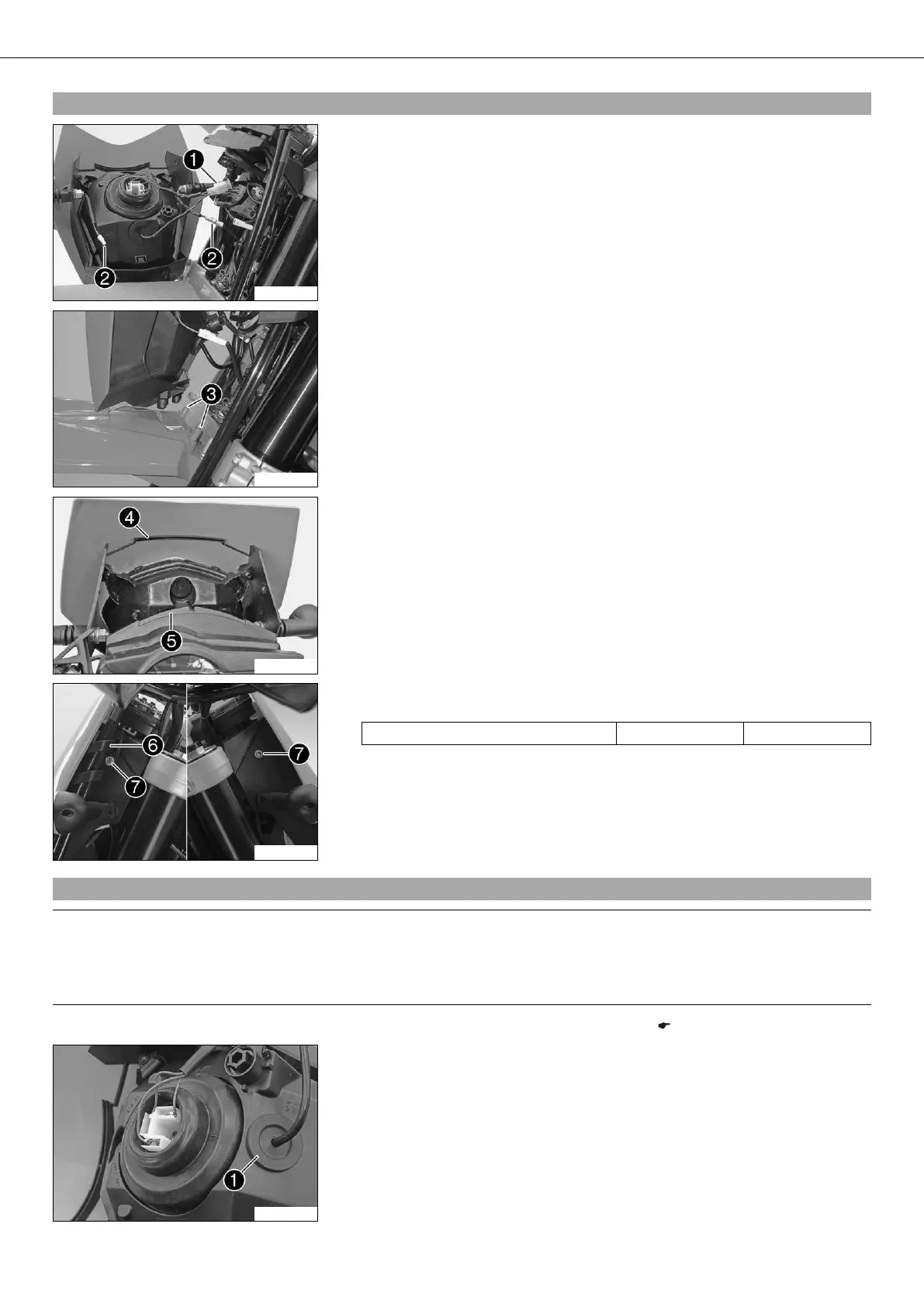

16.9Installing the headlight mask with the headlight
100294-11
– Connect the connectors of headlight  and flasher lights .
– Check lighting function.
100295-10
– Remove the cloth from the fender, attach the headlight mask to points  on the
fender and swing it up to the steering head.
700543-01
– Position groove  on counterpiece .
100296-10
– Position brake-hose guide . Mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
16.10Changing the parking light bulb
Note
Damage to reflector Reduced luminance.
– Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
– Remove the headlight mask with the headlight. ( p. 89)
600610-12
– Remove rubber cap .
