30/ENGINE 95
300222-10

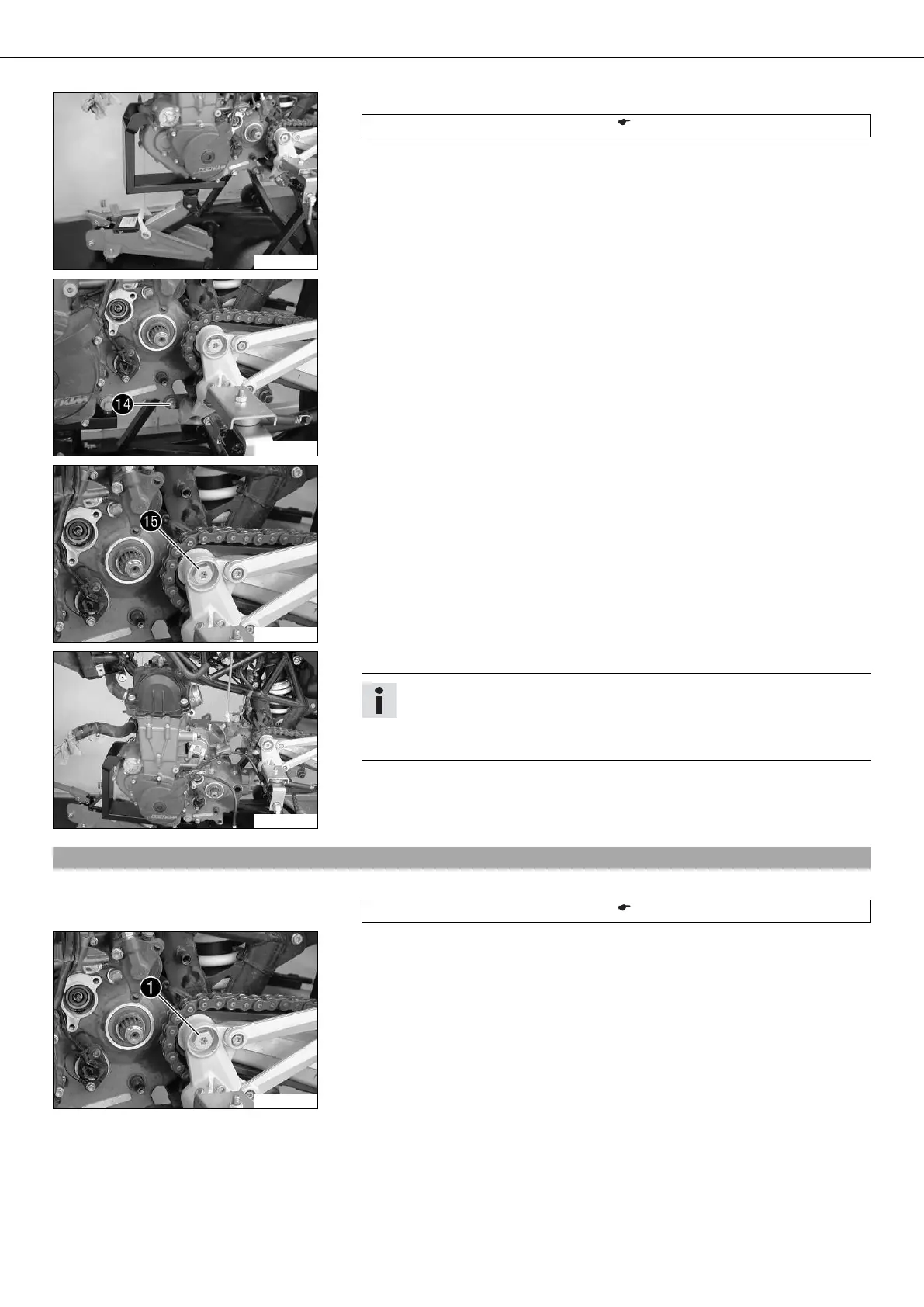

– Position the floor jack under the engine and fix it using the special tool.
Floor jack attachment (75029055000) ( p. 218)
300223-10
– Remove nut of the lower engine bracket. Remove the screw.
300225-10
– Remove screw of the swingarm pivot.
– Remove the swingarm pivot.
300224-10
– Lower the engine.
Info
You should have an assistant for this step.
Make sure that the engine is sufficiently secured against falling over.
Protect the frame and attachments from damage.
17.2Installing the engine
– Raise the engine onto the special tool and fix it.
Floor jack attachment (75029055000) ( p. 218)
300225-11
– Position the engine in the frame.
– Mount swingarm pivot .
– Mount the screw of the swingarm pivot but do not tighten yet.
