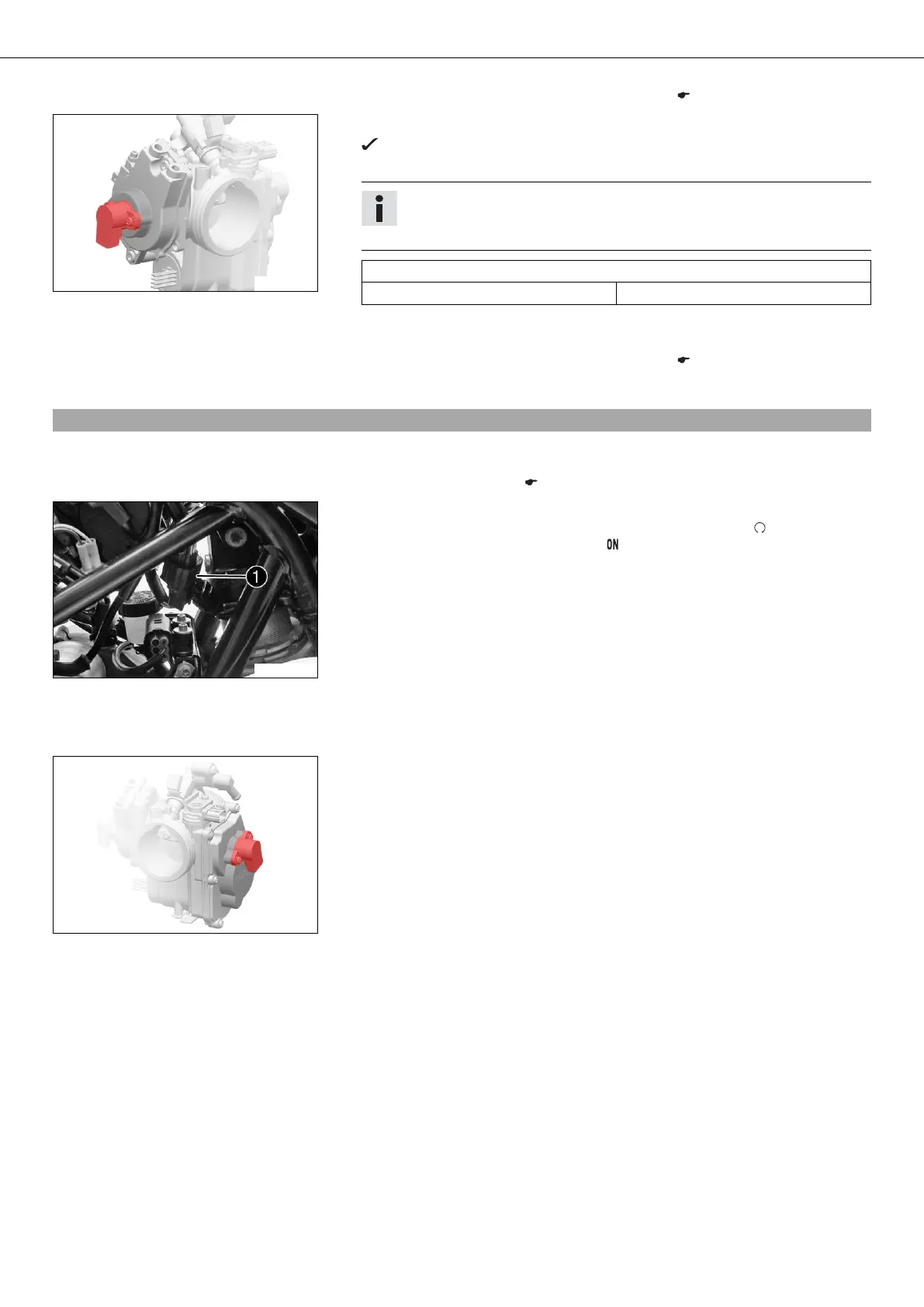

41/THROTTLE VALVE BODY 166
– Adjust the basic setting of the motor drive. ( p. 166)
400537-51
– Use "Continue" to start the "Checking the position of the throttle grip sensor" menu.
The motor drive keeps the throttle valve in the emergency running position.
– Check the voltage value.
Info
The "Continue" button only appears if the measured value equals the set-
point value.
Throttle grip sensor
Voltage "APAD" 0.70… 0.74 V
» If the displayed value is not equal to the setpoint value:
– Close the menu with "Exit".
– Adjust the basic setting of the motor drive. ( p. 166)
– Close the menu with "Continue".
25.2Adjusting the basic setting of the motor drive
Condition
The diagnostics tool is connected.
– Remove the air filter box. ( p. 55)
601136-10
– Disconnect the connector of the motor drive DR .
– Switch on the ignition by turning the ignition key in the position
(690 Enduro EU, 690 Enduro AUS/UK) (690 Enduro USA).
– Select model.
– Select "ECU Diagnostics".
– Highlight "EPT throttle motor drive control LC4" control unit.
– Press "Continue".
– Select "Adjustment".
– "Please enter the password:"
– Press "Continue".
– Select "Adjusting the basic setting of the motor drive".
– Press "Continue".
400786-60
– Read the information page in the KTM diagnostics tool and use "Continue" to open
the "Adjusting the position of the throttle position sensor in circuit A" menu.
