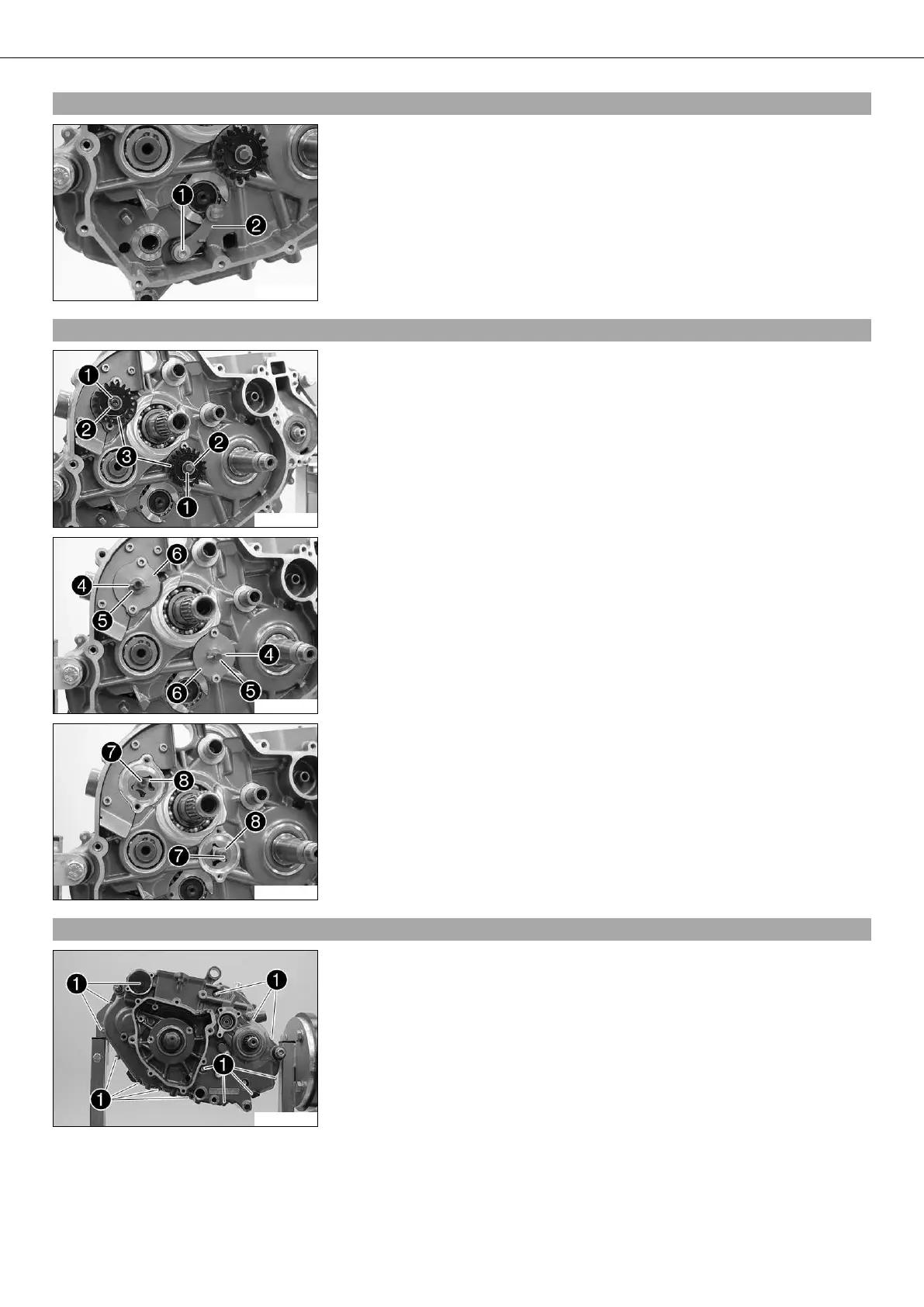

30/DISASSEMBLING THE ENGINE 108
18.28Removing locking lever
300069-10
– Remove screw .
– Take off locking lever  with the sleeve and spring.
18.29Removing oil pumps
300070-10
– Remove the lock washers  and normal washers  from both oil pumps.
– Take off the oil pump toothed wheels .
300071-10
– Remove the pins  and washers .
– Remove screws. Take off the oil pump cover .
300072-10
– Remove both oil pump shafts  with internal rotors .
– Take the external rotors out of the engine case.
18.30Removing left engine case
300075-10
– Remove screws .
– Swing the left engine case up and remove the nut or screw of the engine holder.
