KTM 690 ENDURO EU 2008 User Manual

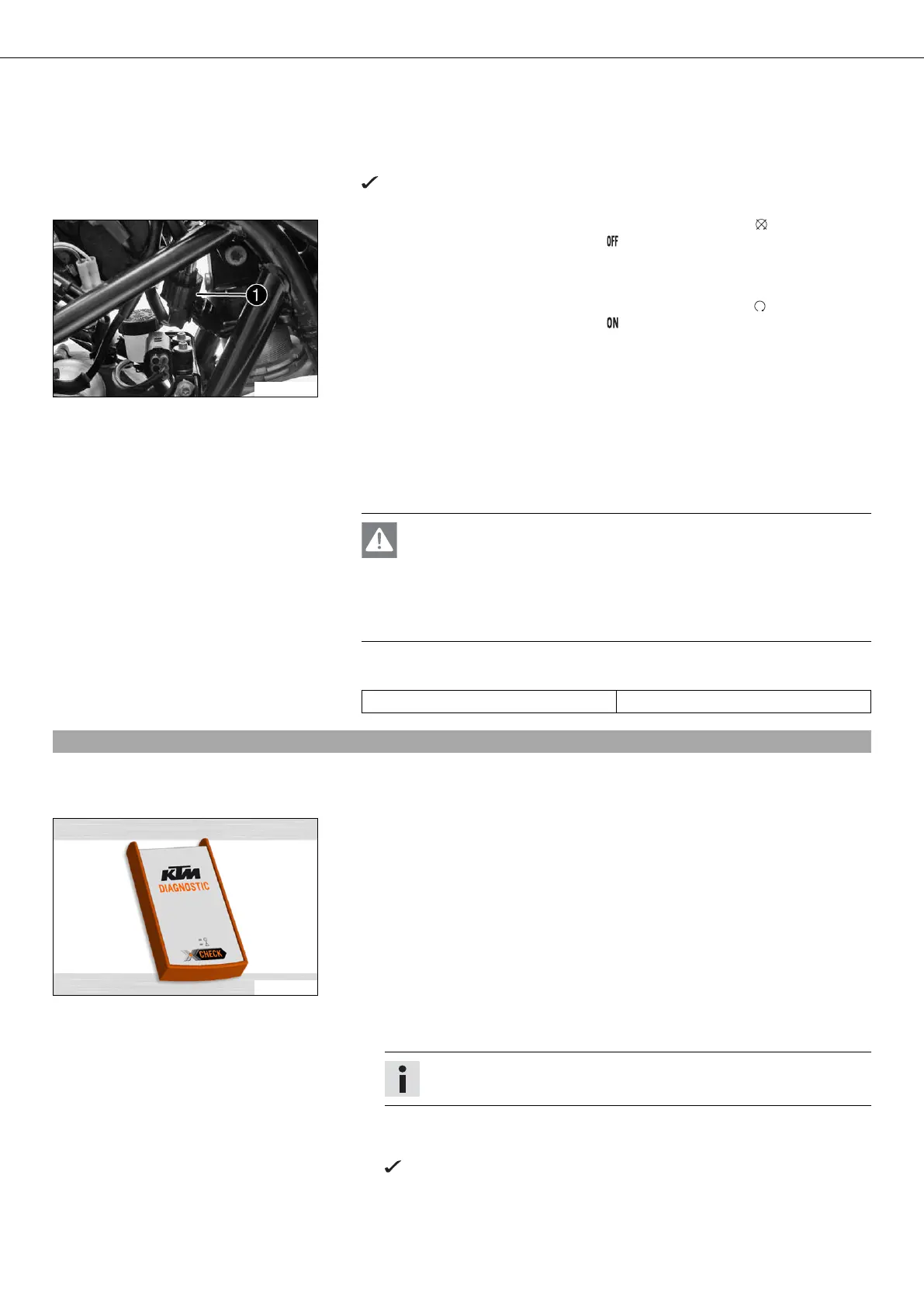

41/THROTTLE VALVE BODY 169
– Fix screws  with locking varnish.
– Press "Continue".
– Read the information page on the KTM diagnostics tool and, using "Continue", start
the "ECU Reset" menu.
The control unit is reset.
– Complete the procedure with "Continue".
601136-10
– Switch off the ignition by turning the ignition key in the position
(690 Enduro EU, 690 Enduro AUS/UK) (690 Enduro USA).
– Plug in the connector of the motor drive DR .
– Switch to the main menu.
– Switch on the ignition by turning the ignition key in the position
(690 Enduro EU, 690 Enduro AUS/UK) (690 Enduro USA).
– Select model.
– Select "ECU Diagnostics".
– Highlight "EPT throttle motor drive control LC4" control unit.
– Press "Continue".
– "Read trouble code" selected.
– Complete the procedure with "Back".
– Select "Delete trouble codes".
– Complete the procedure with "Back".
Danger
Danger of poisoning Exhaust gases are poisonous and inhaling them may
result in unconsciousness and/or death.
– When running the engine, always make sure there is sufficient ventila-
tion, and do not start or run the engine in an enclosed space without an
effective exhaust extraction system.
– Start the engine and perform an initialization run.
Guideline
Initialization run 15 min
25.3Flashing the EFI control unit and/or the EPT control unit
Condition
The ignition is on.
The diagnostics tool is connected and running.
400687-60
EFI control unit
– Select model.
– Select "ECU Diagnostics".
– Highlight the "Injection management EFI LC4" control unit.
– Press "Continue".
– Select "ECU Flashing".
– "Please enter the password:"
– Press "Continue".
– Read the safety instructions and create the necessary preliminary conditions.
– Confirm the instructions by clicking on "OK".
– Press "Select file" and select a new mapping.
Info
"The BLZ file and the exhaust system must match!"
– Press the "ECU flash process" button.
– Read the prompt and confirm with "OK".
The new mapping is loaded.
– Switch to the main menu.
