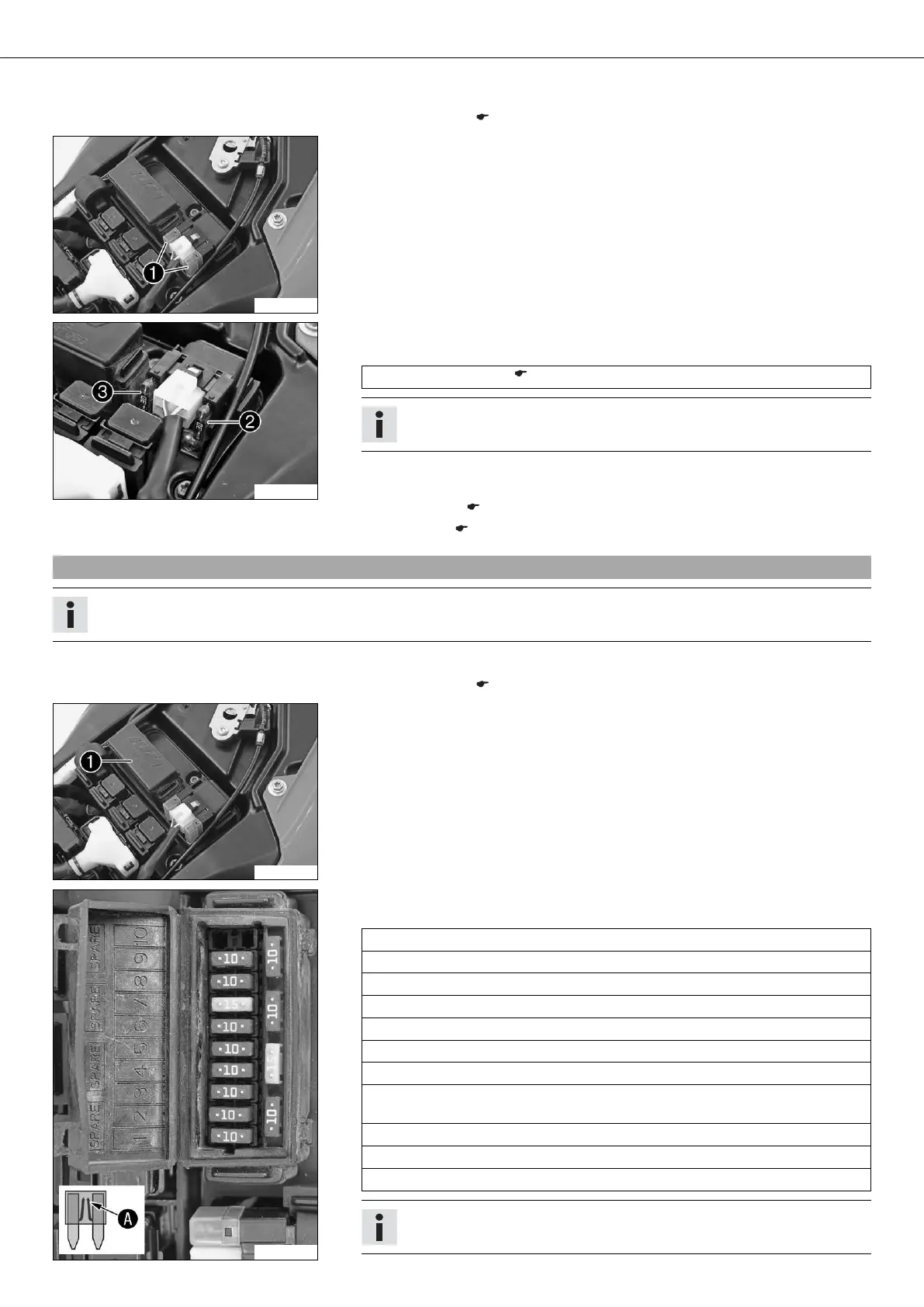

11/WIRING HARNESS, BATTERY 75
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 58)
600604-10
– Remove protection covers .
600605-10
– Remove a defective main fuse with needle nose pliers.
– Install a new main fuse.
Fuse (58011109130) ( p. 178)
Info
A reserve fuse is located in the starter relay.
– Check that the electrical equipment is functioning properly.
– Mount the protection covers.
– Mount the seat. ( p. 58)
– Set the clock. ( p. 87)
14.8Changing fuses of individual power consumers
Info
The fuse box containing the fuses of individual power consumers is located under the seat.
– Switch off all power consumers and switch off the engine.
– Remove the seat. ( p. 58)
600604-11
– Open fuse box cover .
600606-10
– Remove the defective fuse.
Guideline
Fuse 1 - 10A - ignition, combination instrument
Fuse 2 - 10A - clock, ignition (EFI control unit)
Fuse 3 - 10A - throttle valve control unit
Fuse 4 - 10A - fuel pump
Fuse 5 - 10A - radiator fan
Fuse 6 - 10A - horn, brake light, turn signal
Fuse 7 - 15A - high beam, low beam, parking light, tail light, license plate lamp
Fuse 8 - 10A - for supplementary equipment (accessories connected with igni-
tion switch)
Fuse 9 - 10A - for accessories (permanent positive)
Fuse 10 - not used
Fuse SPARE - 10A/15A - spare fuses
Info
A defective fuse is shown by a burned-out fuse wire .
