KTM 690 ENDURO EU 2008 User Manual

32/CLUTCH 153

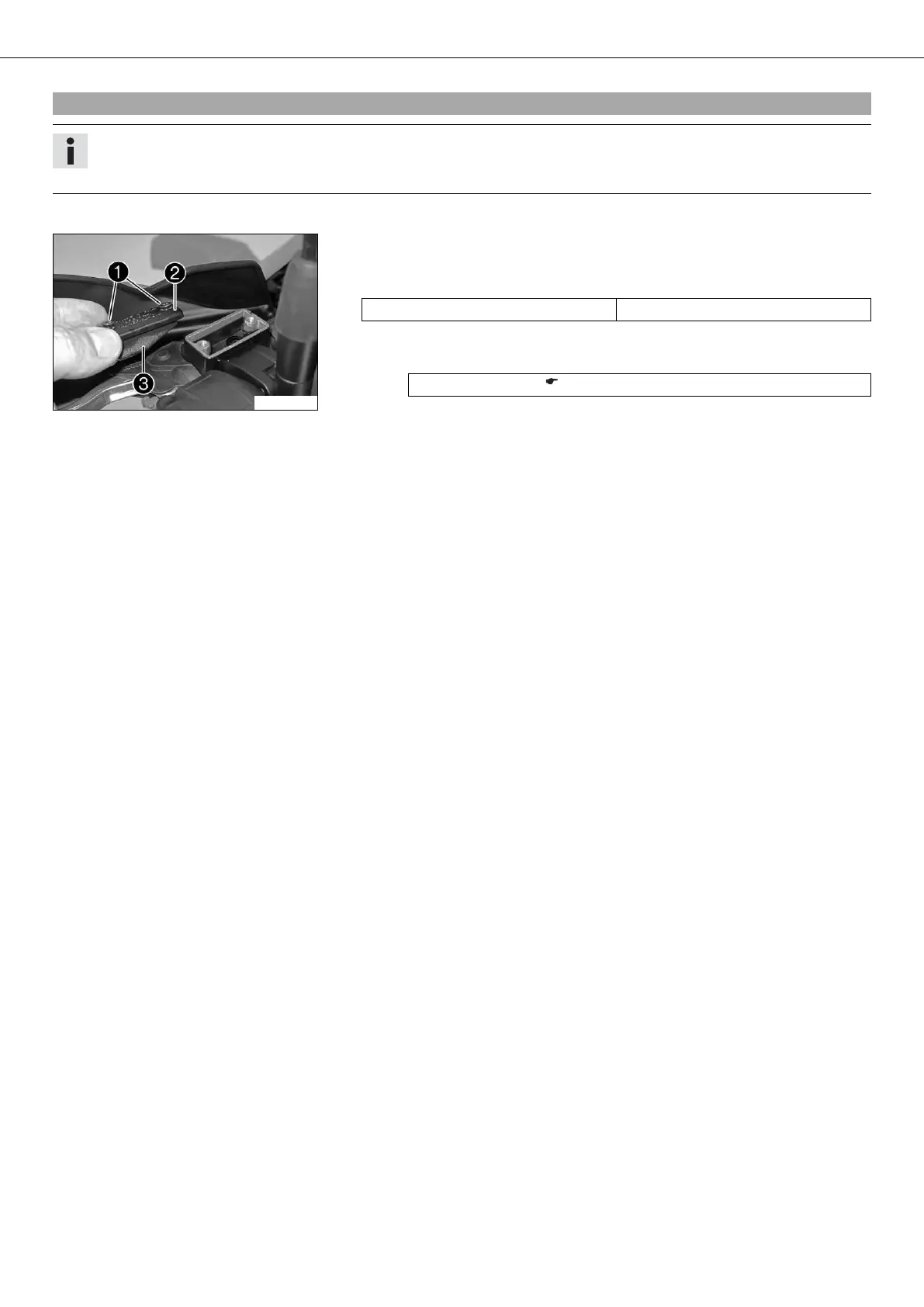

21.1Checking/rectifying the fluid level of the hydraulic clutch
Info
The fluid level rises with increasing wear of the clutch lining disc.
Do not use brake fluid.
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
100281-10
– Remove screws .
– Remove cover  with membrane .
– Check the fluid level.
Fluid level under top level of container 4 mm (0.16 in)
» If the level of the coolant does not meet specifications:
– Correct the fluid level of the hydraulic clutch.
Hydraulic fluid (15) ( p. 209)
– Position the cover with the membrane. Mount and tighten the screws.
